Gearcase
Shifter, Bearing and Seal Servicing
14
ing housing. Apply Triple-Guard grease to seal
lips.
Propeller Shaft Bearing Housing
Service

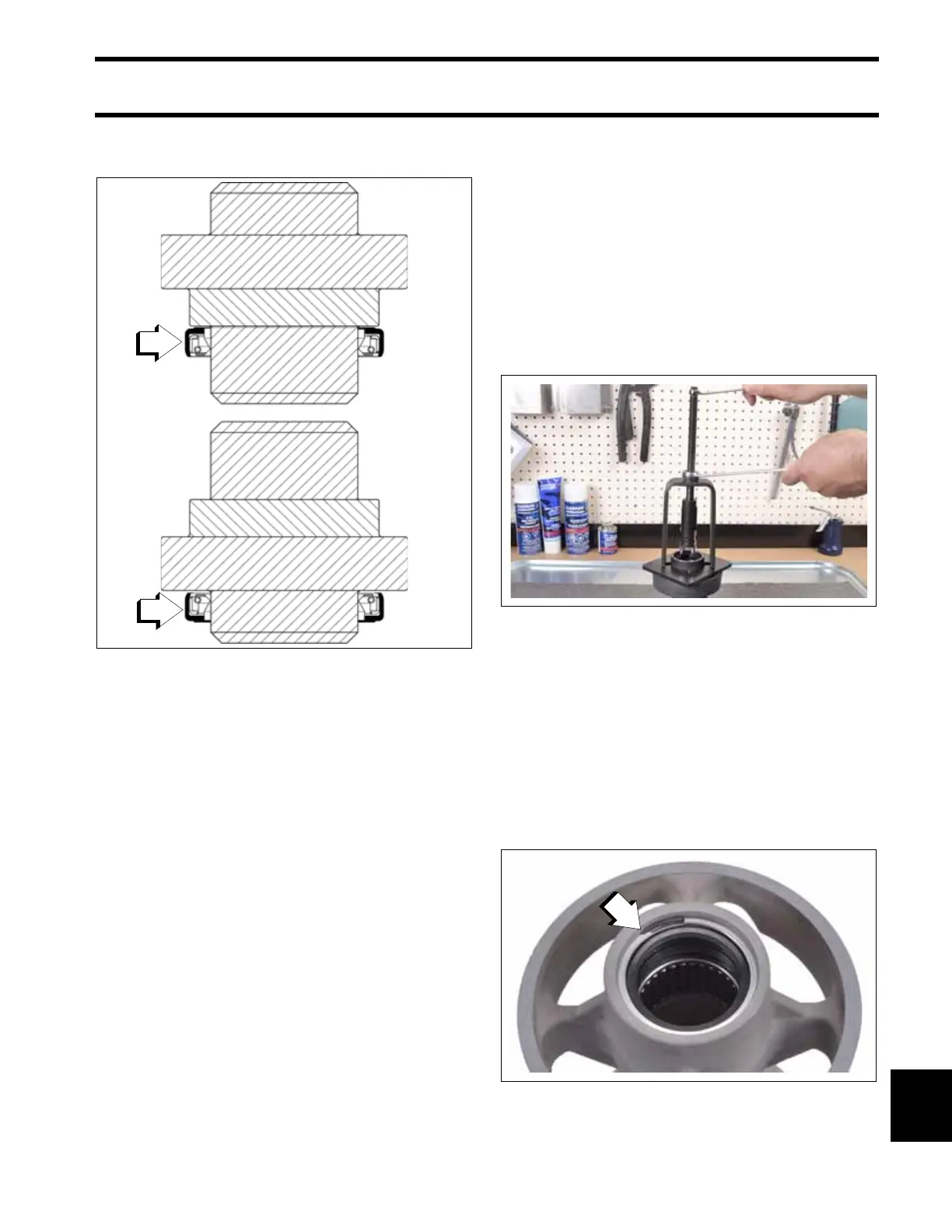

Rear Seal Removal - Early Models
Remove seals using Puller Bridge, P/N 432127,
and Small Puller Jaws, P/N 432131. Position the
plate on top of the housing to support the bridge,
and tighten jaws securely behind the inner seal.
If necessary, use an electric heat gun to warm the
housing to aid in seal removal.
Rear Seal Removal - Late Models
Late models use a retaining ring to improve seal
retention.
Insert the blade of a small screw driver between
the notch in the retaining ring and the bearing
housing. Turn the screw driver to move the end of
the retaining ring from its retaining groove. Use a
curved pick to work the snap ring up from the
retaining groove. Remove the snap ring.
1. Inner seal
2. Outer seal
009513
009502
1. Retaining ring notch
009593
