BRP Evinrude E-TEC G2 - Cooling Hose Routing Diagram - Top

Cooling System
Water Flow and Hose Routing Diagrams
215
9

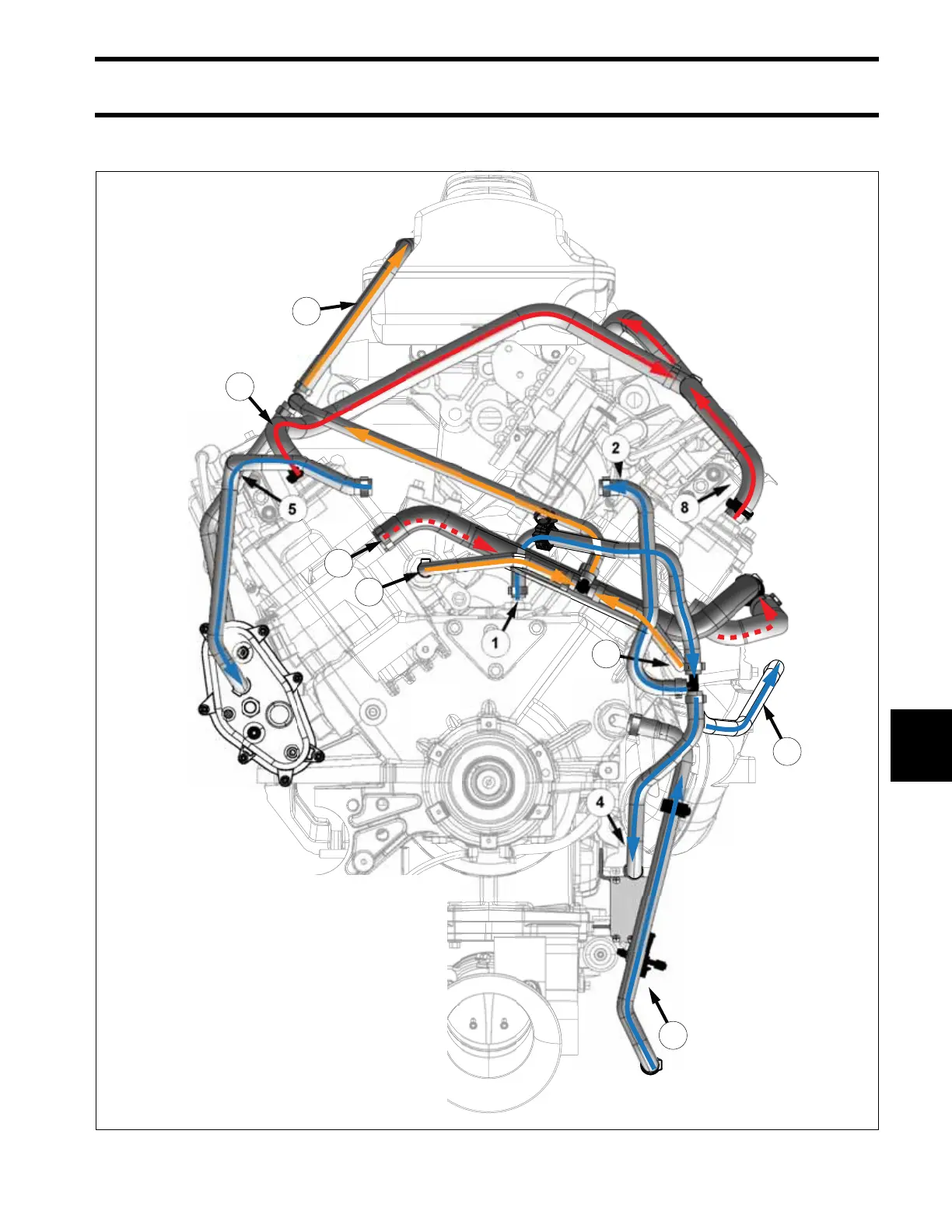

Cooling Hose Routing Diagram - Top
5
2
1
7
8
6
3
4
6
8
10
9
009258
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
Water supply from filter to EMM, vapor
separator and DPS module
Water supply to EMM & vapor separator
Water to exhaust cooling (Non-DPS models)
Water to DPS module & exhaust cooling
Water from EMM to vapor separator
Block vent
Water from EMM & vapor separator and
block vent to overboard indicator
Water from thermostats to exhaust adapter
Water from cylinder heads to pressure relief
valve
Flush port (water inlet)
