381
Gearcase
Shifter, Bearing and Seal Servicing
14
the following components of the Pinion Bearing
Remover and Installer, P/N 5005927, as shown:
IMPORTANT: Spacers are different sizes and
cannot be interchanged.
Apply Needle Bearing grease to the needle bear-
ings and insert them into the bearing case.
Place the bearing on the installer tool with the let-
tered side of the bearing facing the top of the
gearcase. Use Needle Bearing grease to hold the
bearing on the tool.
IMPORTANT: The pinion bearing is tapered so
that, when installed correctly, its shape compen-
sates for stresses in the gearcase and allows full
bearing contact. Whenever a gearcase is disas-
sembled, the pinion bearing should be checked to
ensure that it has been installed with the lettering
facing up.
Insert the tool with the bearing into the gearcase.
Drive the bearing into the gearcase until the
washer on the tool contacts the spacer.
Remove the tool.
Propeller Shaft Disassembly
Insert a suitable tool under one end of the clutch
dog spring and remove it from its groove by
unwrapping it from around the clutch dog. Dis-
card the spring.
Push the pin out of the clutch dog. Remove all
parts.

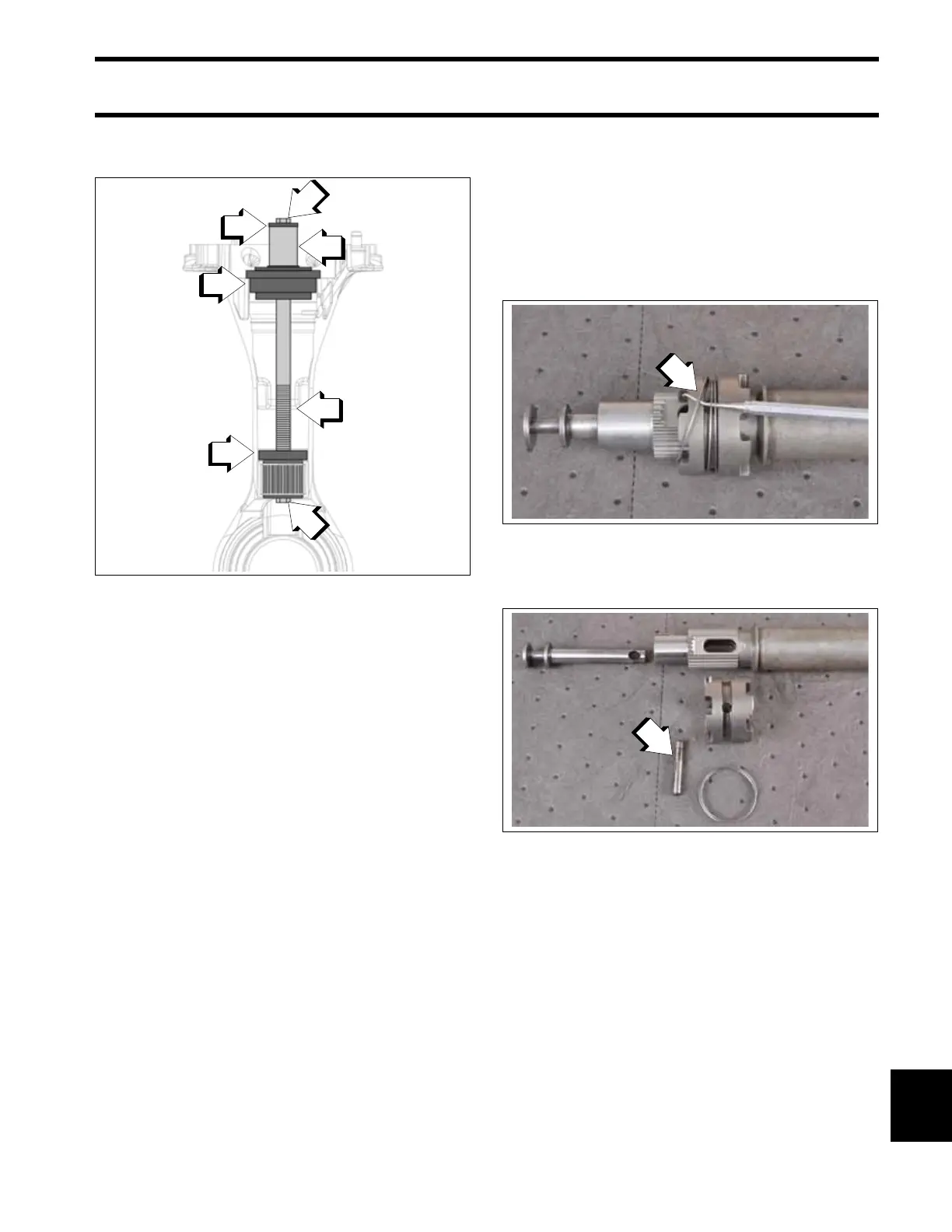

Pinion Bearing Installer Components
009495
1. 1/4-20 X 1/2 in. Hex head screw
2. 1 in. O.D. Flat washer
3. Spacer; P/N 326585
4. Plate and Bearing P/N 391260
5. Rod P/N 326582
6. Installer/Remover, P/N 350958
7. 1/4-20 X 1 1/4 in. Hex head screw
1. Clutch dog spring
009520
1. Pin
009521
