71

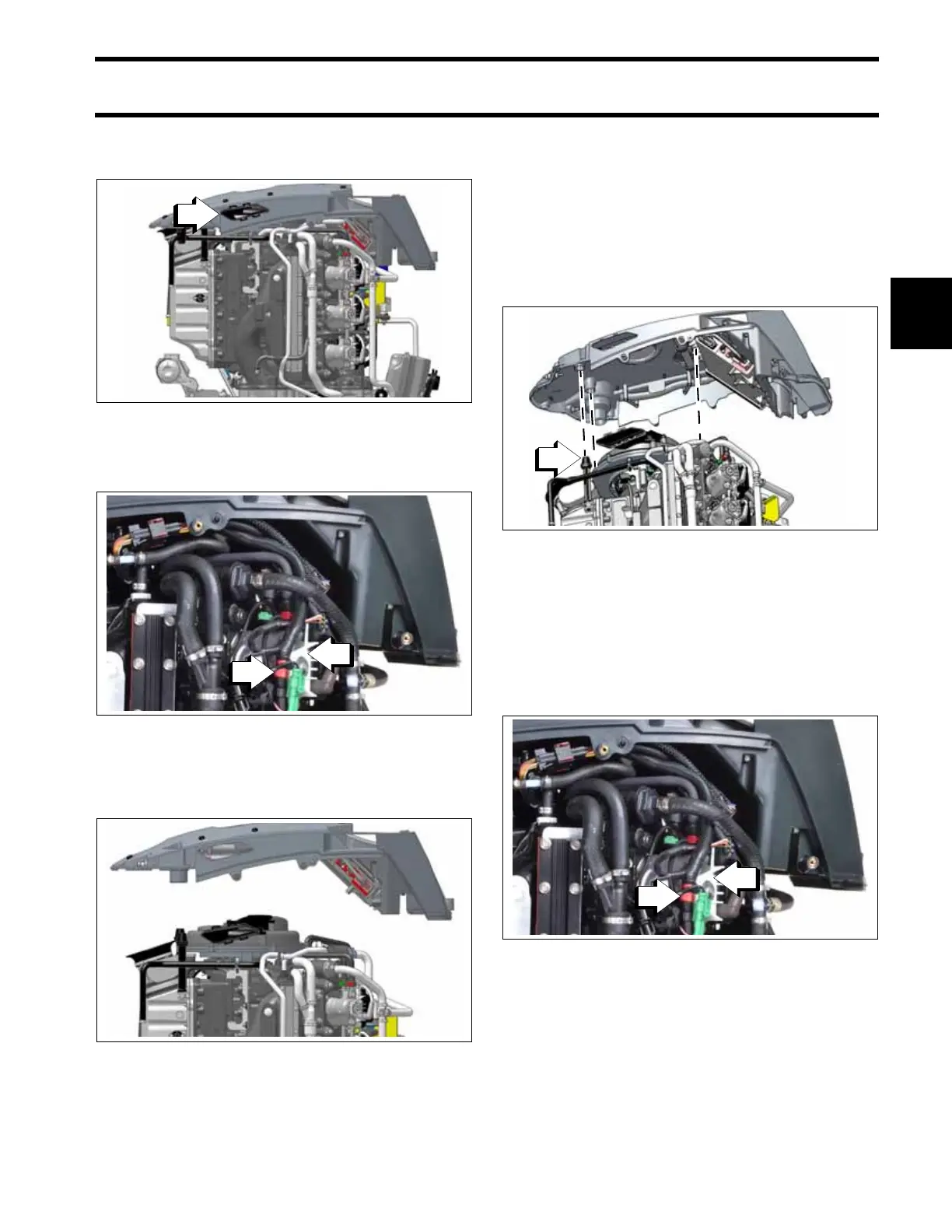

Engine Cover and Frame Service
Frame Installation
3
Push the air duct inward to remove it from the
center frame.
Remove the tie strap from each ignition coil
bracket.
Remove the center frame (wire harness not
shown).
Frame Installation
Center Frame Installation
Locate the center frame on the powerhead
mounts.
Align the air duct extension opening with the cen-
ter frame opening.
Align the red tape marker on the port side of the
harness to the upper ignition coil bracket as
shown. Secure the harness to each ignition coil
bracket with tie strap, P/N 320107.
IMPORTANT: Hand tighten the tie strap. Do not
use a tie strap gun.
Repeat on starboard side.
1. Air duct 009296
1. Tie strap
2. Fuel injector mounts
009299
009297
1. Center frame mounts (port side shown) 009298
1. Red tape
2. Fuel injector mounts
009299
