BRP Evinrude E-TEC G2 - Cooling Hose Routing Diagram - Starboard

Cooling System
Water Flow and Hose Routing Diagrams
213
9

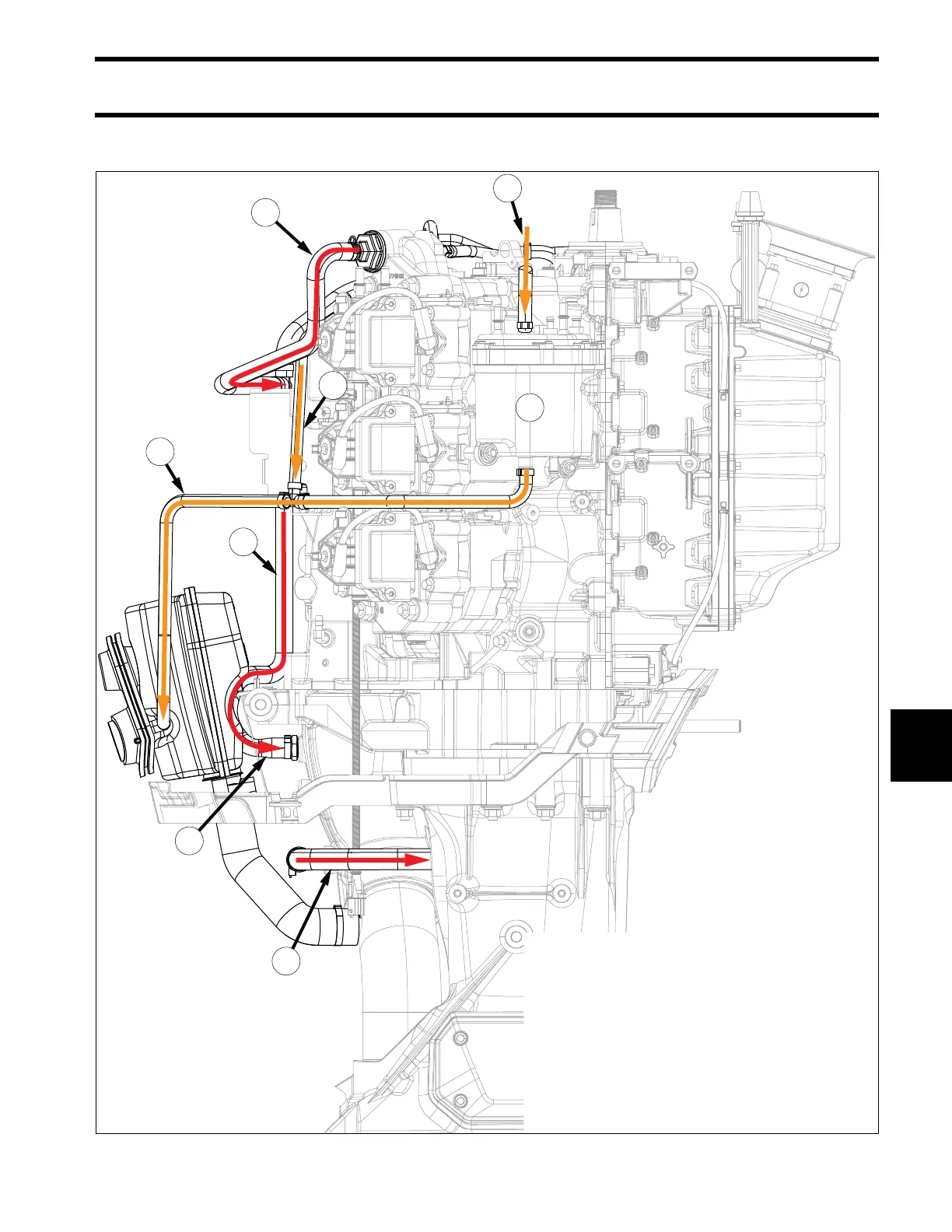

Cooling Hose Routing Diagram - Starboard
6
4
7
3
5
1
2
5
009256
1.
2.
3.
4.
5.
6.
7.
Water from EMM, to vapor separator
Vapor separator
Water from block vents
Water from EMM, vapor separator and block
vents to overboard indicator
Water from thermostats to exhaust adapter
Water from thermostats to exhaust adapter
(lower hose)
Water from exhaust adapter (rear) to
exhaust housing
