30
Routine Service
Rigging Information
2. Install the 3.5 inch Air Duct Plug, P/N 357310,
to help cool the stator.
3. Install the 4.0 inch Center Frame Plug,
P/N 356050, and the 2.0 inch Timing Pointer
Plug, P/N 356468, to provide correct air flow to
the engine.
Rigging Information
Rigging related information in this section sup-
ports re-installation after completing service pro-
cedures.
Use the current Evinrude E-TEC G2 Installation
and Predelivery Guide for complete installation
details if installing a new engine package.
Rigging Center
Evinrude E-TEC 74° V6 models utilize a central
rigging center. All buss cables, hydraulic steering
hoses, fuel and oil hoses and related rigging enter
the rigging center through a cable entryway.
The cable entryway is configured for starboard
cable entry but can be adapted for port cable entry
if needed.
Remove the two lower screws, then remove the
two upper screws (front) retaining the engine
cover.
Remove the front engine cover to access the rig-
ging center.

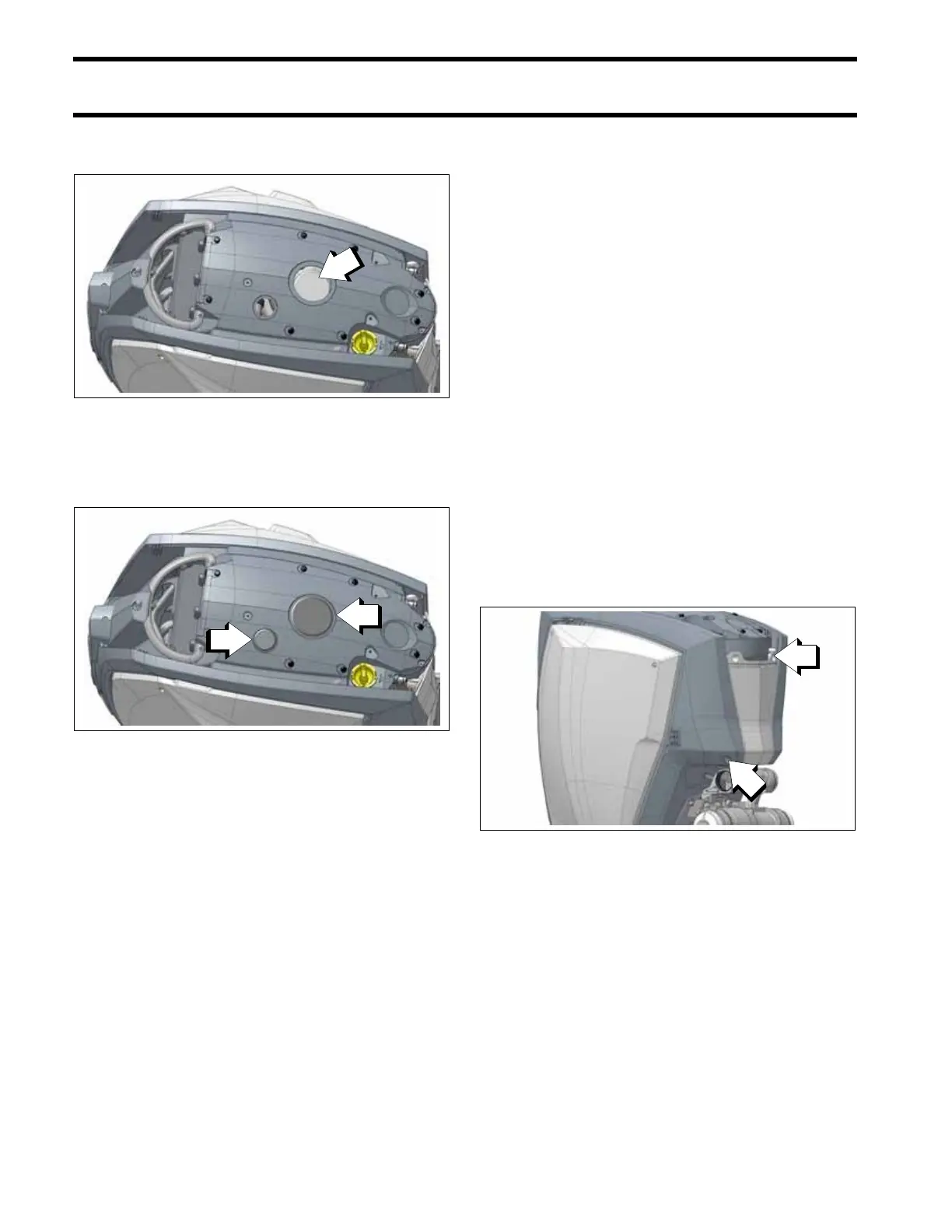

1. 3.5 inch air duct plug
009103
1. 4 inch center frame plug
2. 2 inch timing pointer plug
009104
1. Lower screws
2. Upper screws (front)
009105
