Electrical and Ignition
Electric Starter Servicing
138
Timing Verification
Use Evinrude Diagnostics software to synchronize
the mechanical timing of the outboard with the
electronic timing of the EMM.
Start the outboard.
Use the Settings/Ignition Timing screen of the
diagnostics software and follow the on-screen
instructions.
When the timing verification procedure is com-
plete, remove the timing lead from cylinder num-
ber 1 spark plug and ignition coil. Then reinstall
the spark plug lead.
Reinstall the plugs into the flywheel, air duct and
center frame. Refer to Plug Installation on p. 29.
Electric Starter Servicing
Starter Removal
IMPORTANT: Do not clean the starter drive
while the starter motor and drive are installed on
the powerhead. The cleaning agent could drain
into the starter motor, washing dirt from the drive
into the starter bearings and commutator.
Disconnect the battery cables at the battery.
Remove the red/tan wire from the “S” terminal on
the solenoid. Remove the positive (+) cable from
the “B” terminal on the solenoid.
Remove the two upper and two lower starter
mounting screws. Lift and remove the starter.
Remove the ground cable from the starter hous-
ing.

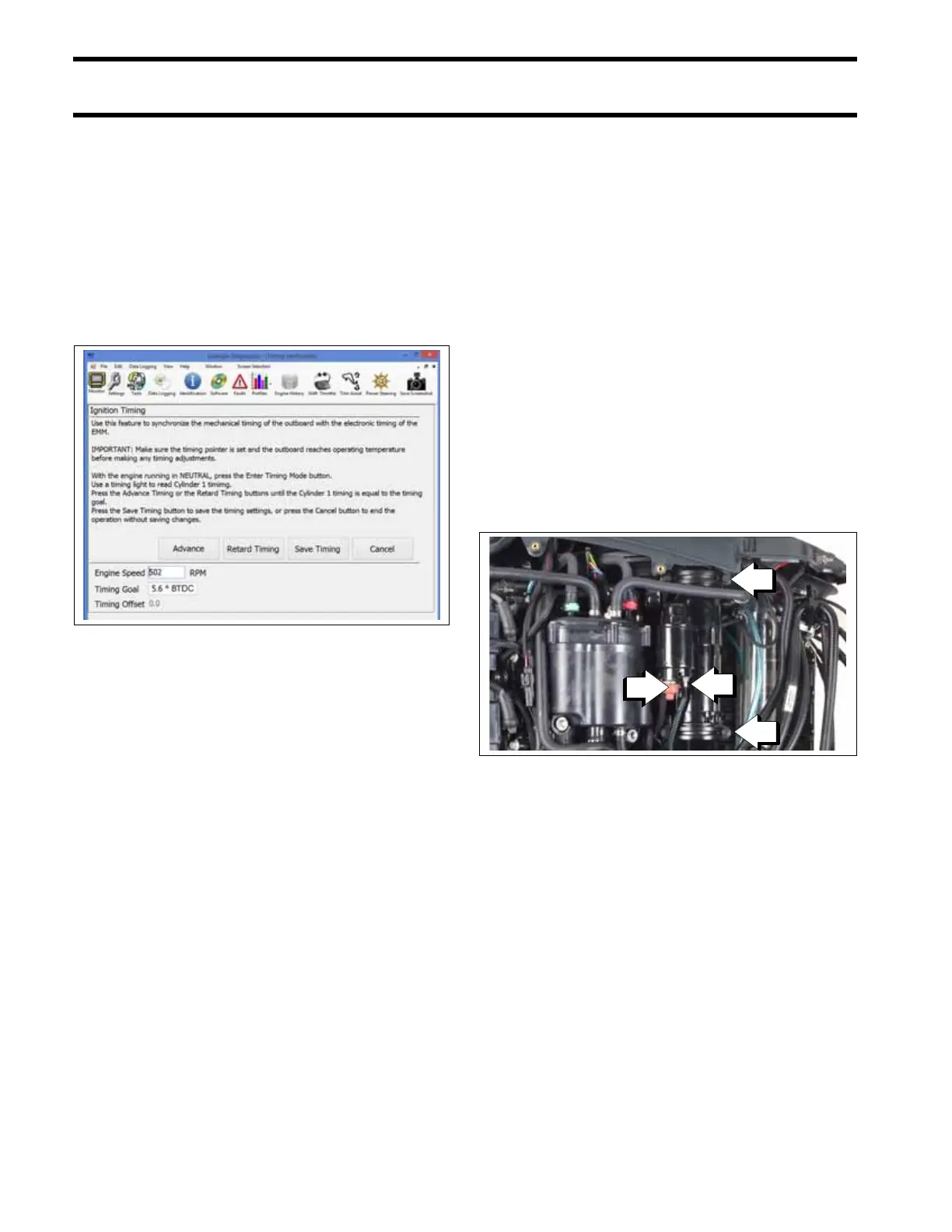

Timing Adjustment Screen
009367
1. “B” terminal
2. “S” terminal
3. Upper mounting screws
4. Lower mounting screws
009175
3
2
1
4
