BRP Evinrude E-TEC G2 - Cooling Hose Routing Diagram - Port

212
Cooling System
Water Flow and Hose Routing Diagrams

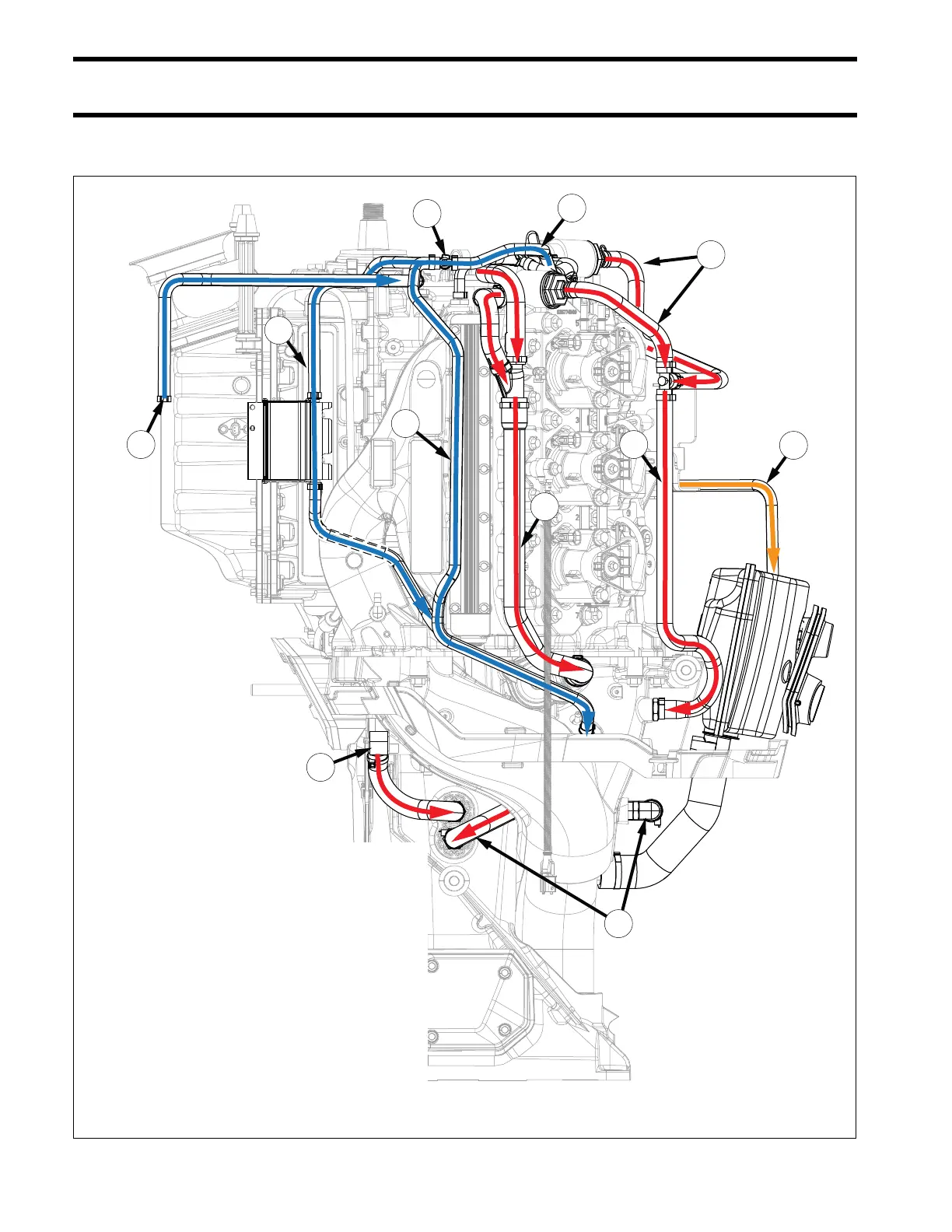

Cooling Hose Routing Diagram - Port
Cooling Hose Diagrams
10
2
1
5
7
6
3
8
9
9
4
009255
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
Water supply from filter to EMM, vapor
separator, DPS module & exhaust cooling
Water supply to EMM & vapor separator
Water to exhaust cooling (Non-DPS models)
Water to DPS module & exhaust cooling
Water from EMM, vapor separator & block
vent to overboard indicator
Water from exhaust adapter (front)
to exhaust housing
Water from exhaust adapter (rear) to
exhaust housing
Water from cylinder heads to pressure relief
valve
Water from thermostats to exhaust adapter
Flush port (water inlet)
