Stern and Swivel
DPS Manifold Service
322
Install tie strap, P/N 320107 to secure sensor lead
to sensor as shown.
IMPORTANT: DPS-2 Pressure sensors use a
clamp-on ferrite suppressor. Remove the suppres-
sor from the old sensor. Install the suppressor on
the sleeve of the new sensor, within 2 to 4 in. (50
to 100 mm) of the electrical connector.
Be sure to calibrate the steering pressure sensors
after the DPS manifold is re-installed on the out-
board.
Refer to Steering Pressure Sensor Calibration
(AFA and Newer Models Only) on p. 309.
Electric Motor
Remove the four screws and washers retaining
the electric motor to the manifold housing.
Remove the electric motor, o-ring and coupler
from the manifold housing.
Clean and dry all parts thoroughly.
Assembly is the reverse of disassembly. Tighten
screws to a torque of 60 to 84 In. lbs.
(7 to 10 N·m)

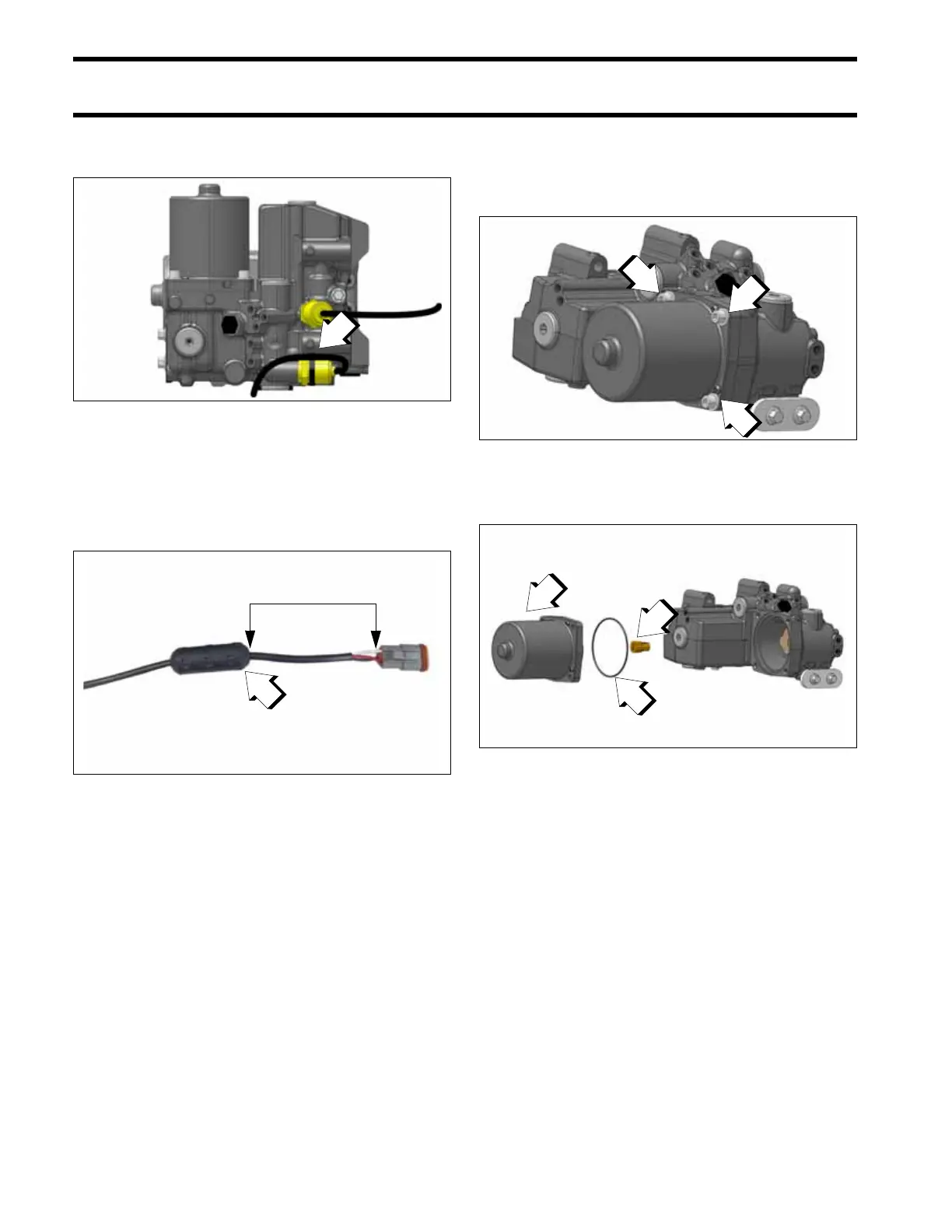

1. Tie strap
009455
1. Ferrite suppressor
009746
1. Screws and washers (3 shown)
009459
1. Electric motor
2. O-ring
3. Coupler
009460
