BRP Evinrude E-TEC G2 - 200, 225, 250 HP, 250 H.O., 300 HP Models - Starboard; Oil Supply Diagrams

190
Oiling System

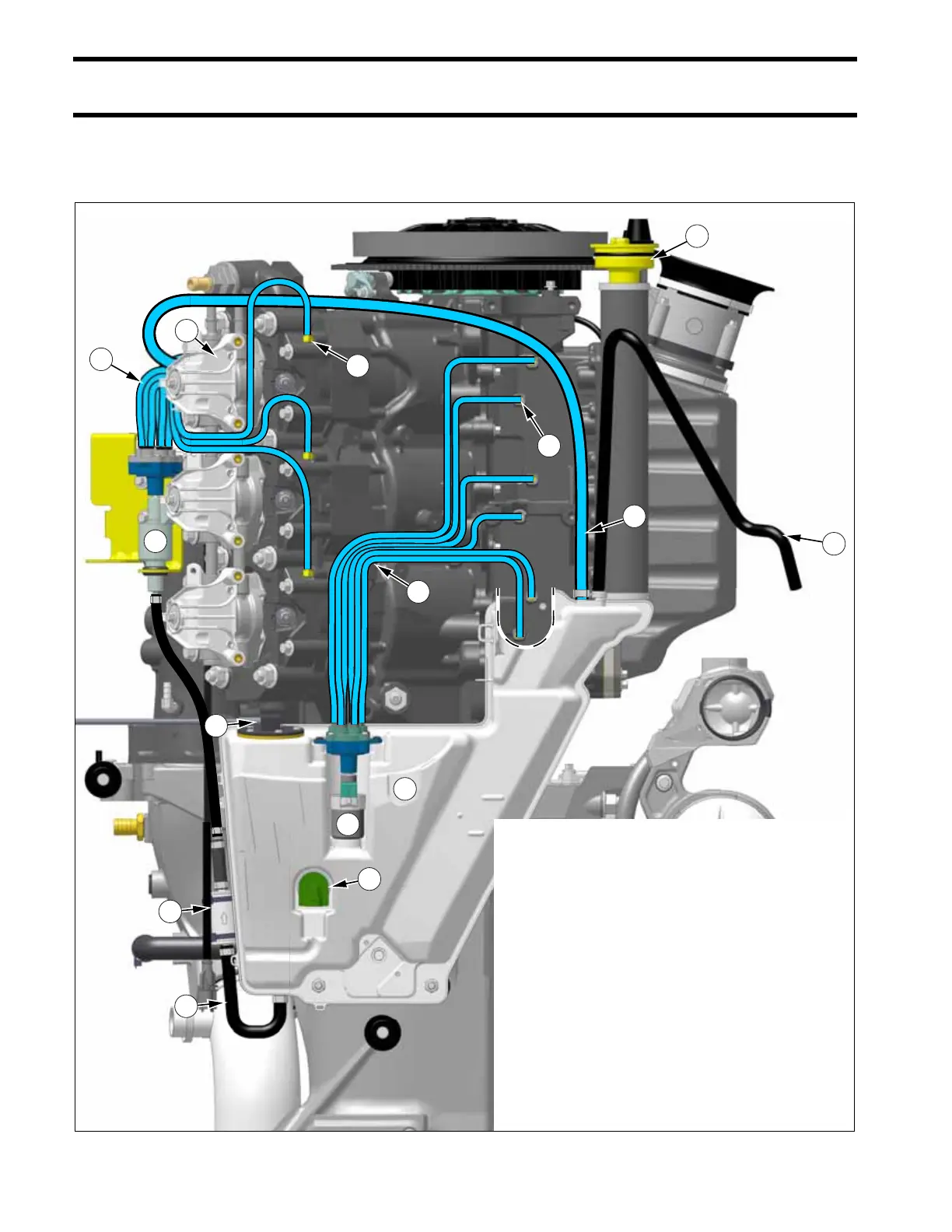

Oil Supply Diagrams
Oil Supply Diagrams
200, 225, 250 HP, 250 H.O., 300 HP Models - Starboard
4
5
6
7
12
13
14
3
8
1
2
9
10
11
15
009251
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
Oil fill cap
Remote oil fill hose
Oil tank vent hose
Oil tank assembly
Crankcase oil pump
LOW Oil switch
Oil level sender
Crankcase oil distribution hoses
Crankcase oil fittings
Oil hose assembly
(to cylinder oil pump)
Oil filter
Cylinder oil pump
Cylinder oil distribution hoses
Cylinder oil fittings
Vent plug
(Remove if remote oil fill is used)
