BRP Evinrude E-TEC G2 - Oil Recirculation Diagram

Oiling System

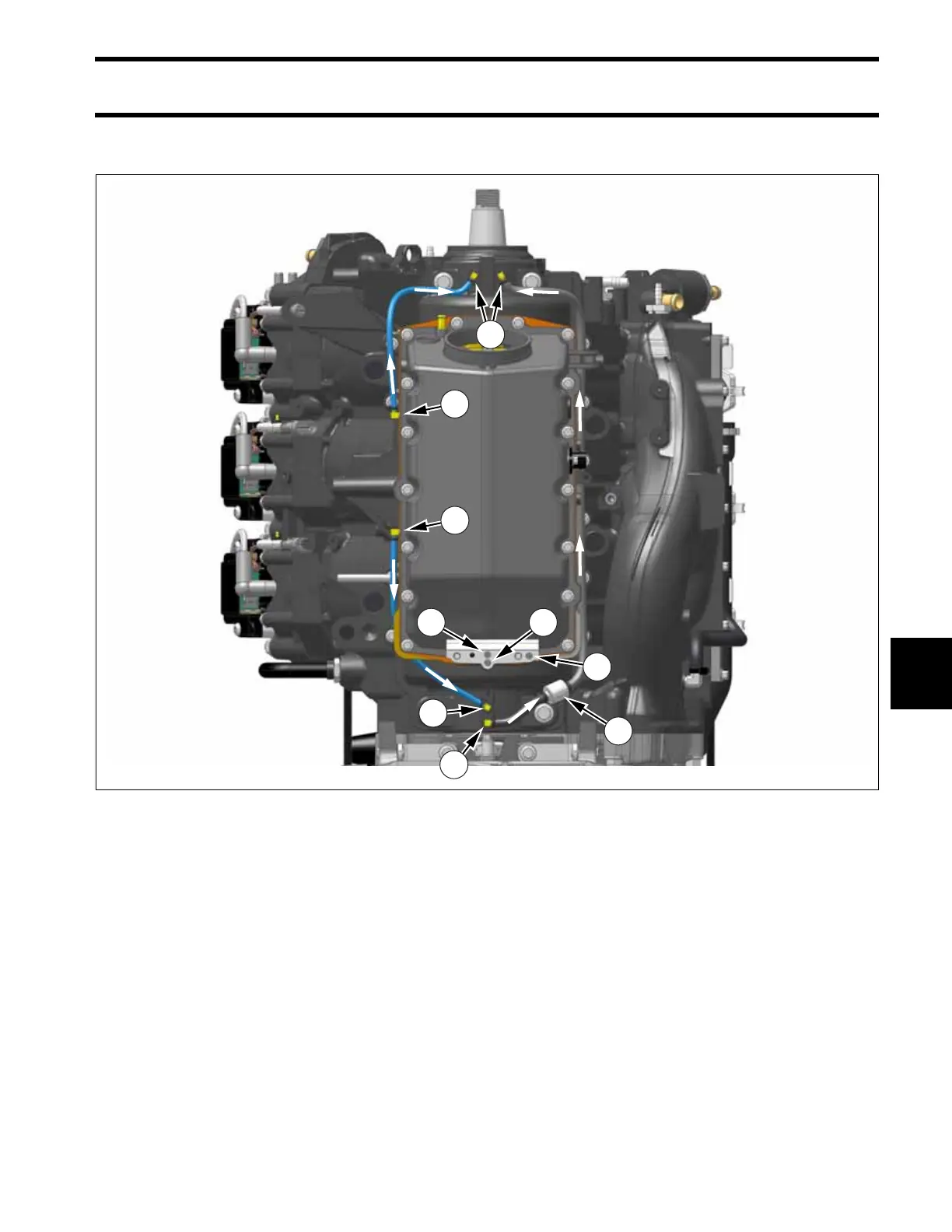

Oil Recirculation Diagram
189
8
Oil Recirculation Diagram
1.
2.
3.
4.
5.
6.
7.
8.
9.
Oil inlet fitting upper main bearing
Check valve out (reed plate #2 cylinder)
Check valve out (reed plate #4 cylinder)
Oil inlet fitting to lower main bearing
Oil outlet fitting from lower main bearing
Check valve out (reed plate #6 cylinder) to lower main bearing
Check valve from area in inside plenum to lower main bearing
Check valve out (reed plate #5 cylinder) to lower main bearing
Check valve from lower main bearing to upper main bearing
Complete View
1
2
3
4
5
6
7
8
9
009248
