Oiling System
Components
194
LOW OIL Switch
An oil level switch in the oil tank assembly moni-
tors the oil level in the oil tank.
Oil Warning System
LOW OIL Warning
If the oil level falls below 25% capacity, the EMM
signals:
Approximate oil reserve at LOW OIL activation is
2.0 qt. (1.9 l).
*Note: If equipped with ICON Touch digital dis-
plays, the sending unit in the oil tank signals the
ICON Touch display to activate the LOW OIL
warning through a NMEA2000 network.
NO OIL Warning
When the oil level falls below 25%, the EMM
begins counting oil pump pulse cycles. When it
reaches:
• 20,000 pulses
the EMM:
To recover from S.A.F.E. mode:
• Oil level must be above 25%
• The warning resets after three oil pump pulse
cycles when the outboard has been stopped
and restarted.
If outboard has been run for more than 5 hours
with NO OIL faults (codes 34 & 117), the EMM:
Cylinder and Crankcase
The crankcase oil manifold provides crankcase
lubrication through oil distribution hoses and
pressed-in fittings at the front of the crankcase,
starboard side.
The cylinder oil pump and manifold provides lubri-
cation for each cylinder. Each cylinder of the cylin-
der/crankcase has a pressed-in fitting which is
connected to an oil distribution hose.
Engine Monitor LOW OIL display: ON*
Activates S.A.F.E.
Stores fault code 117
Engine Monitor NO OIL display: ON
Activates SHUTDOWN
Stores fault code 33
Engine Monitor NO OIL display: FLASHING

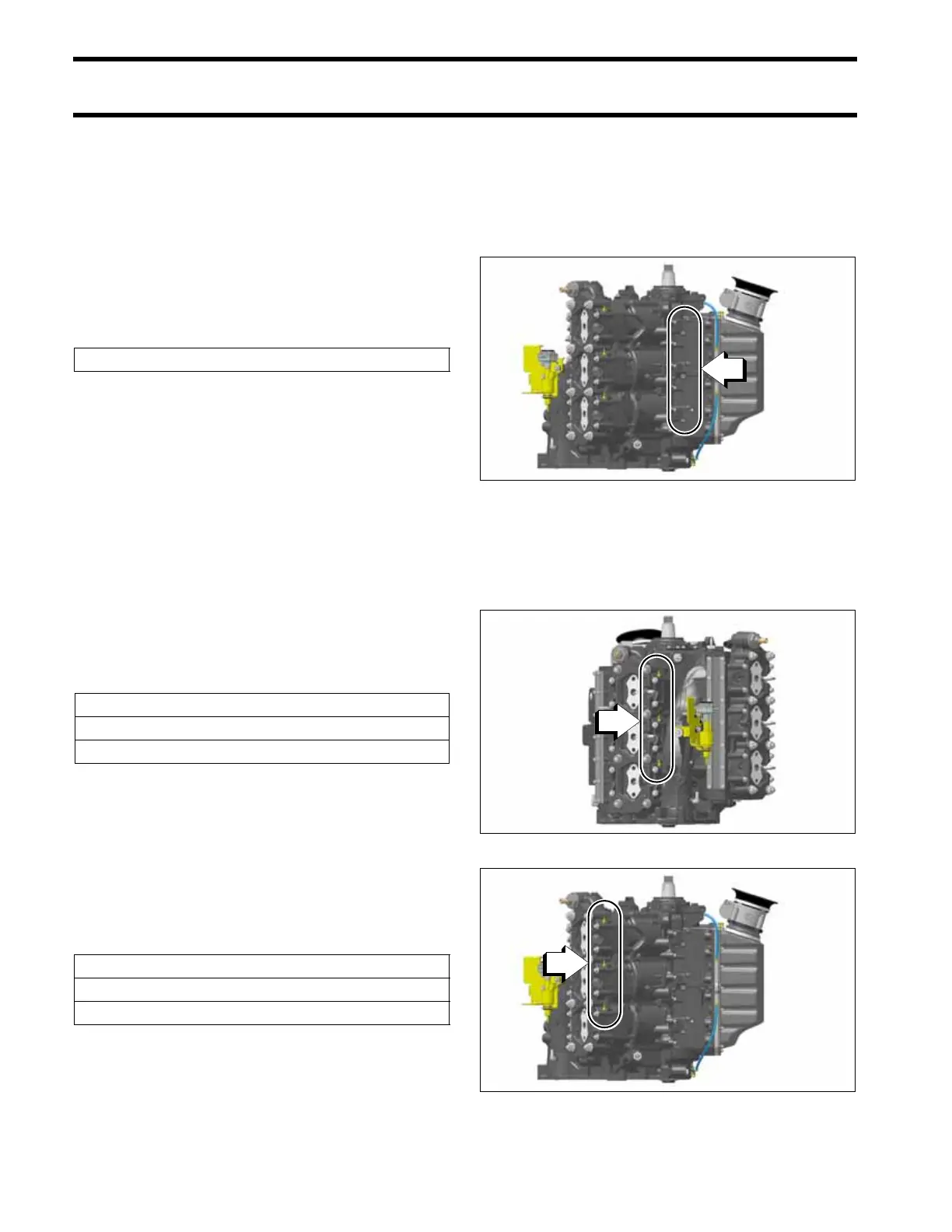

1. Pressed-in fitting
009222
1. Cylinder sleeve oil fittings – port/rear
009223
1. Cylinder sleeve oil fittings – starboard
009222
