BRP Evinrude E-TEC G2 - Shift Housing Assembly

383
Gearcase
Shifter, Bearing and Seal Servicing
14

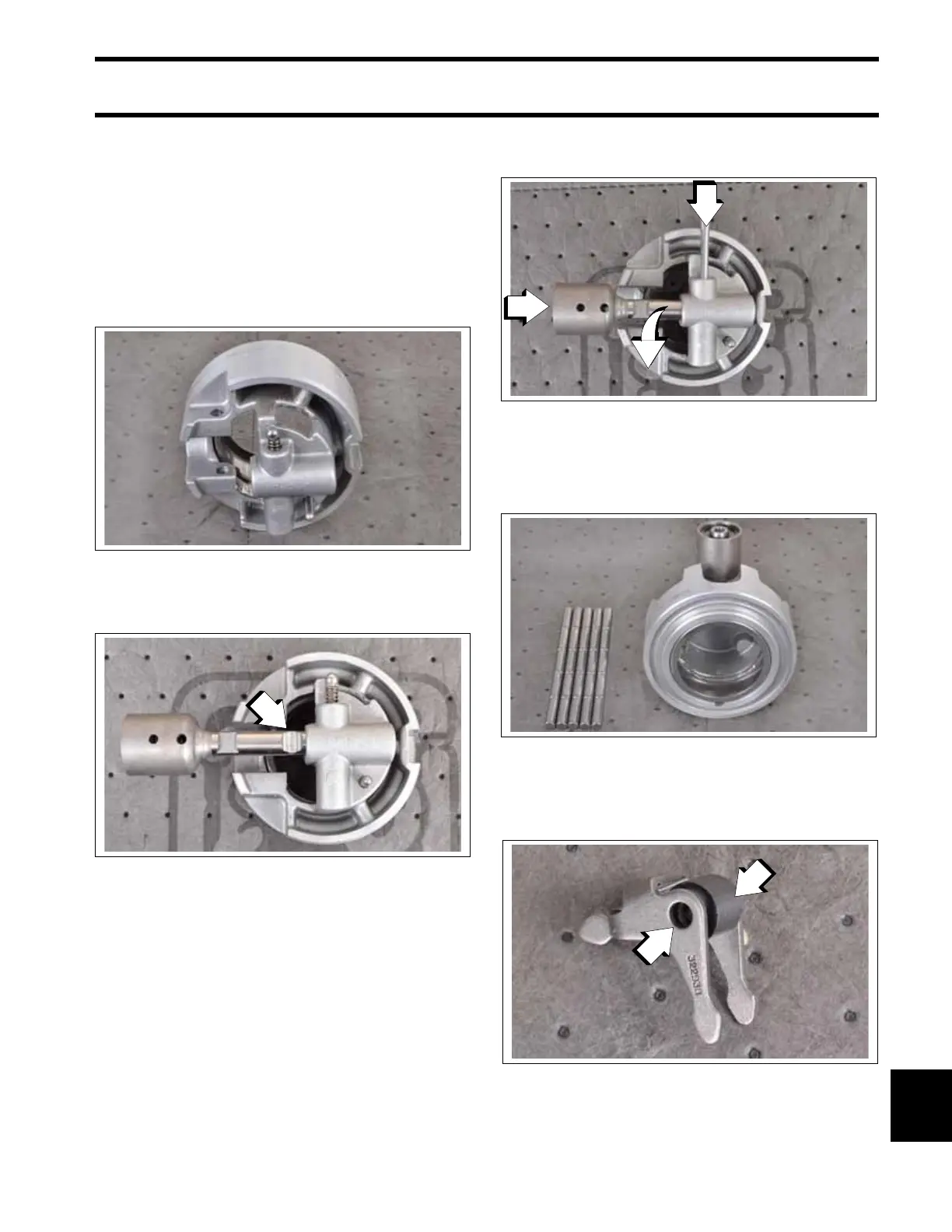

Shift Housing Assembly
IMPORTANT: Clean and inspect all parts before
beginning assembly procedures. Replace any
damaged parts.
Lightly coat the detent ball and spring with Needle
Bearing grease. Insert the spring in the housing,
then the ball.
Insert shifter detent into the housing. Position the
NEUTRAL detent at a 90° angle as shown.
Depress the ball and spring with a suitable tool.
Then push the shifter detent is past the ball, and
remove the tool.
Rotate the shifter detent 90° to position the detent
to engage the ball in the NEUTRAL position.
Thoroughly grease 25 needle bearings with Nee-
dle Bearing grease and place in the bearing case.
Install the magnet into the shift lever, aligning the
hole in the magnet with the holes on the shift
lever.
009523
1. NEUTRAL detent
009516
1
1. Depress ball and spring
2. Push shifter detent
3. Rotate 90°
009515
009517
1. Magnet
2. Hole on shift lever
009524
1
3
2
2
1
