BRP Evinrude E-TEC G2 - Steering Pressure Sensors

321
Stern and Swivel
DPS Manifold Service
13

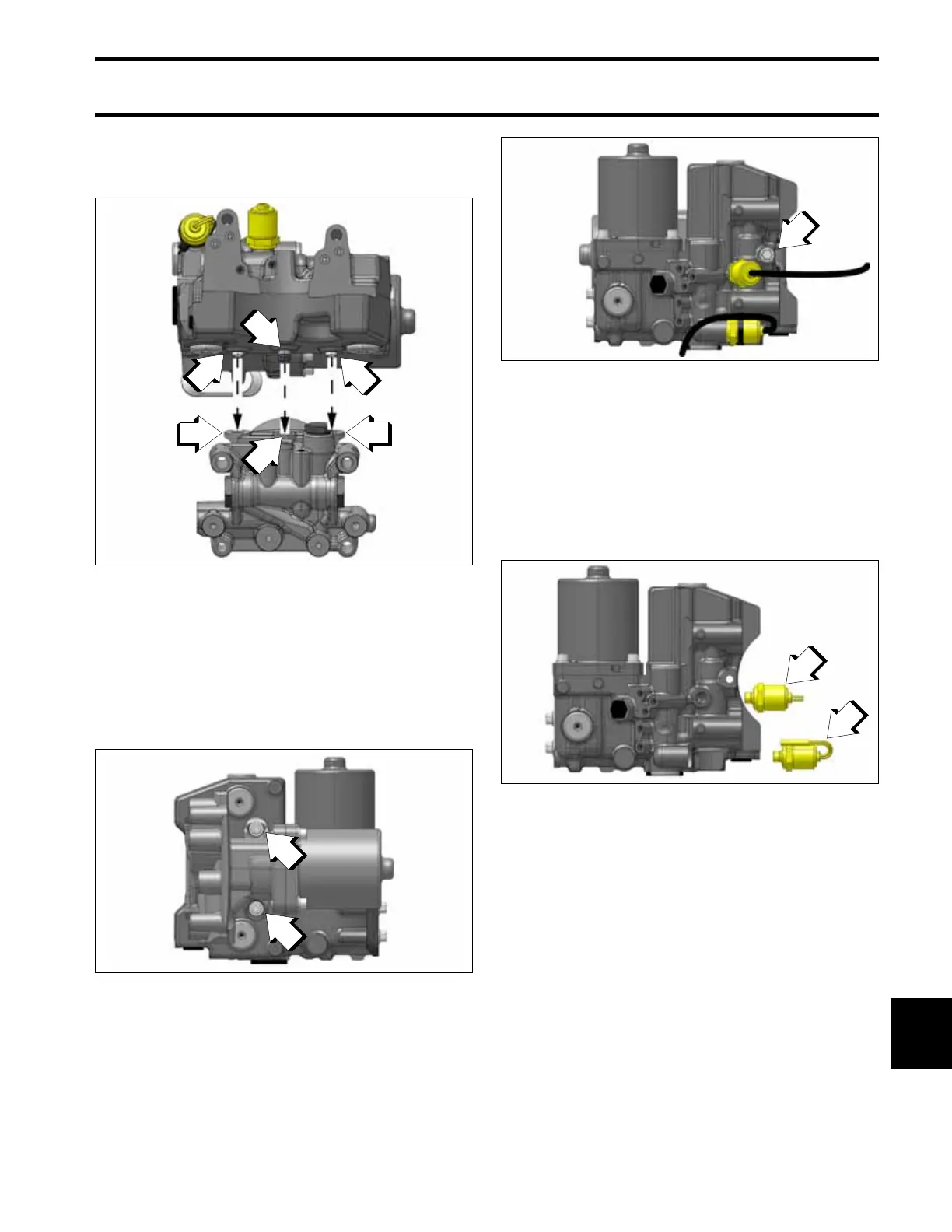

Align the sleeves, and tube and o-rings of the
DPS manifold with the screw bosses, and fluid
passage of the trim manifold.
Assemble the manifolds.:
• Install two screws and washers from the bottom
of the trim manifold
• Install one screw from the top of the DPS mani-
fold
Tighten the screws to a torque of 60 to 84 In. lbs.
(7 to 10 N·m).
Steering Pressure Sensors
Remove the steering pressure sensors as
required for replacement.
Install sensors and tighten to a torque of 144 to
168 In. lbs. (17 to 19 N·m).
1. Sleeves
2. Tube and o-rings
3. Retaining screw bosses
4. Fluid passage
009462
Bottom Of Trim Manifold
009454
1. Two screws and washers
1
2
1
4
3
3
1
1
Top of DPS Manifold
009455
1. Screw
1. Steering pressure sensors
009458
1
1
1
