Engine Cover and Frame Service
Frame Installation
74

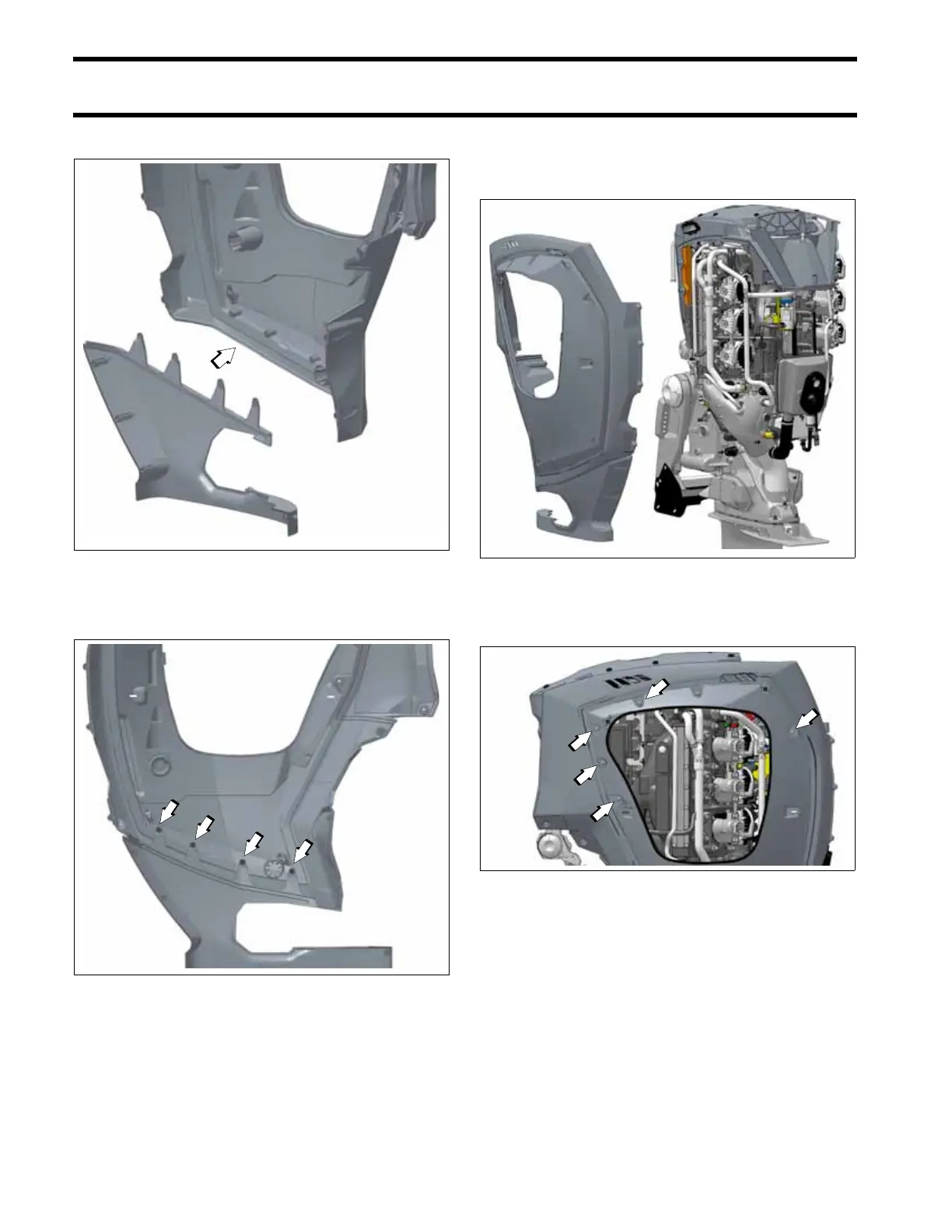

Assemble the port exhaust housing cover.
Tighten the four screws to a torque of 18 to 30 in.
lbs. (2 to 3 N·m).
Install the port frame and lower port exhaust hous-
ing cover to the outboard. Seat the frame into the
groove of the exhaust grommet.
Tighten the six port frame screws to a torque of 18
to 30 in. lbs. (2 to 3 N·m).
5008559_22
5008559_21
5008559_20
5008559_19
To Next Page
