Electrical and Ignition
Charging System Tests
126
• 62 VAC at 300 RPM

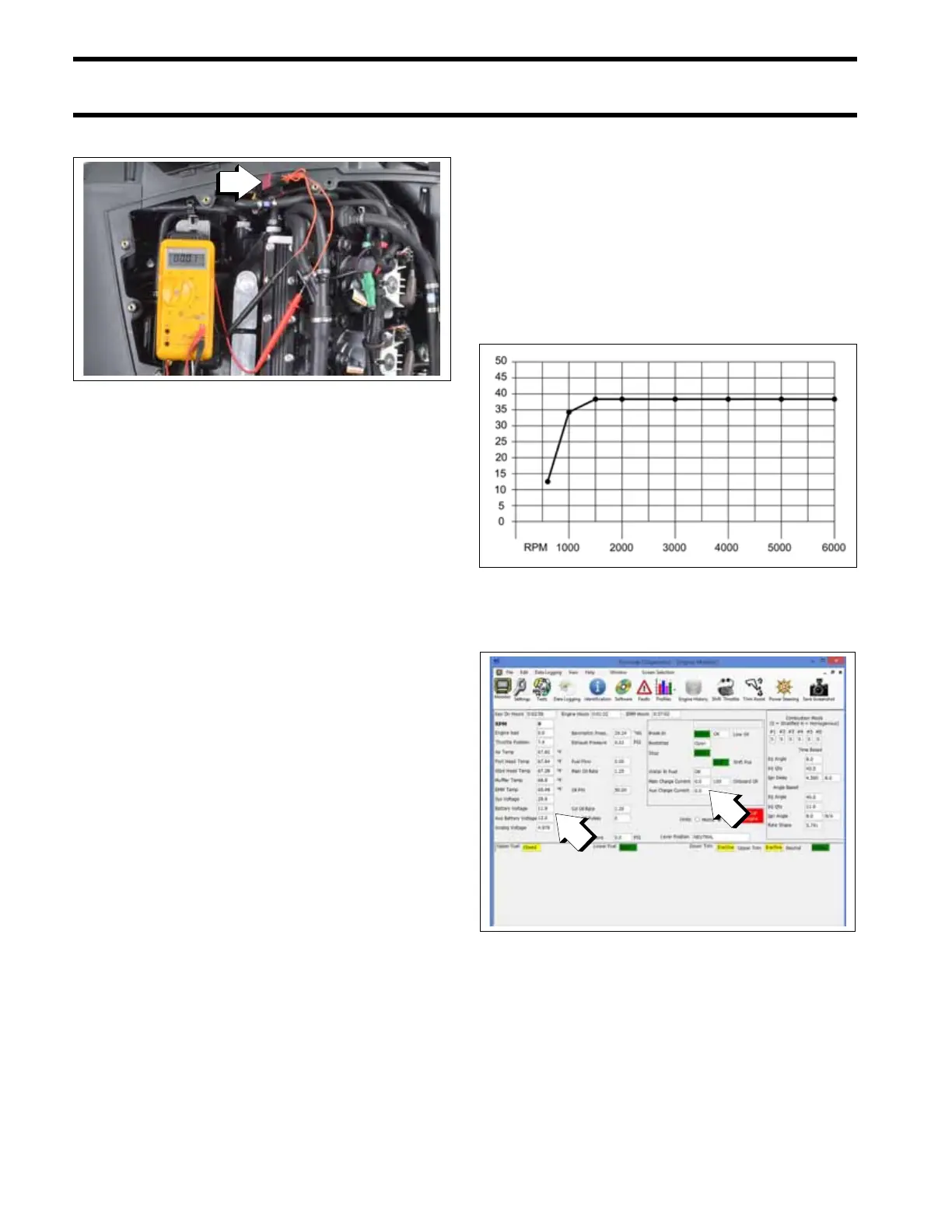

Charging System Tests
The charging system provides 12 VDC for battery
charging. Alternator total output, or GROSS out-
put is:
• 10 A at 500 RPM
• 50 A from 2000 RPM to WOT.
Charging system available output to the battery, or
NET output is shown in the following graph:
Use Evinrude Diagnostics software to monitor bat-
tery voltage and GROSS charge current.
Use an inductive amp meter to monitor NET
charge current at the battery. Fluke
†
, Snap-On
†
or
various other digital meters should be available
through local tool suppliers.
1. Stator Test Adapter
009360
Battery Charging Current (Net) @ 14 VDC
009339
Engine Monitor Screen
009242
1. Main and auxiliary battery voltage display
2. Main and auxiliary charge current display
