181
Fuel System
Fuel Component Servicing
7

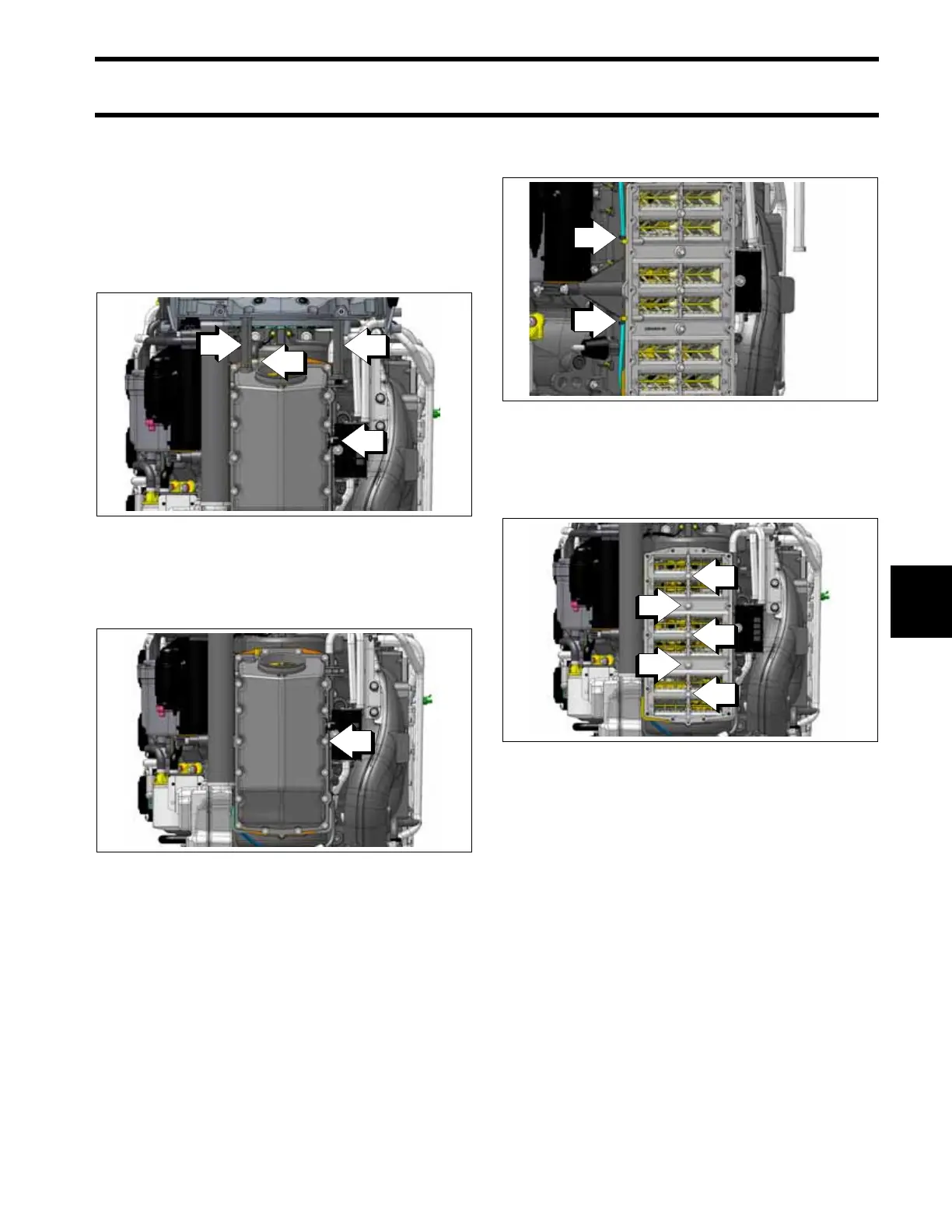

Remove the:
• center frame spacers and mounts from the ple-
num.
• Oetiker clamp from the vapor solenoid vent
hose, then remove the vent hose from the ple-
num.
• electrical connector from the air temperature
sensor.
Remove 18 retaining screws from the plenum,
then remove the plenum and gasket.
Remove the tie straps and oil recirculation hoses
from the reed plate assembly.
Remove 5 retaining screws from the reed plate
assembly, then remove the reed plate and gasket
from the crankcase.
Disassembly
All reed plate assembly and reed valve assem-
blies must be cleaned before reassembly. DO
NOT use strong carburetor cleaner or the hot
soaking tank method for cleaning.
1. Oetiker clamp and vent hose
2. Electrical connector
3. Center frame spacers and mounts
009189
1. 18 retaining screws
009190
1. Tie straps and oil recirculation hoses
009191
(oil fill hose removed for clarity)
1. 5 screws
009192
