Powerhead Assembly
11

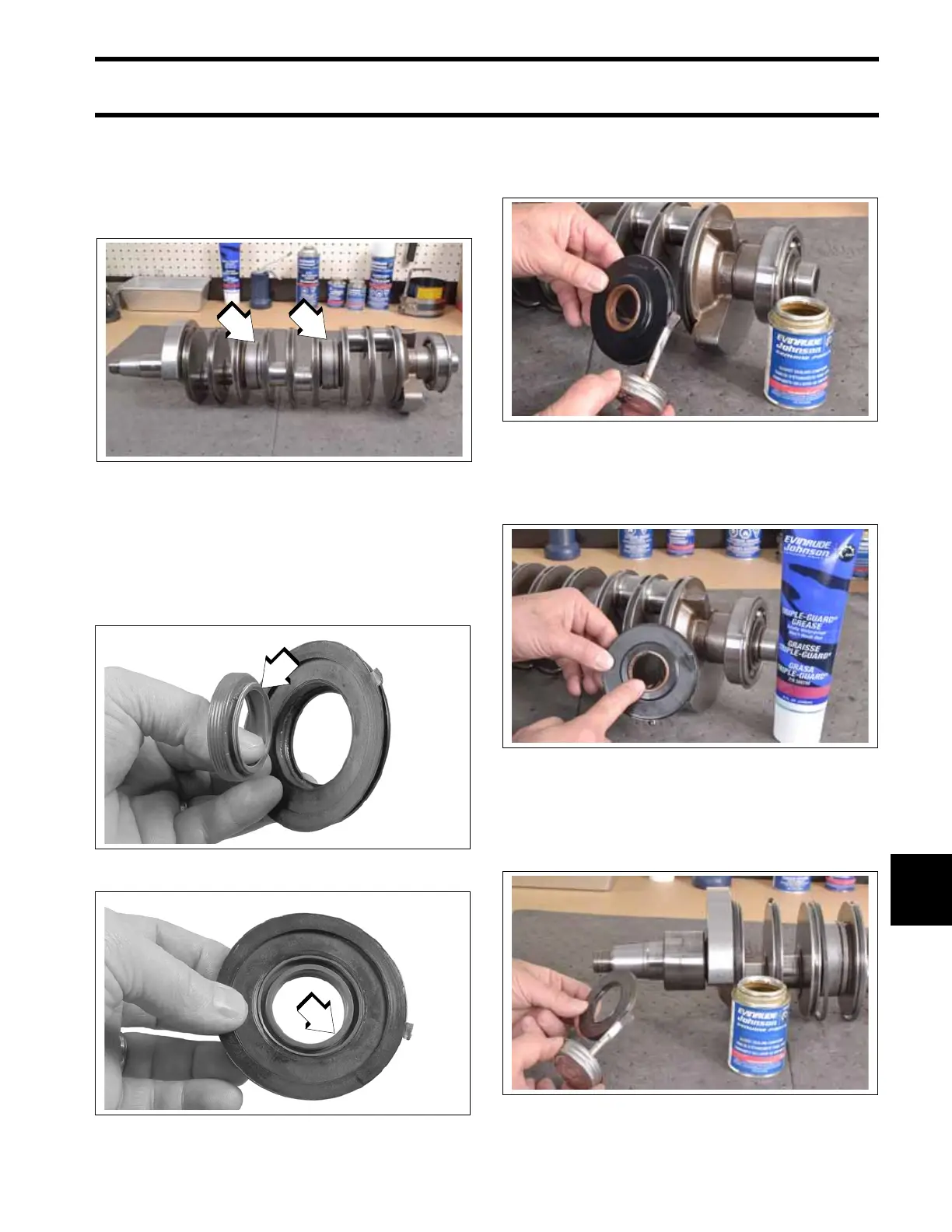

Lubricate the center main bearings and split
sleeves with outboard lubricant and install them in
their original positions. The split sleeve ring
grooves must face toward driveshaft (lower) end
of crankshaft when installed.
Lightly coat the outside edge of a new lower seal
with Gasket Sealing Compound. Press against
the outer case of the seal to install the seal into
the housing. The extended lip of the seal MUST
face down. Lubricate the seal lip with Triple Guard
grease.
Install a new o-ring on the lower housing. Apply a
thin coat of Gasket Sealing Compound to the o-
ring.
Apply a thin coat of Triple Guard grease to the
extended lip of the seal, then place the lower seal
housing on the crankshaft.
Thoroughly clean the upper seal area of the
crankshaft. Apply a thin coat of Gasket Sealing
Compound to the outer edge of a new upper seal
then place the seal on the crankshaft.
1. Split sleeve ring grooves toward driveshaft
009730
1. Seal, extended lip
002036
1. Seal lip
002037
009711
009713
009712
