Routine Service
Rigging Information

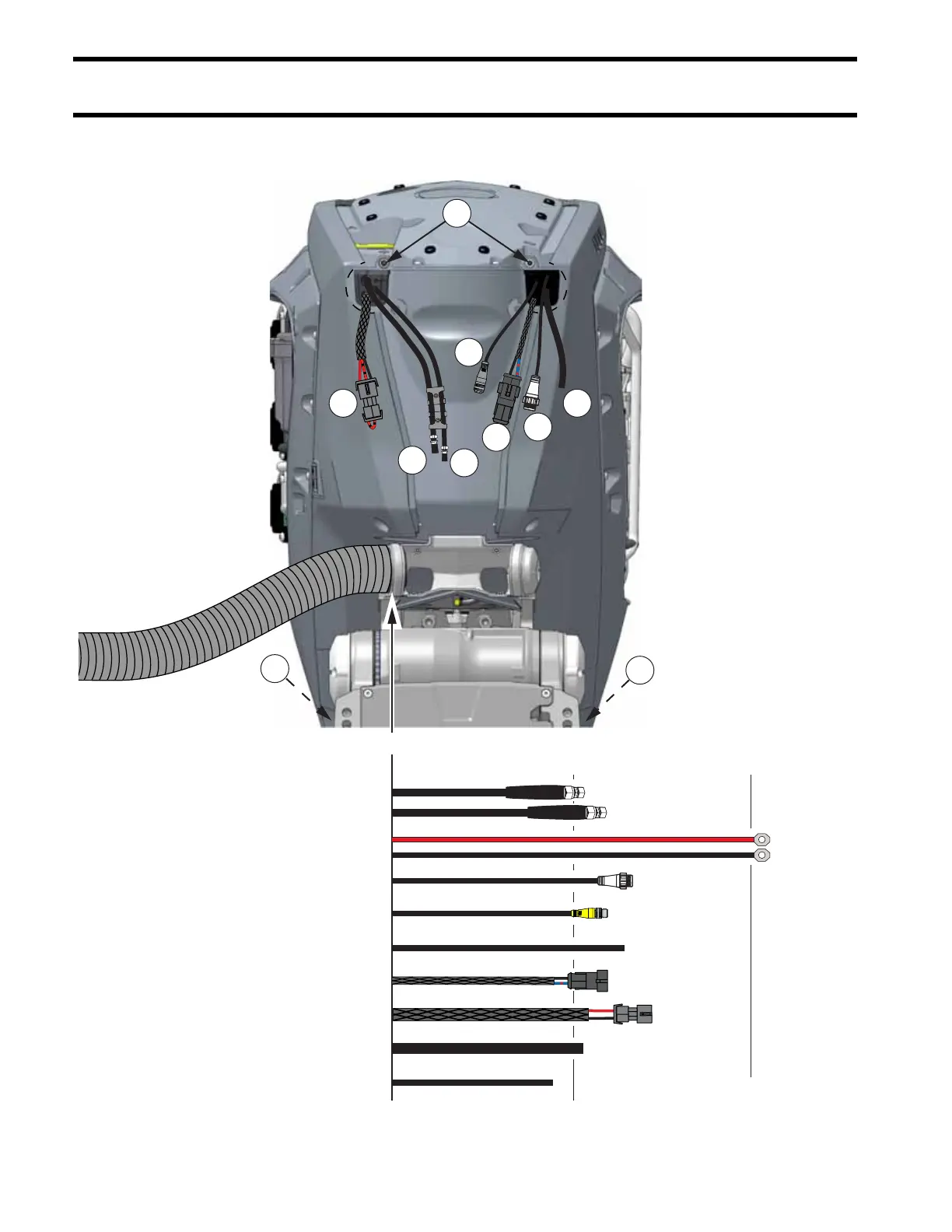

Rigging Center Hose and Cable Lengths
8
9
10
6
4
5
7
1
0 5 10 15 20
254 508
2
3
Component inches mm
1. Starboard Steering Hose 10.5 267
2. Port Steering Hose 12 305
3. Battery Cables 21.5 546
4. NMEA 2000 Network 13.25 337
5. Control Network 12 305
6. Flush Hose 13 330
7. Remote Oil Tank Connector 12 305
8. Auxiliary Battery Connector 14.5 368
9. Fuel Hose 10.5 267
10. Remote Oil Tank Hose 9229
