Stern and Swivel
Stern & Swivel Bracket
350

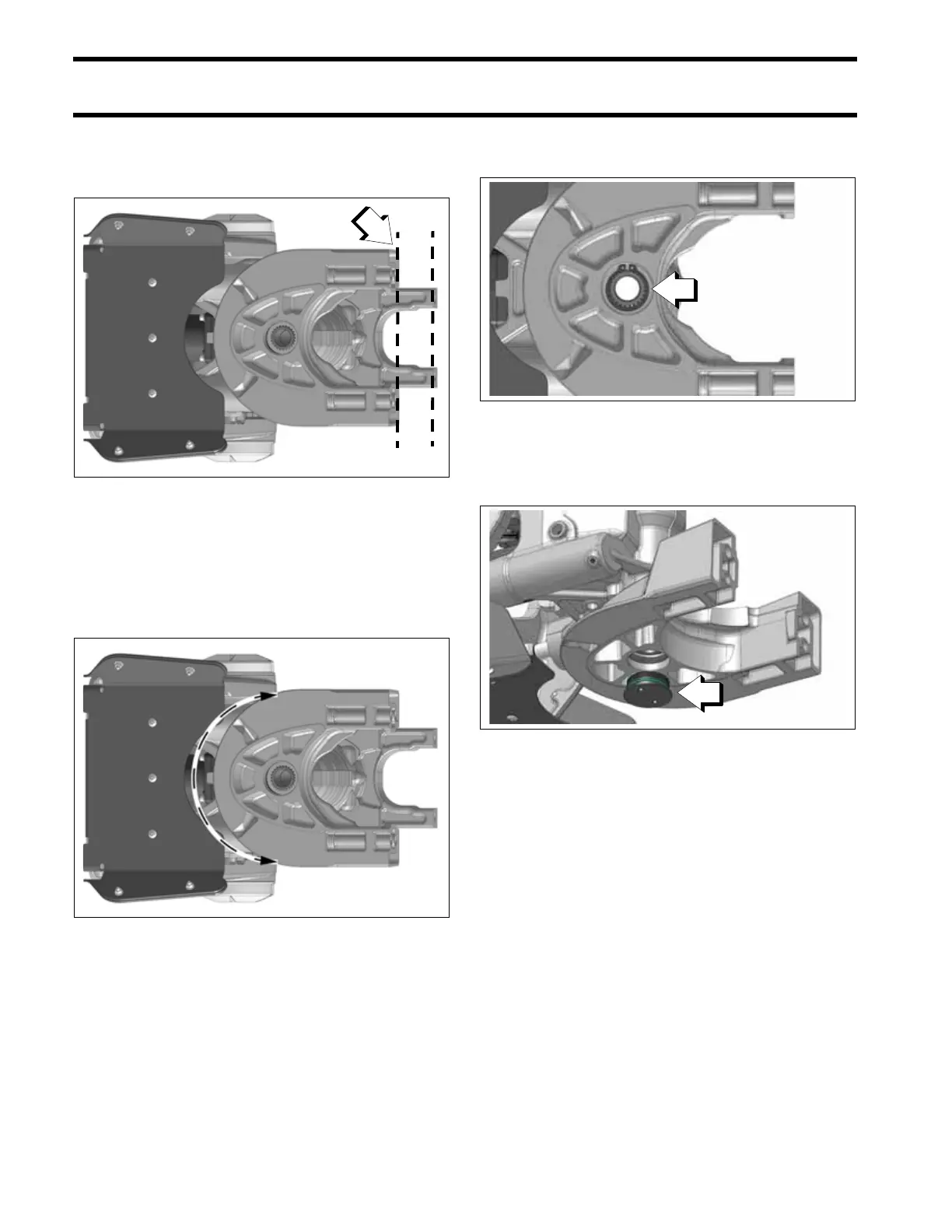

If installing a new service replacement part, align
the mounting surface of the lower bracket with the
mounting surface of the steering arm.
After the lower bracket is in place, turn the bracket
fully to port and fully to starboard.
IMPORTANT: The bracket MUST turn an equal
amount in both directions. Remove and re-align
the bracket if steering is not equal.
Use a bent-jaw retaining ring pliers to install the
retaining ring.
Use Spanner Wrench, P/N 912084, to install the
lower cover and o-ring. Tighten to a torque of
60 to 84 In.lbs. (7 to 9 N·m).
1. Mounting surfaces
009664
009665
1. Retaining ring
009651
1. Lower cover and o-ring
009650
