375
Gearcase
Gearcase Disassembly (Standard Rotation)
14

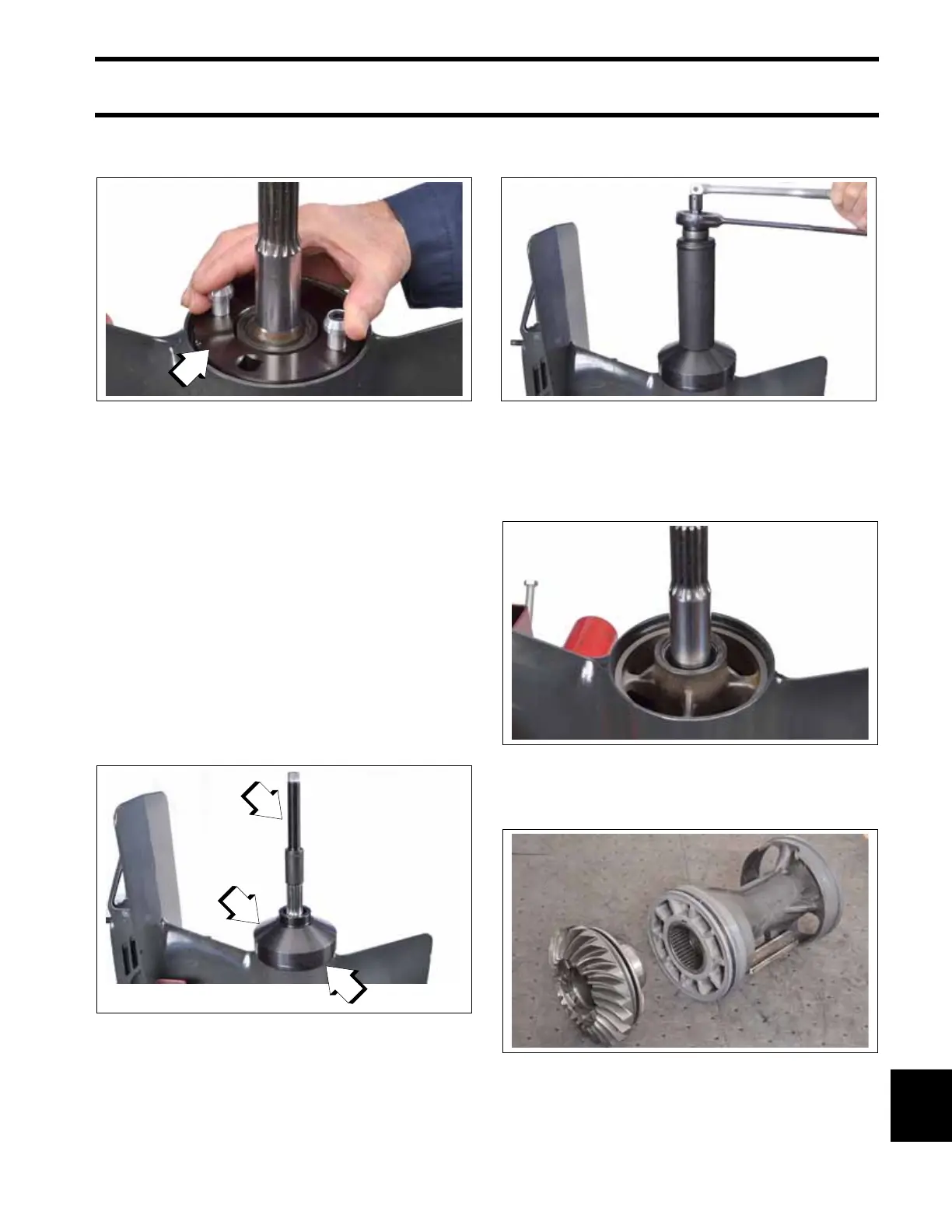

Once the spanner nut is loose, use the wrench to
remove the spanner nut by hand.
Use the Propeller Shaft Bearing Housing Puller
Kit, P/N 354060, with Puller Stud, P/N 358294, to
remove the propeller shaft bearing housing from
the gearcase using:
DO NOT use tools designed to push on the pro-
peller shaft. Pushing force against the propeller
shaft could damage the forward gear thrust bear-
ing or thrust washer.
IMPORTANT: Make SURE the shift actuator is
removed BEFORE beginning this procedure.
Place the Adapter, P/N 354178, on the gearcase,
followed by the Puller, P/N 354177, Then install
the Puller Stud, P/N 358294, onto the propeller
shaft until seated.
Install Puller Tube Assembly, P/N 354175, over
the puller stud. Hold the puller stud with a wrench
and turn the nut clockwise to remove the bearing
housing.
Pull the propeller shaft and bearing housing far
enough to loosen the PRESSED bearing housing
from the gearcase housing.
Remove the bearing housing, thrust washer,
thrust bearing, and reverse gear from gearcase.
1. Spanner Nut Wrench, P/N 358165
009531
1. Adapter, P/N 354178
2. Puller, P/N 354177
3. Puller Stud, P/N 358294
009532
009533
009534
009535
