Gearcase
Gearcase Disassembly (Counter Rotation)

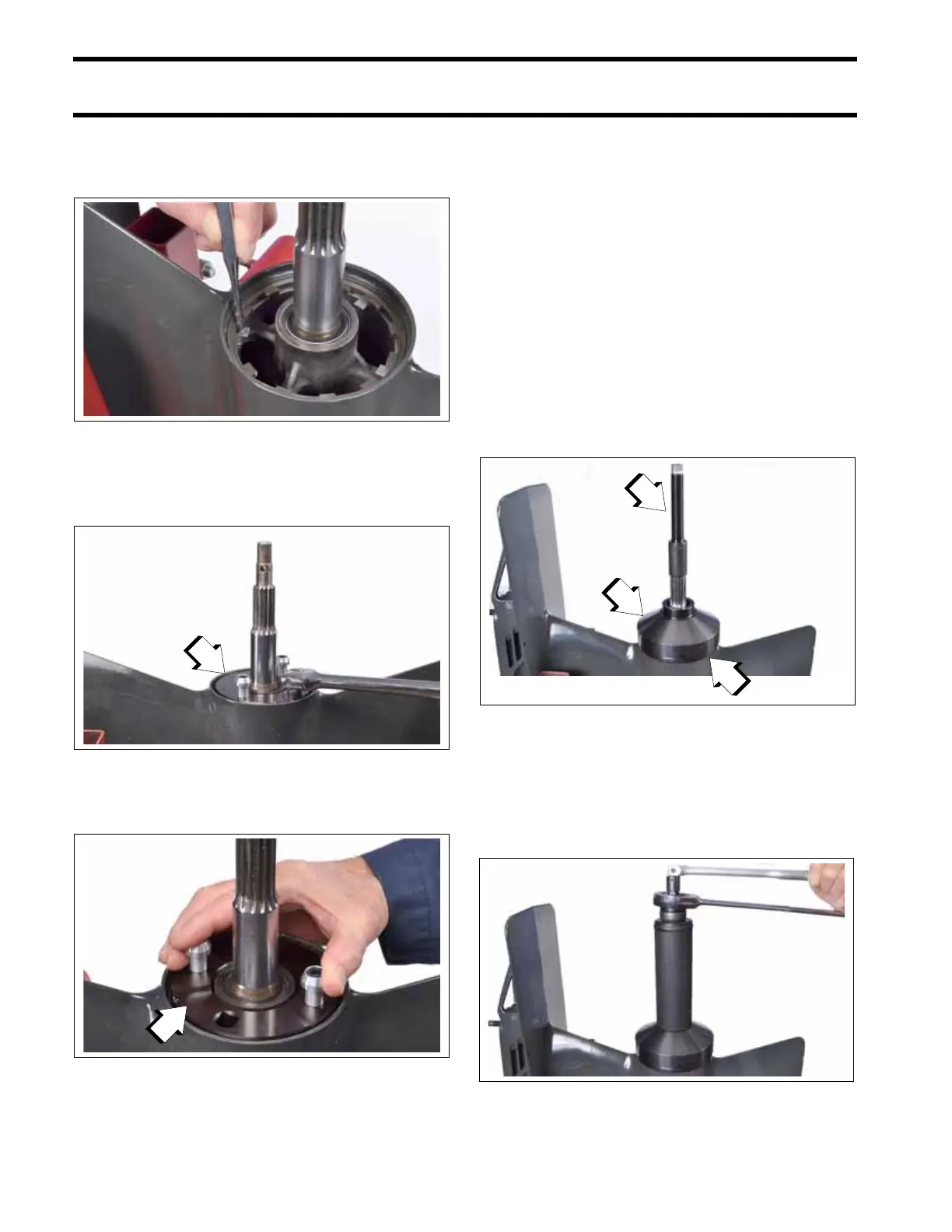

Use a punch to bend the tab of the locking ring
down. Use Spanner Nut Wrench, P/N 358165, to
remove the spanner nut.
Use Spanner Nut Wrench, P/N 358165, with a
breaker bar to loosen the spanner nut. Turn the
nut counter-clockwise to loosen.
Once the spanner nut is loose, use the wrench to
remove the spanner nut by hand.
Use the Propeller Shaft Bearing Housing Puller
Kit, P/N 354060, with Puller Stud, P/N 358294, to
remove the propeller shaft bearing housing from
the gearcase using:
IMPORTANT: Make SURE the shift actuator is
removed BEFORE beginning this procedure.
DO NOT use tools designed to push on the pro-
peller shaft. Pushing force against the propeller
shaft could damage the forward gear thrust bear-
ing or thrust washer.
Place the Adapter, P/N 354178, on the gearcase,
followed by the Puller, P/N 354177, Then install
the Puller Stud, P/N 358294, onto the propeller
shaft until seated.
Install Puller Tube Assembly, P/N 354175, over
the puller stud. Hold the puller stud with a wrench
and turn the nut clockwise to remove the bearing
housing.
009530
1. Spanner Nut Wrench, P/N 358165
009554
1. Spanner Nut Wrench, P/N 358165
009531
1
1
1. Adapter, P/N 354178
2. Puller, P/N 354177
3. Puller Stud, P/N 358294
009532
009533
1
2
3
