Engine Cover and Frame Service
Frame Removal
66

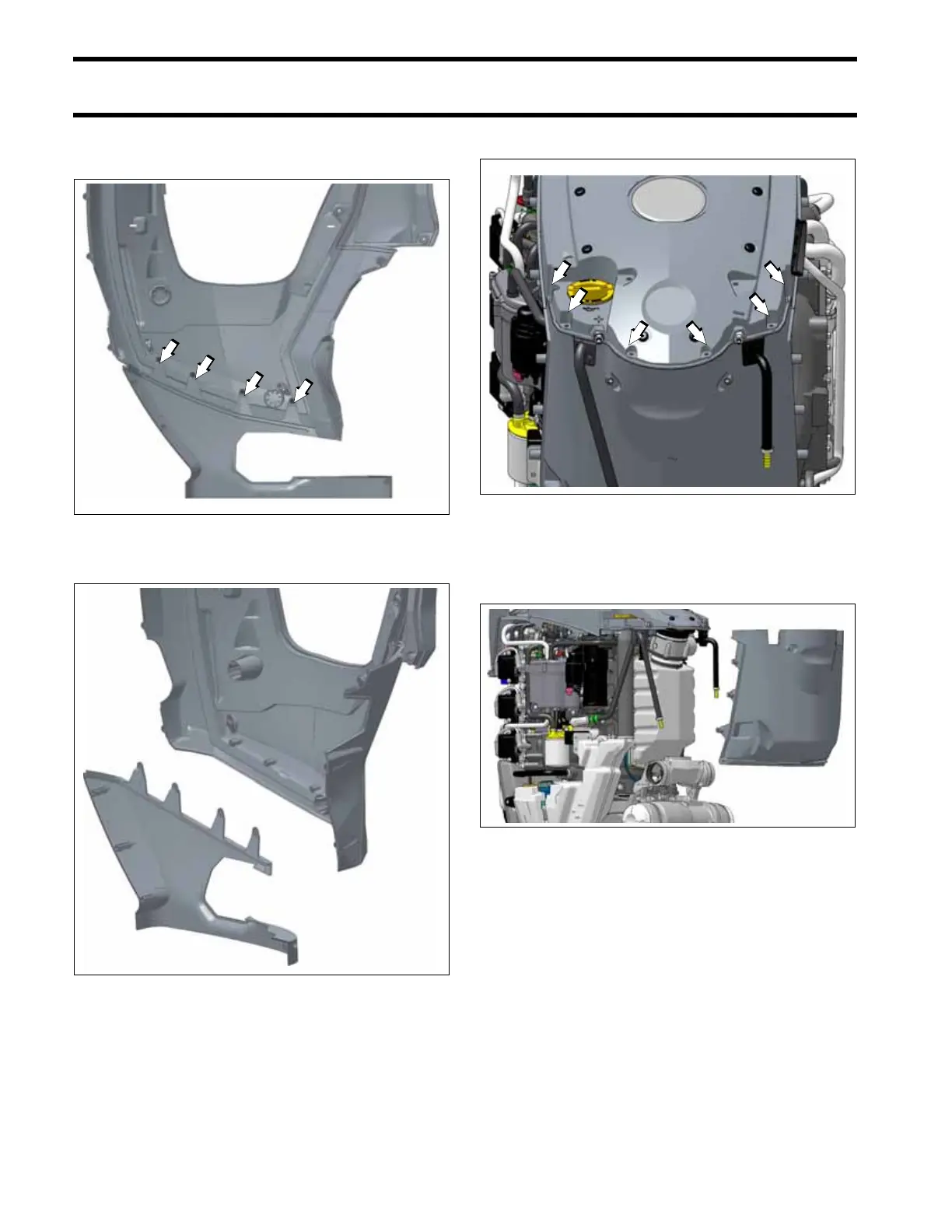

Remove the four port exhaust housing cover
screws.
Remove the port exhaust housing cover.
Remove the six front cover screws.
Move the front cover away from the powerhead,
Remove the rigging grommets from the front
cover. Remove the front cover.
5008559_21
5008559_22
5008559_23
5008559_24
