6–1
Chapter 6. FRONT PANEL
OPERATION
6.1 Overview
Feature Description Function
1 LED Indicators The LEDs indicate, in a summary fashion, the status of the modem. 6.1.1
2 Keypad
The keypad comprises six individual keyswitches. The keys have a
positive ‘click’ action that provides tactile feedback. ENTER data
via the keypad. Data, prompts, and messages are displayed on the
6.1.2
3
Vacuum
Fluorescent
Display (VFD)
The VFD is an active display showing two lines of 40 characters
each. It produces a blue light with adjustable brightness. Nested
menus (
Figure 6-2) display all available options and prompt you to
carry out a required action.
6.1.3

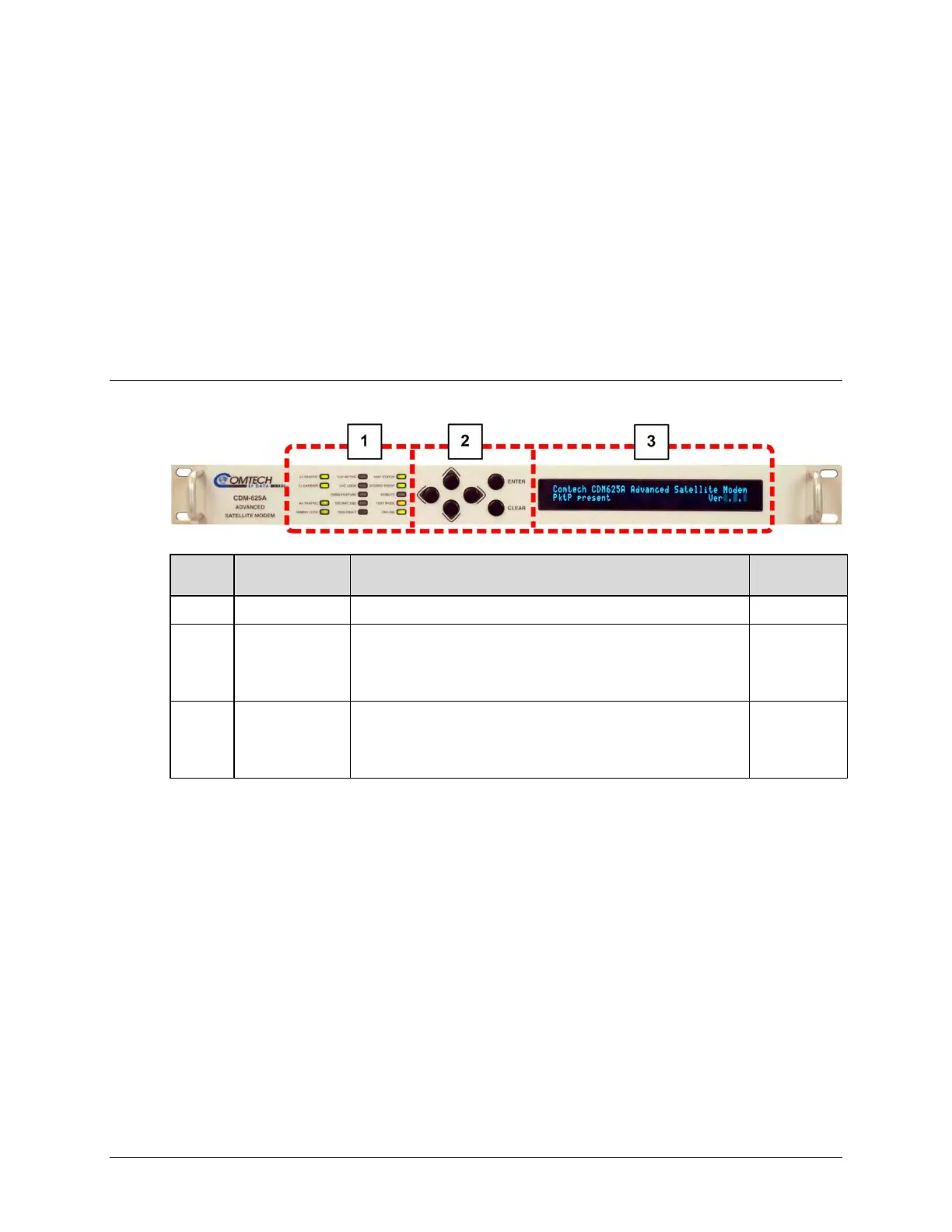

Figure 6-1. CDM-625A Front Panel Features
