7.5.4.4.4.7 Status | Traffic Statistics | PTP
Sect. K.7.3 PTP (Precision Time Protocol) (Appendix K. ETHERNET NETWORK
CONFIGURATION)
Use this page to obtain data intended to troubleshoot PTP (Precision Time Protocol) operational
issues.

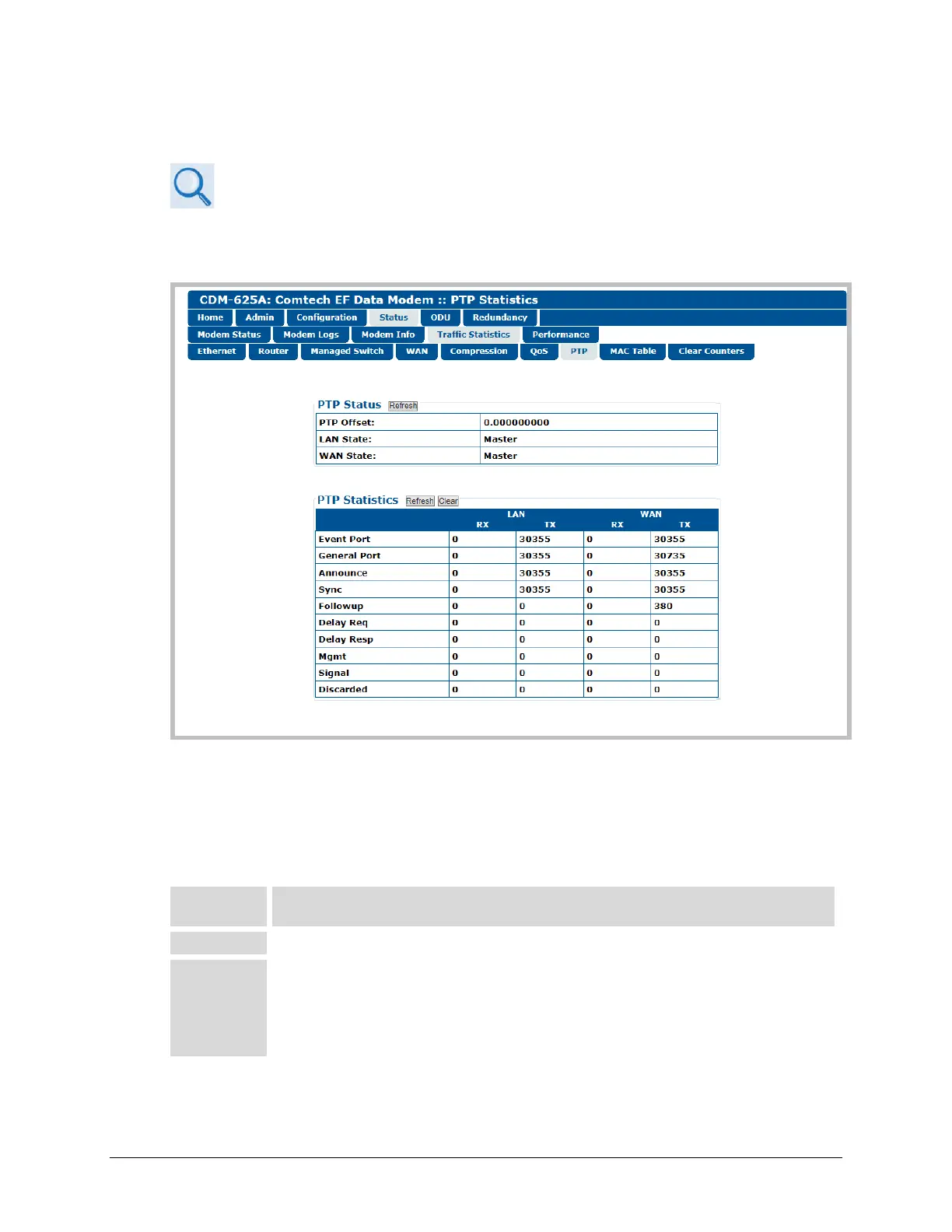

Figure 7-44. Status | Traffic Statistics | PTP page
PTP Status
Click [Refresh] to update this section with its most recently accumulated statistics.
These status parameters are read-only and cannot be changed. Note the following:
Row Title
(from top)
Description
PTP Offset
Displays the offset, in seconds, between the modem’s slave clock and its master.
LAN State
Displays the state for the clock on the LAN side:
• The State displays as “Slave” when Grandmaster is set to LAN port using the
‘Configuration | ANT | PTP’ page (see Sect. 7.5.4.3.11.1).
• The State displays as “Master” when Grandmaster is set to WAN port using the
‘Configuration | ANT | PTP’ page (see Sect. 7.5.4.3.11.1).
