CDM-625A Advanced Satellite Modem MN-CDM625A
Introduction Revision 4
1–10
1.3.9 Physical Features
1.3.9.1 Dimensional Envelope
All dimensions are in inches. Dimensions shown in parentheses are in metric units (mm).

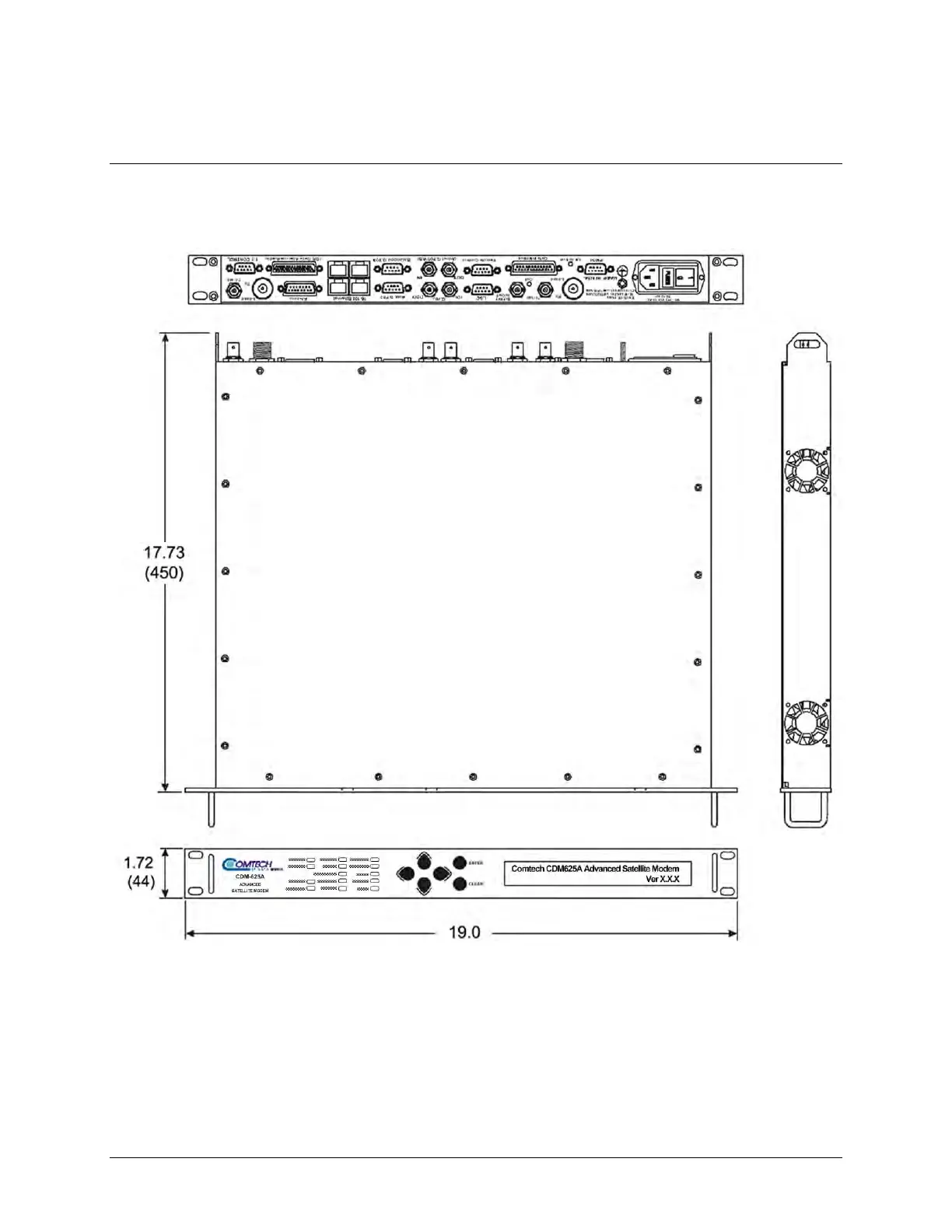

Figure 1-2. CDM-625A Dimensional Envelope
