Comtech EF Data CDM-625A - CA-0000164 Adapter Cable; Figure 3-6. CA-0000164 Adapter Cable (DB-9 M  (2 X) RJ-48 F); Table 3-6. CA-0000164 Connector Pinouts

CDM-625A Advanced Satellite Modem MN-CDM625A
Rear Panel Connectors and Pinouts Revision 4
3–11
3.2.2.2.3.2 CA-0000164 Adapter Cable

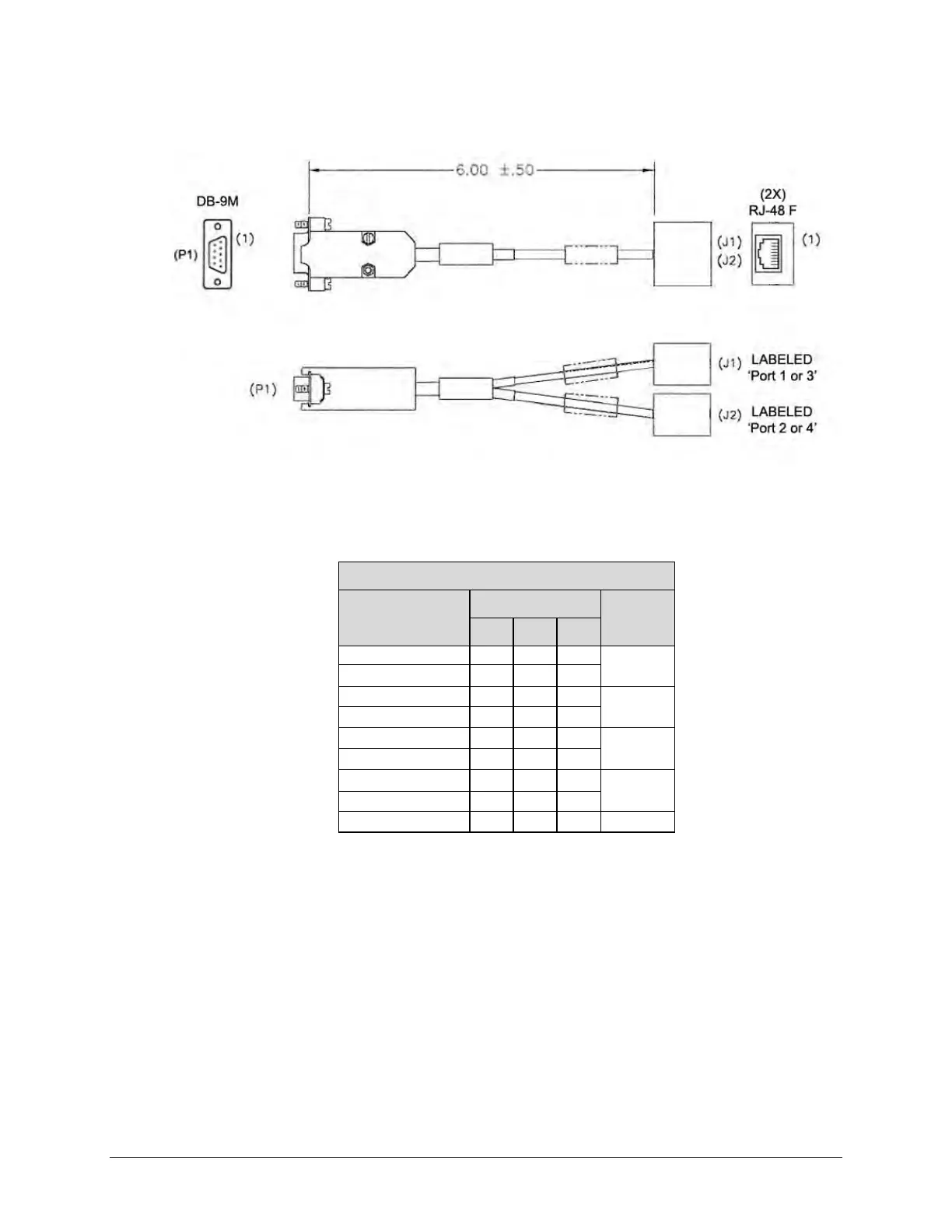

Figure 3-6. CA-0000164 Adapter Cable (DB-9M  (2X) RJ-48F)
Table 3-6. CA-0000164 Connector Pinouts
Table ordered by Signal Function
Signal Function
Connector
Twisted
Pair
P1 J1 J2
Port 1 or 3 Tx In (+)
5
1
––
X
Port 1 or 3 Tx In (–) 9
2 ––
Port 1 or 3 Rx In (+)
4
4 ––
X
Port 1 or 3 Rx In (–) 8
5 ––
Port 2 or 4 Tx In (+)
7
–– 1
X
Port 2 of 4 Tx In (–) 2
–– 2
Port 2 or 4 Rx In (+) 6
–– 4
X
Port 2 or 4 Rx In (–) 1
––
5
GND 3
3
3
––
