CDM-625A Advanced Satellite Modem MN-CDM625A
Ethernet-based Remote Product Management Revision 4
7–57
7.5.4.3.9 Configuration | BUC (Block Up Converter)
Chapter 10. CDM-625A ODU (TRANSCEIVER, BUC, LNB) OPERATION
After configuring the CDM-625A for L-Band operation, and when a Block Up Converter (BUC) is
installed, you may use this page to configure its operating parameters and to view the BUC
operational status.

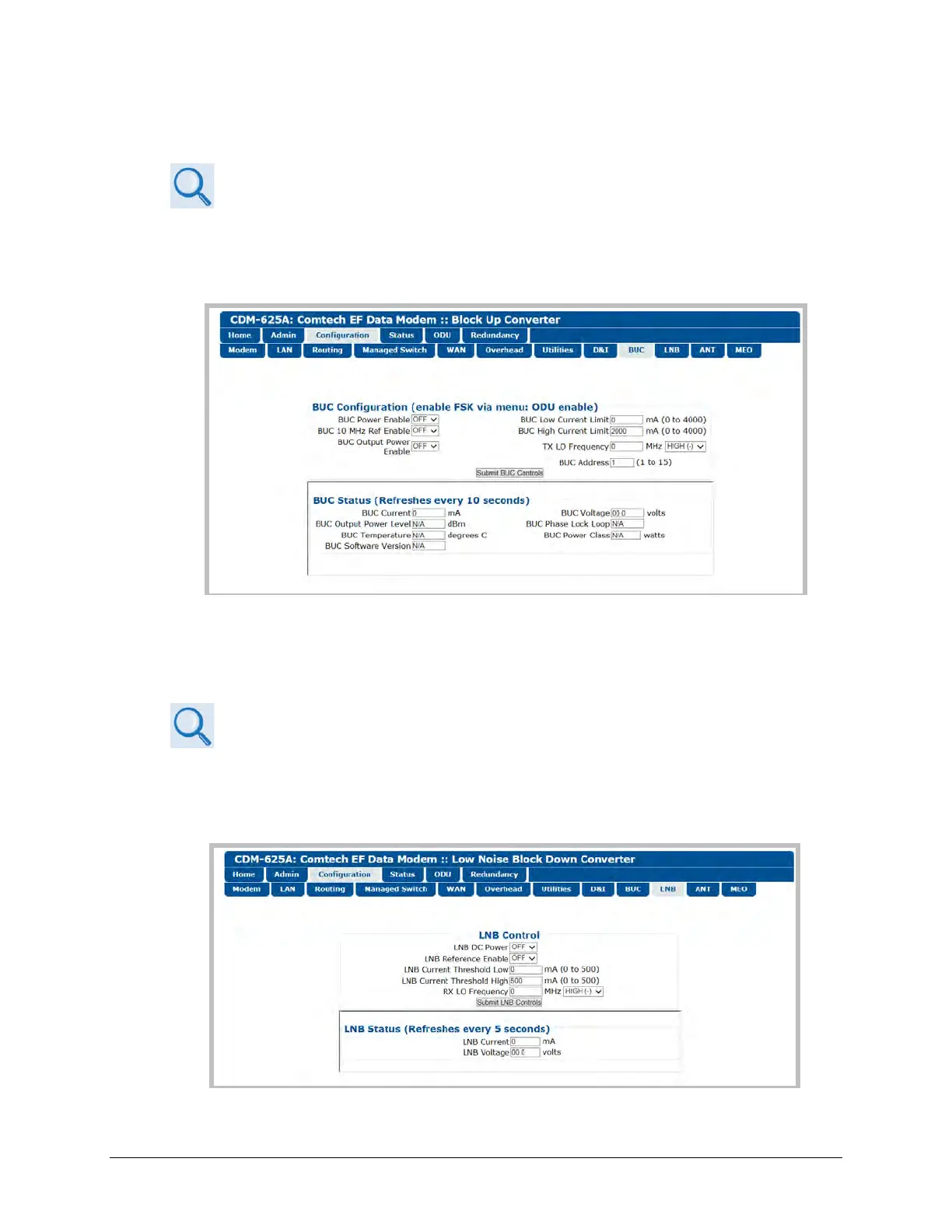

Figure 7-29. Configuration | BUC page
7.5.4.3.10 Configuration | LNB (Low Noise Block Down Converter)
Chapter 10. CDM-625A ODU (TRANSCEIVER, BUC, LNB) OPERATION
After configuring the CDM-625A for L-Band operation, and when a Low Noise Block Down
Converter (LNB) is installed, you may use this page to configure its operating parameters and to
view the LNB operational status.
Figure 7-30. Configuration | LNB page
