10.4.2.4 ODU Pages
All ODU pages are viewable with all three levels of user login. However, you may
submit changes to the ‘ODU | Config’ and ‘ODU | Utilities’ pages only if you have
Administrative or Read/Write privileges.
When configuring the CDM-625A for 70/140 MHz operation, use the ‘ODU (Outdoor Unit)’
pages to control and monitor the CSAT-5060 or KST-2000A/B Outdoor Unit that is connected via
FSK to the CDM-625A.
ODU Comms must be Enabled, and the CDM-625A must be configured for 70/140
MHz operation, in order to fully access the ‘ODU | Config’, ‘ODU | Status’, and ‘ODU
| Utilities’ pages.
If the CDM-625A is otherwise configured for L-Band operation and selection of the
‘ODU | Config’, ‘ODU | Status’, and ‘ODU | Utilities’ pages is attempted, the
following error message displays:
When you configure the CDM-625A for L-Band operation, use the ‘ODU | Enable’ page to
enable FSK operation for BUC products.
Select the Enable, Config, Status, or Utilities tab to continue.
10.4.2.4.1 ODU | Enable
Use this page to enable or disable communications with CSAT-5060 or KST-2000A/B ODUs for
70/140 MHz operation, or LPOD BUCs for L-Band operation (see Sect. 10.4.2.1 Configuration |
BUC (Block Up Converter)).

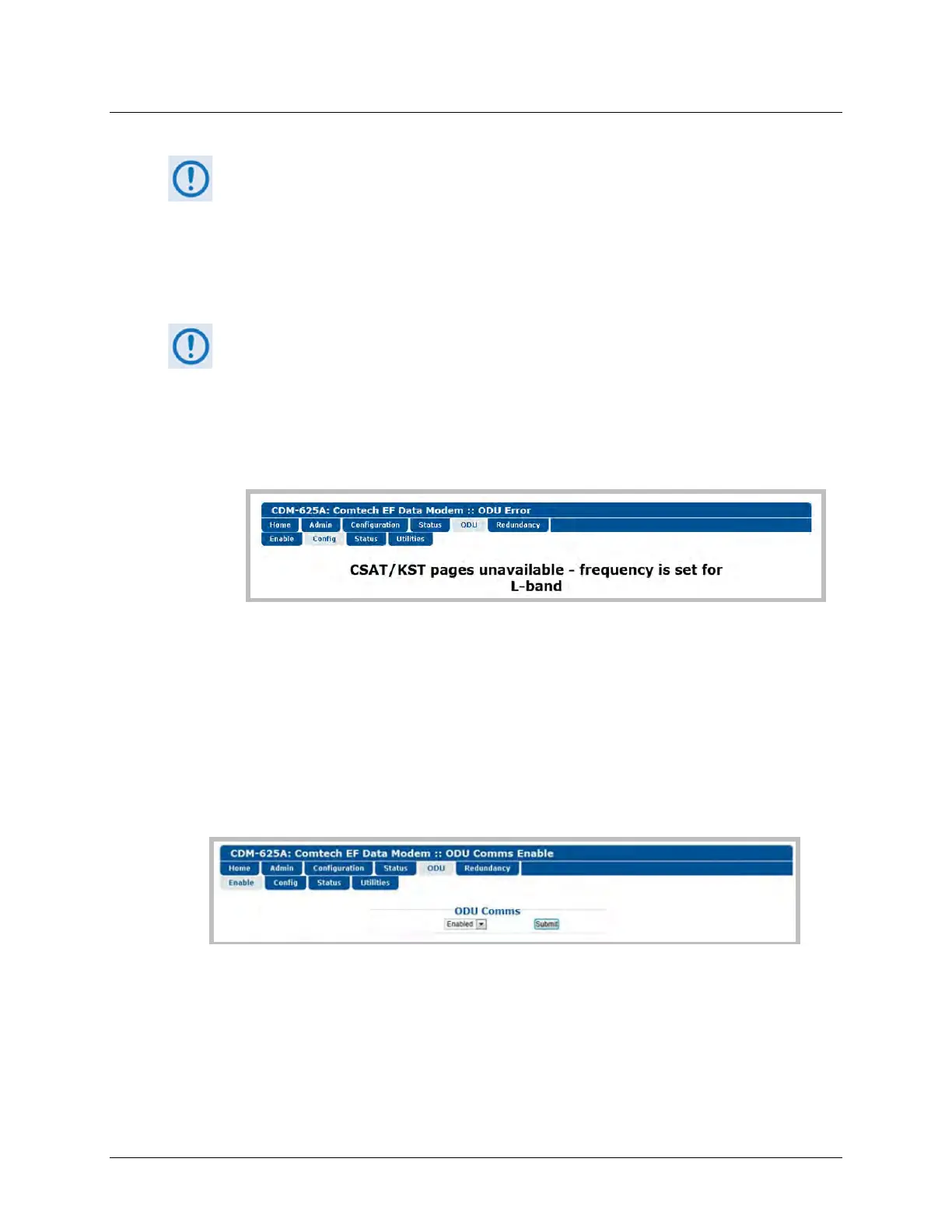

Figure 10-8. ODU | Enable page
ODU Comms
Use the drop-down list to select ODU operation as Disabled or Enabled, and then click [Submit].
If you encounter a communications issue – e.g., an ODU is either physically not present or the
ODU Comms cable is not connected to the CDM-625A – the following error page displays after
clicking [Submit]:
