CDM-625A Advanced Satellite Modem MN-CDM625A
Ethernet-based Remote Product Management Revision 4
7–64
7.5.4.4 Status Pages
The Status pages provide you with status, event logging, and operational statistics windows.
Click the Modem Status, Modem Logs, Modem Info, Traffic Statistics, or – when you install
and
enable
the optional IP Packet Processor card – the Performance tab to continue.
7.5.4.4.1 Status | Modem Status
Use this page to view read-only status window pertaining to:
• Alarms • Rx Parameters • AUPC
• CnC (Carrier-in-Carrier) • ACM* • General Status
• Fractional CnC Counters

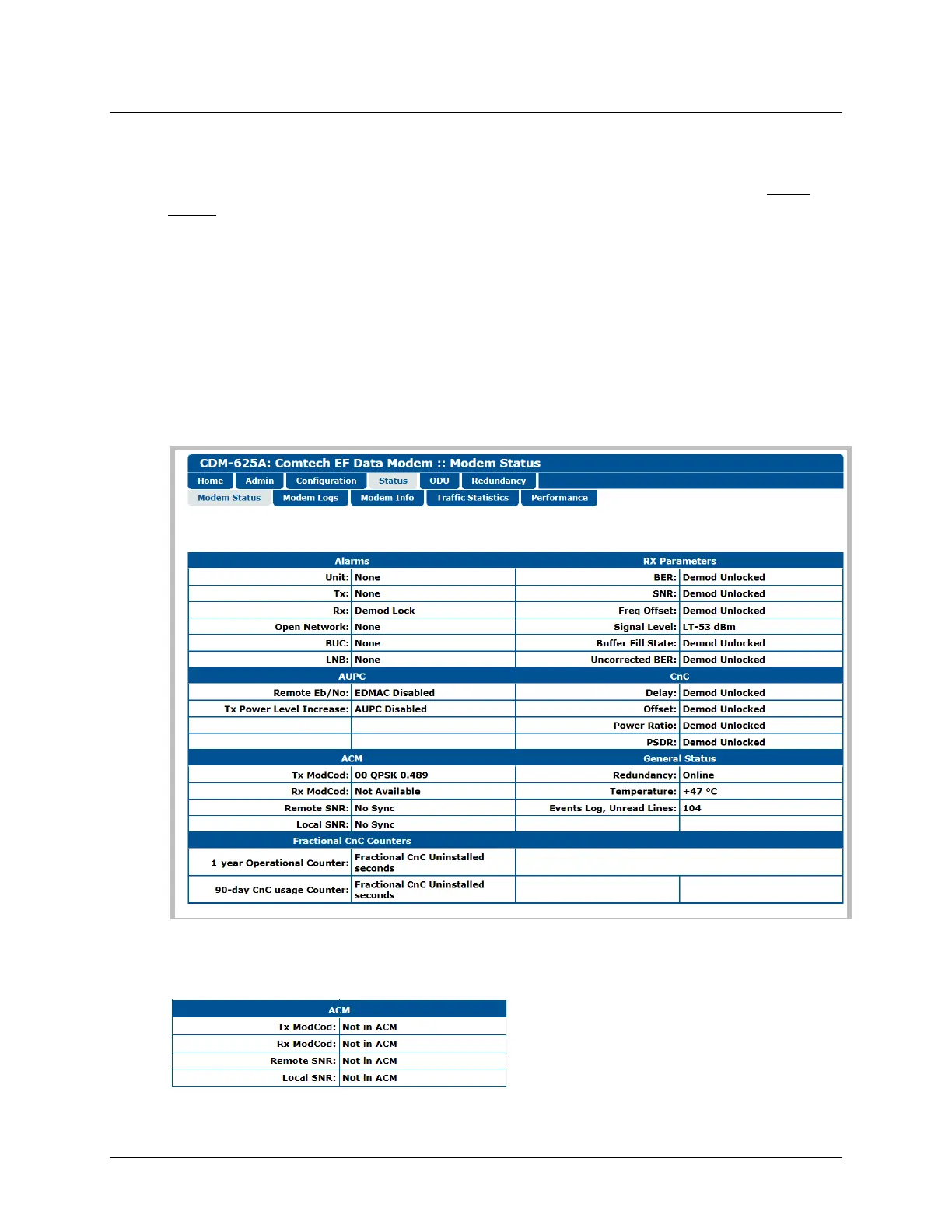

Figure 7-34. Status | Modem Status page (IP-ACM or V2-ACM Mode Active)
*When a non-ACM mode is active, the ACM section of this page appears as follows:
