Rear Panel Connectors and Pinouts Revision 4
3–5

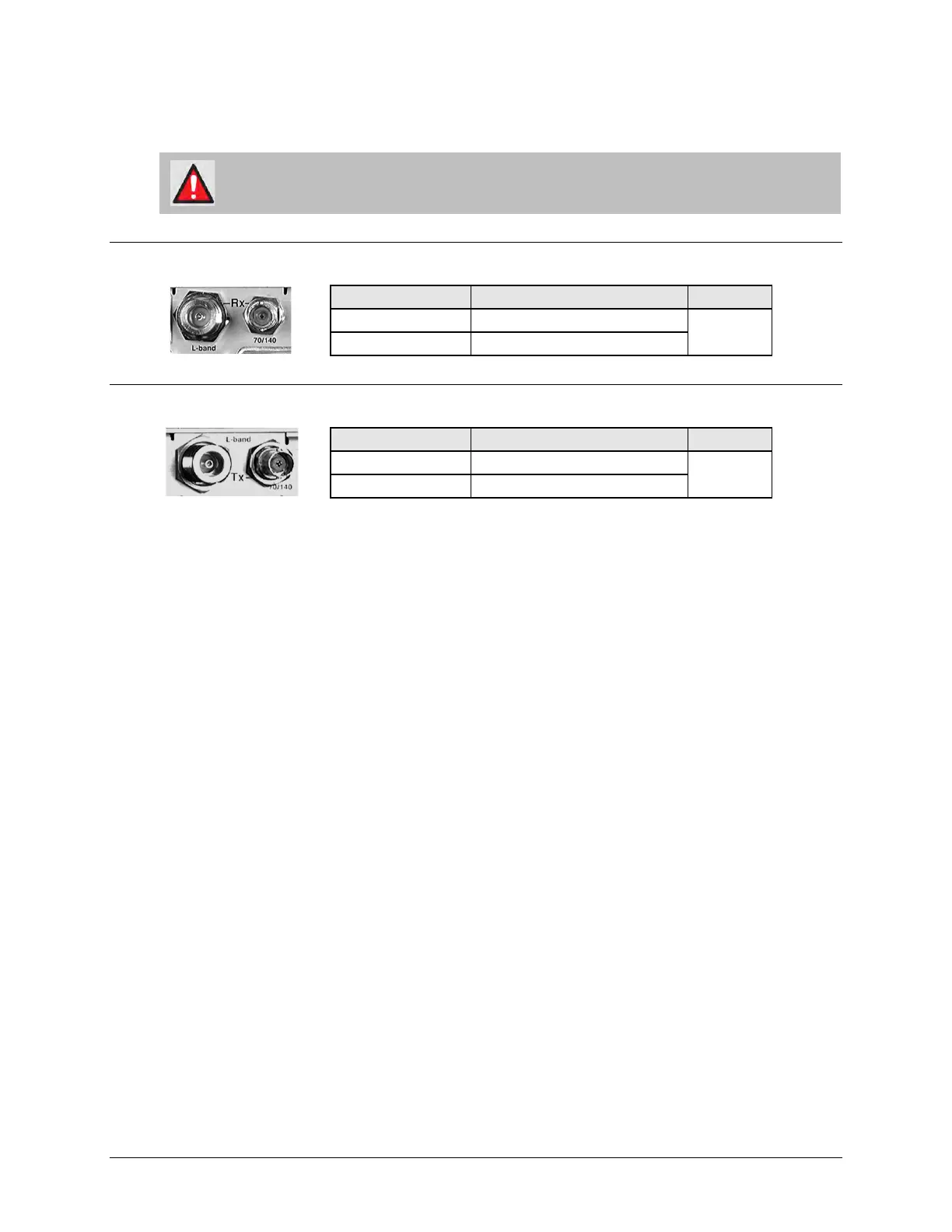

3.2.1 IF Connection Group
WARNING! THERE MAY BE DC VOLTAGES, UP TO A MAXIMUM OF 48 VOLTS,
PRESENT ON THE TYPE ‘N’ RX AND TX IF CONNECTORS.
3.2.1.1 Rx IF Connectors
Connector Type
Description
Direction
Type ‘N’
Rx IF signal, L- band
In
BNC
Rx IF signal, 70/140 MHz band
3.2.1.2 Tx IF Connectors
Connector Type Description Direction
Type ‘N’ Tx IF signal, L- band
Out
BNC
Tx IF signal, 70/140 MHz band
