7.5.4.3.8 Configuration | D&I (Drop and Insert)

• For D&I configuration information: Chapter 6. FRONT PANEL OPERATION

• For D&I functionality overview: Appendix E. CLOCK MODES

AND DROP AND

INSERT (D&I).

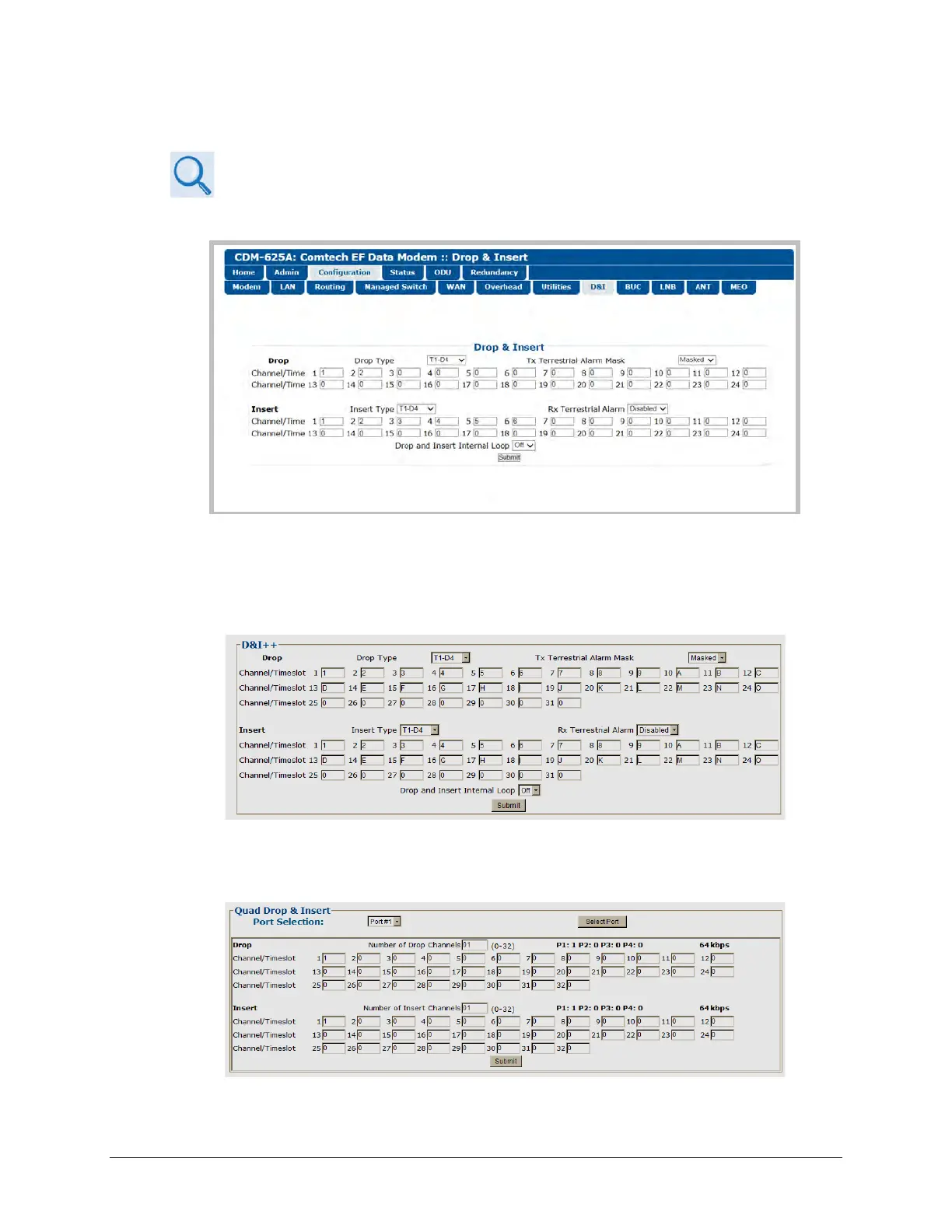

Figure 7-28. Configuration | D&I page (Selected Framing Mode = D&I)

The appearance of this page is dependent on the framing mode selected on the ‘Configuration |

Modem’ page (Sect. 7.5.4.3.1). If the selected framing mode is D&I++, the section heading and

the available parameters adjust accordingly:

If the selected framing mode is Quad Drop & Insert, the section heading and the available

parameters adjust accordingly:

Click [Submit] to save.
