7.5.4.3.5.1.2 Configuration | WAN | QoS Pages – DiffServ Mode
QoS can be set to DiffServ Mode to make it fully compliant to the Differentiated Services QoS
RFC (Request For Comments) standards.
Sect. R.3.3.2 Layer 3 QoS List of Supported RFCs (Requests for Comment) –
Appendix R. QUALITY of SERVICE (QoS)

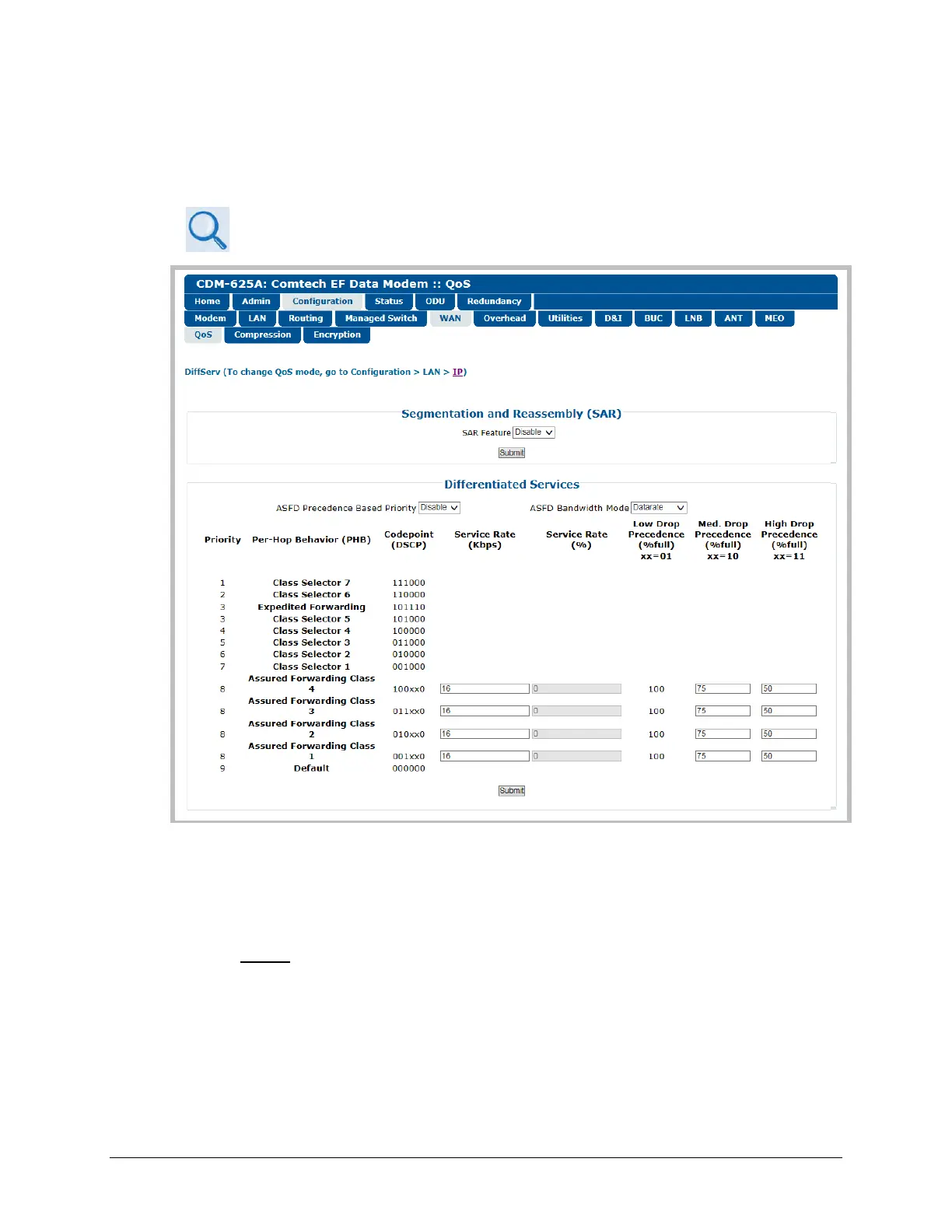

Figure 7-22. Configuration | WAN | QoS page (DiffServ Mode)
Differentiated Services
ASFD Precedence Based Priority – Use the drop-down list to select Disable or Enable:
• In the default disabled state, the priorities of all Assured Forwarding Classes are the same
(Priority = 8).
• When enabled, the priorities for Assured Forwarding Classes are the same as the priorities
of the corresponding Class Selector.
