Comtech EF Data CDM-625A - Configuration | LAN; Configuration | LAN | IP

CDM-625A Advanced Satellite Modem MN-CDM625A
Ethernet-based Remote Product Management Revision 4
7–25
7.5.4.3.2 Configuration | LAN Pages
Click the IP tab, the ARP tab (only after you install and enable the optional IP Packet Processor
card), or the Port Monitoring tab to continue.
7.5.4.3.2.1 Configuration | LAN | IP

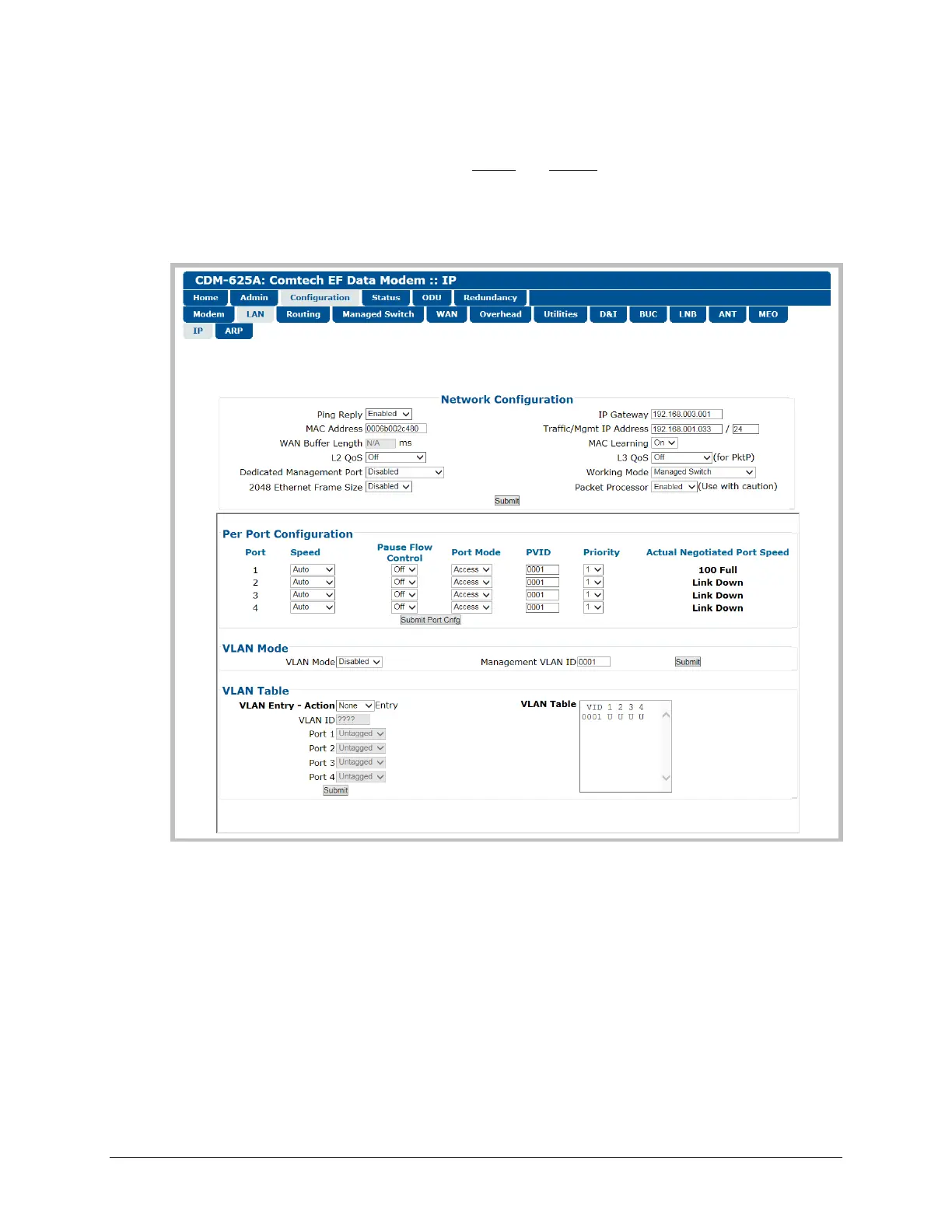

Figure 7-13. Configuration | LAN | IP page
Network Configuration
• Ping Reply – Use the drop-down list to select Ping Reply as Disabled or Enabled. When
Enabled, the modem responds to ICMP ping requests.
• MAC Address – This parameter is read-only and cannot be changed.
• WAN Buffer Length – Enter a value between 20ms and 400ms, in 20ms increments.
• L2 QoS (Layer 2 QoS) – Use the drop-down list to select this feature as Off, VLAN only, Port
only, or VLAN & Port.
