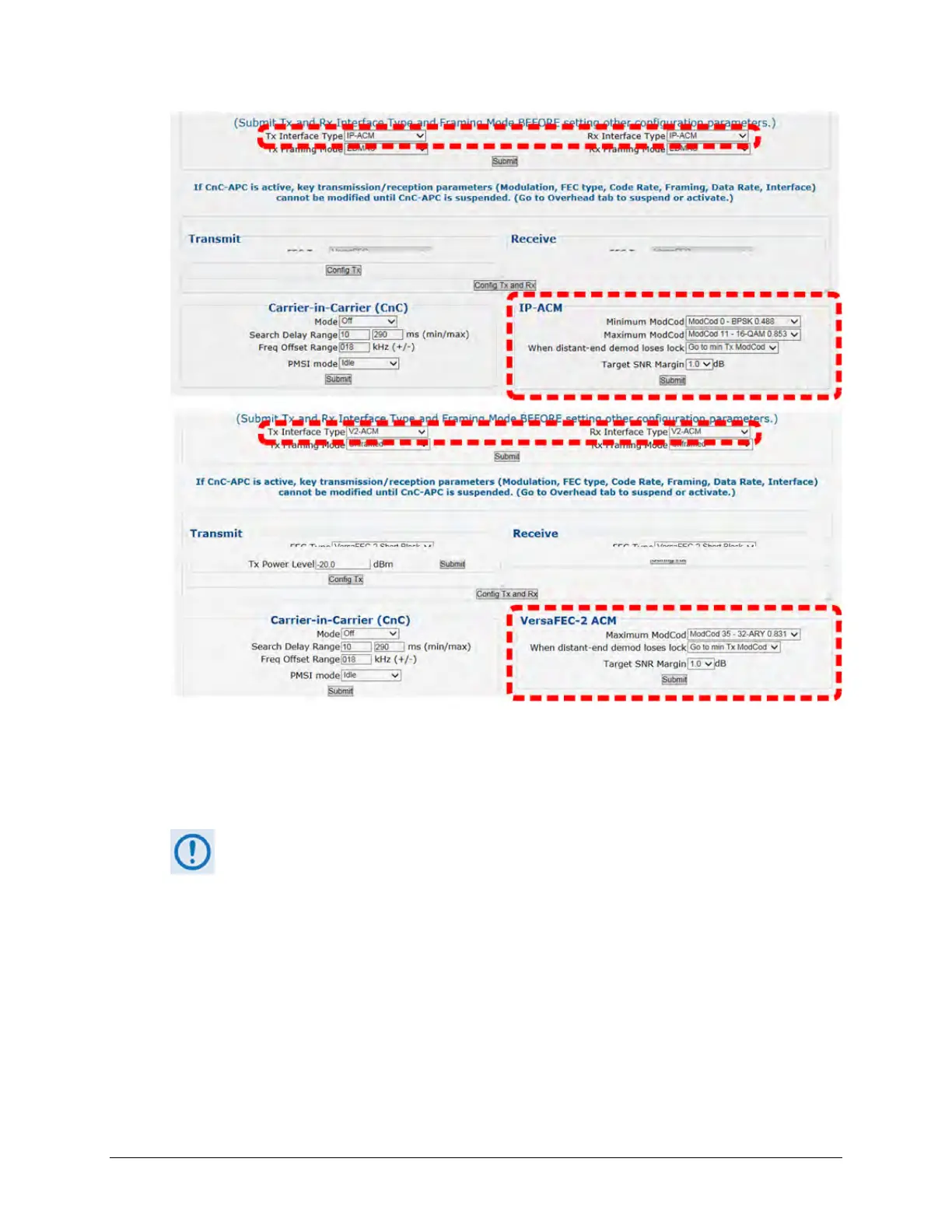

Figure 7-12. Configuration | Modem page (ACM Modes)
Use the ‘Configuration | Modem’ page to configure these modem operating parameters:
• Tx / Rx Interfaces and Framing* • Carrier-in-Carrier (CnC) Parameters
• Tx / Rx Operating Parameters • IP-ACM or VersaFEC-2 ACM Parameters
*The Tx / Rx Interface Types and Framing Modes have higher priority than other
parameters, and should be configured before setting other parameters.
The page appearances changes with your selection of operating mode. Figure 7-11 shows this
page as it appears when any non-ACM operating mode is active. When you select IP-ACM or
V2-ACM mode, Figure 7-12 shows addition of the pertinent ACM section, to the right of the
Carrier-in-Carrier (CnC) section.
Detailed information on operation and configuration settings is provided elsewhere in this
manual.
Typical for all page sections, click [Submit] to save any changes and settings.
