9.3.4.4.1 Home > Network > VLAN > VLAN Table > VLAN #

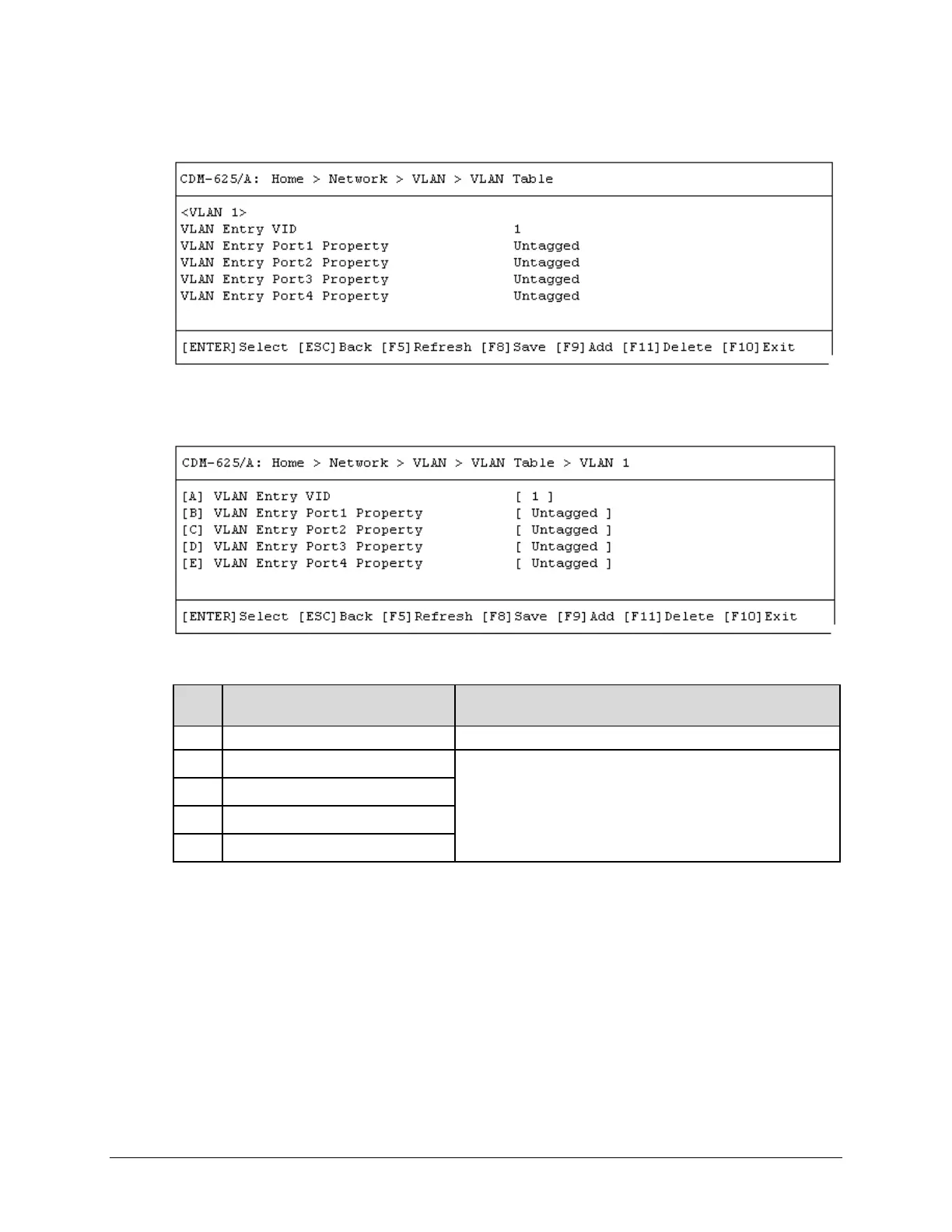

Open the VLAN Table from the nested VLAN submenu. Use the ↑↓ arrow keys to scroll through

the available entries. You may also select a header (e.g., <VLAN 1>) and press [ENTER] to view,

in a standalone window, a specific VLAN page as shown in th

is example:

Each available VLAN # page contains the following options:

Hot

Key

Dialog Window Option Entry

VLAN Entry VID

Enter a value from 1 to 4095

B VLAN Entry Port1 Property

Typical for each entry – Use the ↑↓ arrow keys to select Tagged,

Filtered, or Untagged

C VLAN Entry Port2 Property

D VLAN Entry Port3 Property

E VLAN Entry Port4 Property

Typical for any accessed VLAN table, press a hot key to open a dialog window. Otherwise, press

[ESC] twice to return to the Network submenu.
