QoS Rules Table

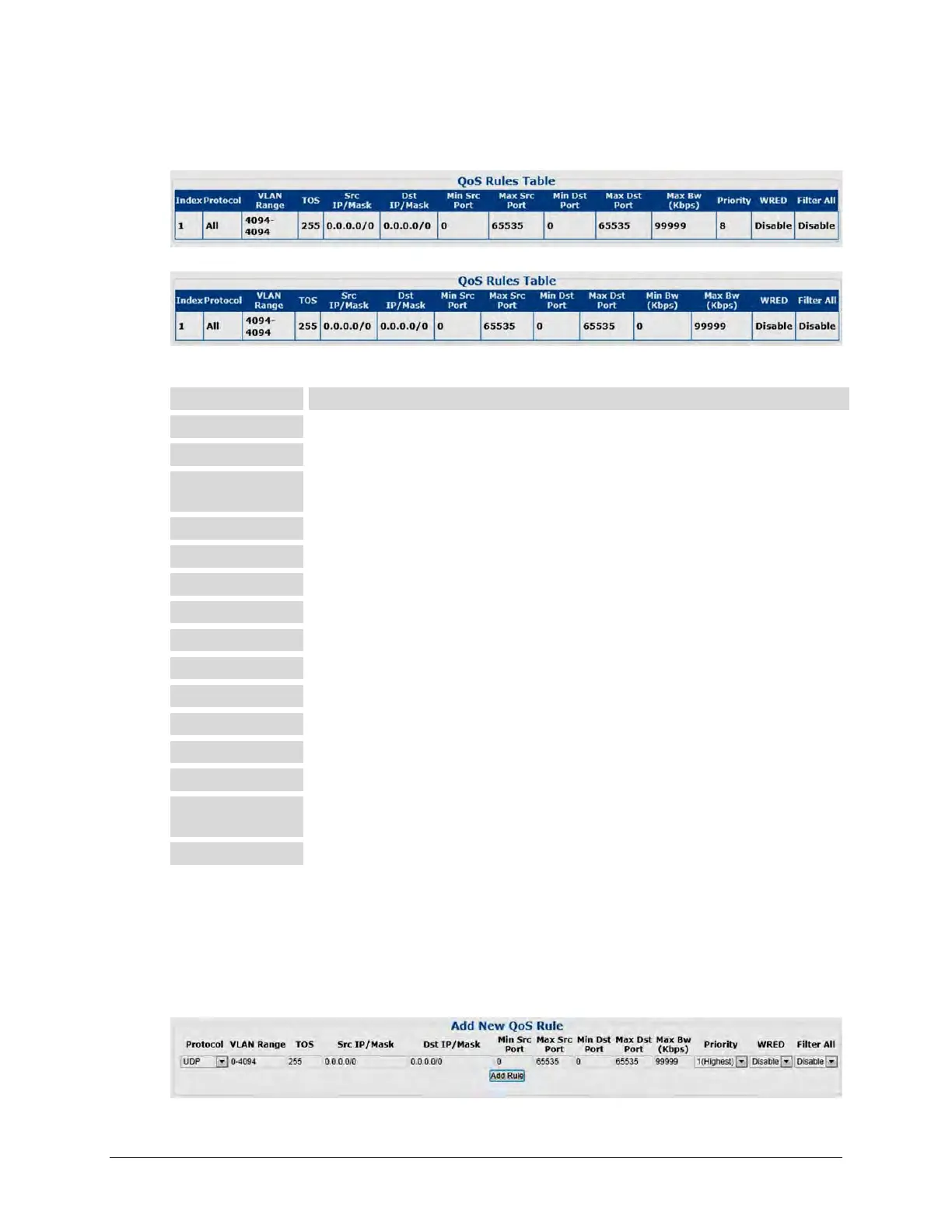

For the ‘Max/Priority’ page:
For the ‘Min/Max’ page:
This section displays all existing QoS Rules Table entries. From left to right:
Column
Description
Index
This is the internal table index that is automatically assigned and cannot be edited.
Protocol
Specifies the protocol for the specific rule.
VLAN Range
Specifies the minimum-to-maximum range of VLAN IDs (applicable only in Managed Switch
Mode)
TOS
Specifies the Type Of Service
Src IP/Mask
Identifies the Source IP Address/Mask in the form XXX.XXX.XXX.XXX/YY.
Dst IP/Mask
Identifies the Destination IP Address/Mask in the form XXX.XXX.XXX.XXX/YY.
Min Src Port
Specifies the Minimum Source Port.
Max Src Port
Specifies the Maximum Source Port.
Min Dst Port
Specifies the Minimum Destination Port.
Max Dst Port
Specifies the Maximum Destination Port.
Max BW (Kbps)
(“Max/Priority” page only) Specifies the maximum bandwidth value.
Min BW (Kbps)
(“Min/Max” page only) Specifies the minimum bandwidth value.
Priority
(“Max/Priority” page only) Specifies the priority established for the specific rule.
WRED
Specifies the WRED (Weighted Random Early Detection) setting for the specific rule as
Disable or Enable.
Filter All
Specifies the flow filter setting for the specific rule as Disable or Enable.
Add New QoS Rule
This section allows you to directly add a new rule entry. Note that the index will automatically
increment to the next available number.
For the “Max/Priority” page:
