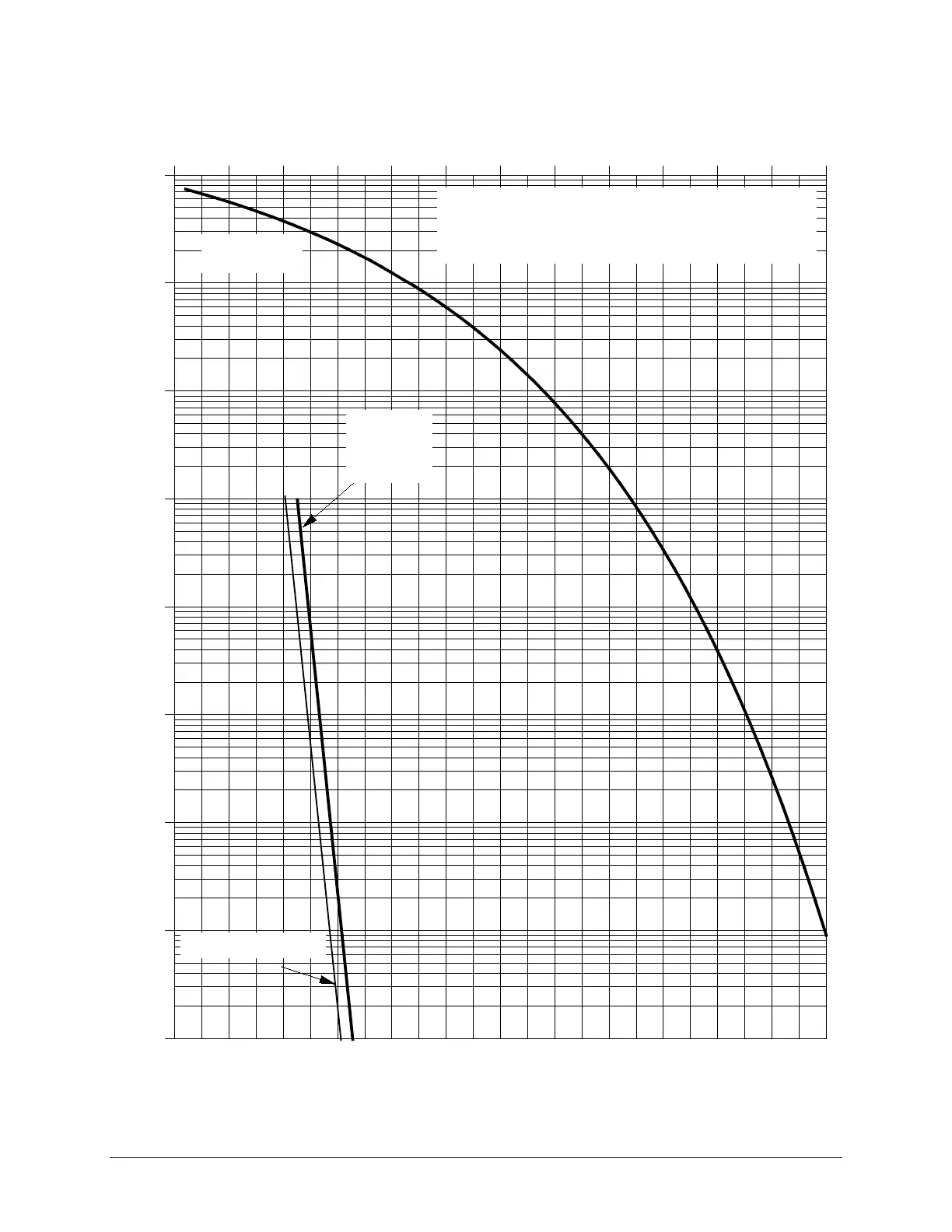

Figure B-11. Turbo Product Code Rate 5/16 BPSK
1E-9
1E-8
1E-7
1E-6
1E-5
1E-4
1E-3
1E-2
1E-1
1 2 3 4 5 6 7 8 9 10 11 12
Eb/No in dB
Uncoded
BPSK/QPSK
Comtech Turbo Product Codec
Rate 5/16 BPSK
1 2 3 4 5 6 7 8 9 10 11 12
BER
Spec limit
Rate 5/16
BPSK
Typical performance
