CDM-625A Advanced Satellite Modem MN-CDM625A
Appendix E Revision 4
E–3
• No framing (EDMAC, etc.) may be used.
• No RS coding may be used.
• RS-422, V.35, HSSI, and LVDS are the only interfaces supported and used on the Type ‘D’ 25-
pin connector.

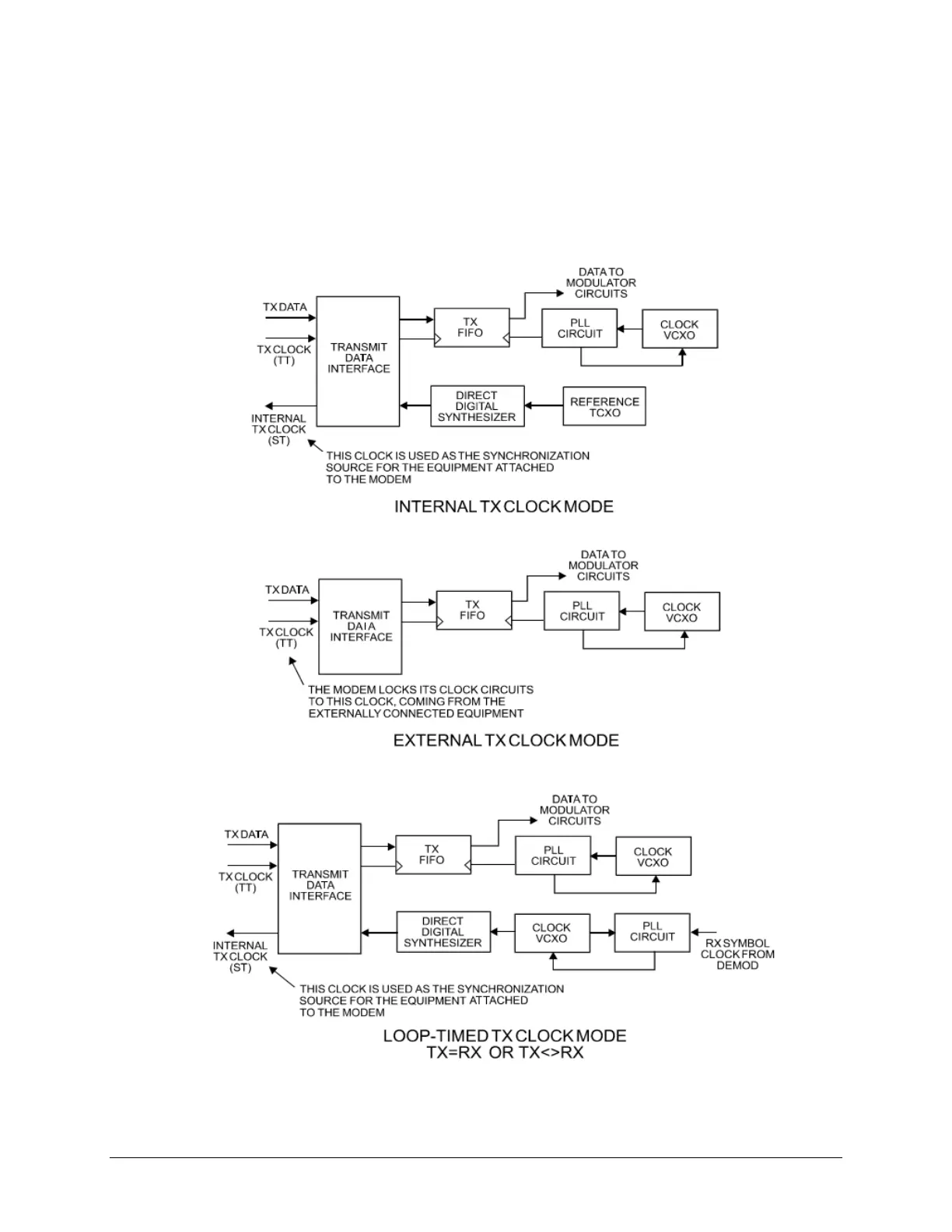

Figure E-1. TX Clock Modes
