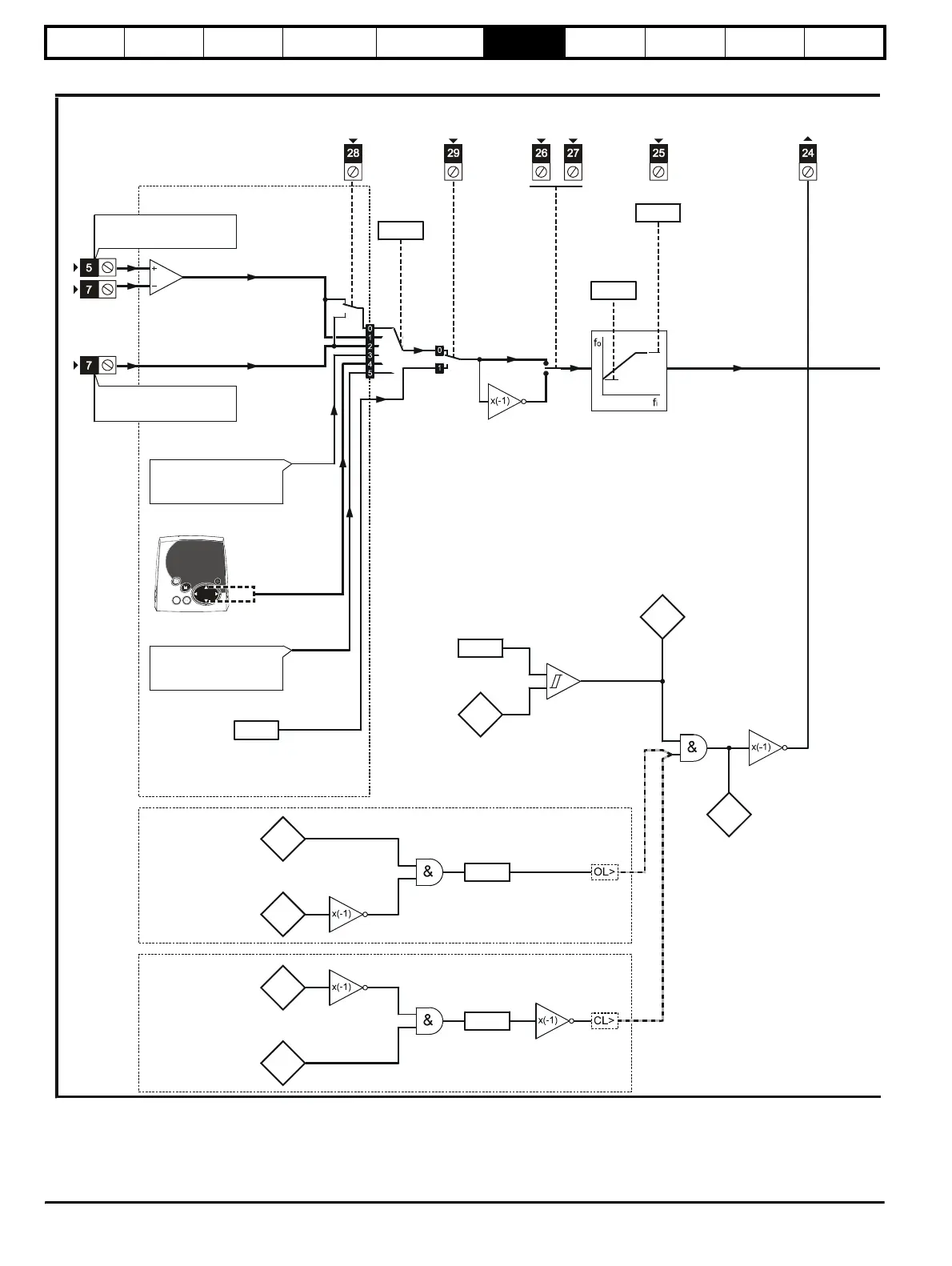

Figure 6-7 Macro 7 Brake control logic diagram
Reference selection
Frequency/speed ref. 1
Frequency/speed ref. 2
Precision reference
(not used with Menu 0)
Motor current
magnitude
Preset references
(see the Unidrive SP
Advanced User Guide)
OL> (Not used)
CL> JOG SELECT
RUN
FORWARD
RUN
REVERSE
Current
threshold
RESET
0.14
0.05
Reference
selector
ANALOG INPUT 1 /
INPUT 2 select
Minimum
frequency/
speed clamp
0.01
0.02
0.19
BRAKE
RELEASE
Maximum
frequency/
speed
clamp
Jog reference
(see the Unidrive SP
Advanced User Guide)
Drive healthy
indicator
0.16
At zero speed
indicator
0.17
Brake release
indicator
0.18
Brake
release
delay
0.20
Current detected
indicator
0.15
1.05
Reference enabled
indicator
(see the Unidrive
Advanced User Guide)
1.11
At zero speed
indicator
0.17
Brake
application
delay
0.20
Menu 0 changes from default configuration
