12.2.2 Pre-Defined Mapping Configurations
12.2.2.1 Four Channels
This configuration is defined as follows (Figure 111):
● Ch. 01 is Left (L): Output ch.01 will be playing the CPL's Left (L) audio channel.
● Ch. 02 is Right (R): Output ch.02 will be playing the CPL's Right (R) audio channel.
● Ch. 03 is Center (C): Output ch.03 will be playing the CPL's Center (C) audio channel.
● Ch. 04 is Input: Ch.04 is pass-through, meaning the output channel X will be playing the
CPL's audio channel X.
● Ch. 05 is Surround (S): Output ch.05 will be playing the CPL's Surround (S) audio
channel.
● Ch. 06 – Ch. 14: These channels are pass-through, meaning the output channel X will
be playing the CPL's audio channel X. X will be a value between 6 and 14.
● Ch. 15 is HI: Output ch.15 will be playing the CPL's Hearing Impaired (HI) audio
channel.
● Ch. 16 is VI: Output ch.16 will be playing the CPL's Narration (VI) audio channel.

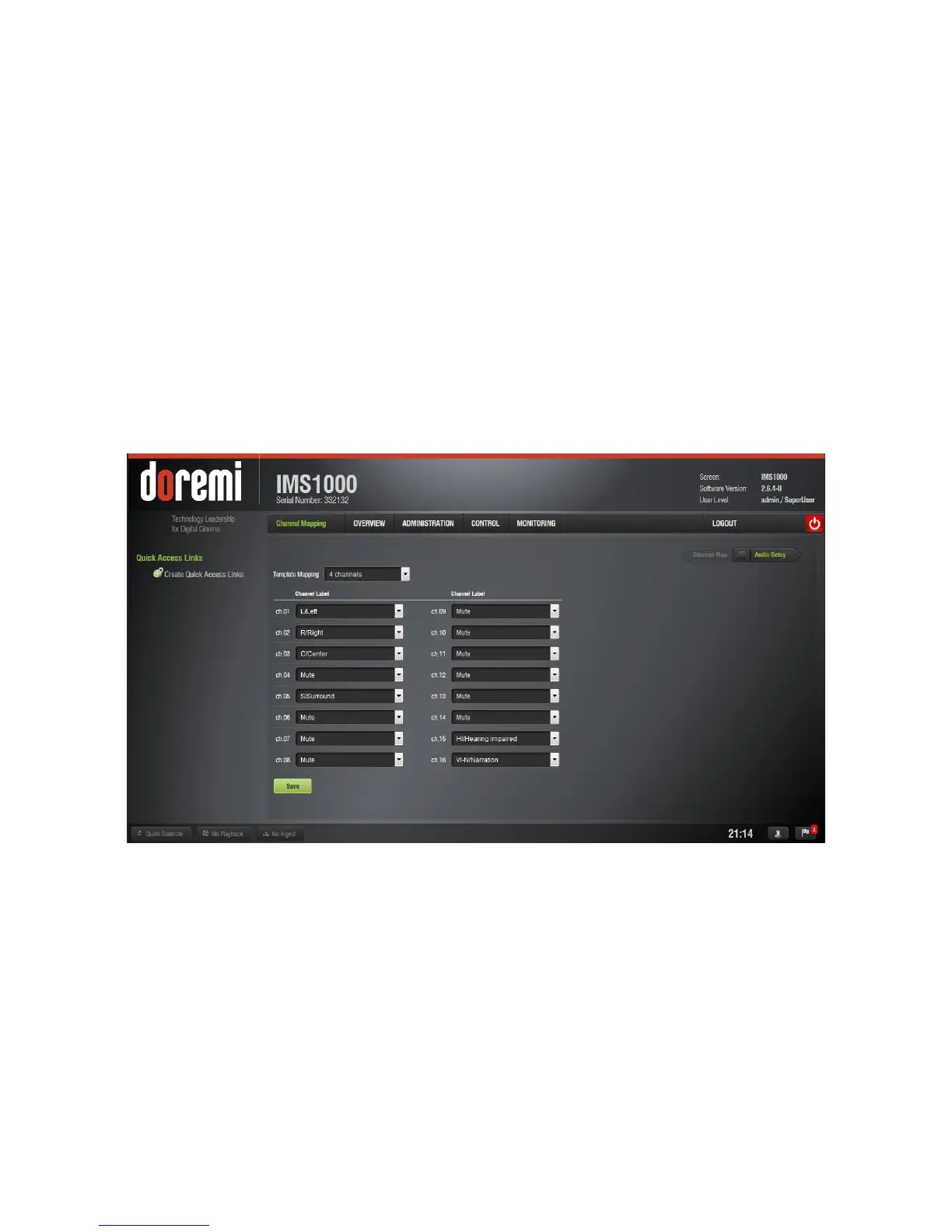

Figure 111: Audio Mapping Set to Four Channels
