IMS.OM.002949.DRM Page 29 of 310 Version 1.4
Doremi Labs
3.3 Environmental Specifications
Temperature Range (Ambient):
Operating: 10C to 40C or 50F to 104F
Non-operating: -20C to 60C or -4F to 140F
3.4 Performance / Storage / Power
The IMS1000 uses 3 x 1TB HDDs (2.5”), providing 2TB of media storage
Raid 5 storage is hardware based
The IMS1000 supports up to 4K 60fps and 2K HFR up to 120 fps
The IMS1000 supports 500 Mbits/s playback
Battery: IMS1000 battery is a Panasonic Vanadium rechargeable lithium battery VL3032.
Power < 70W (Power input 12V@6.25A from projector main LVDS connector)
3.5 IMS1000

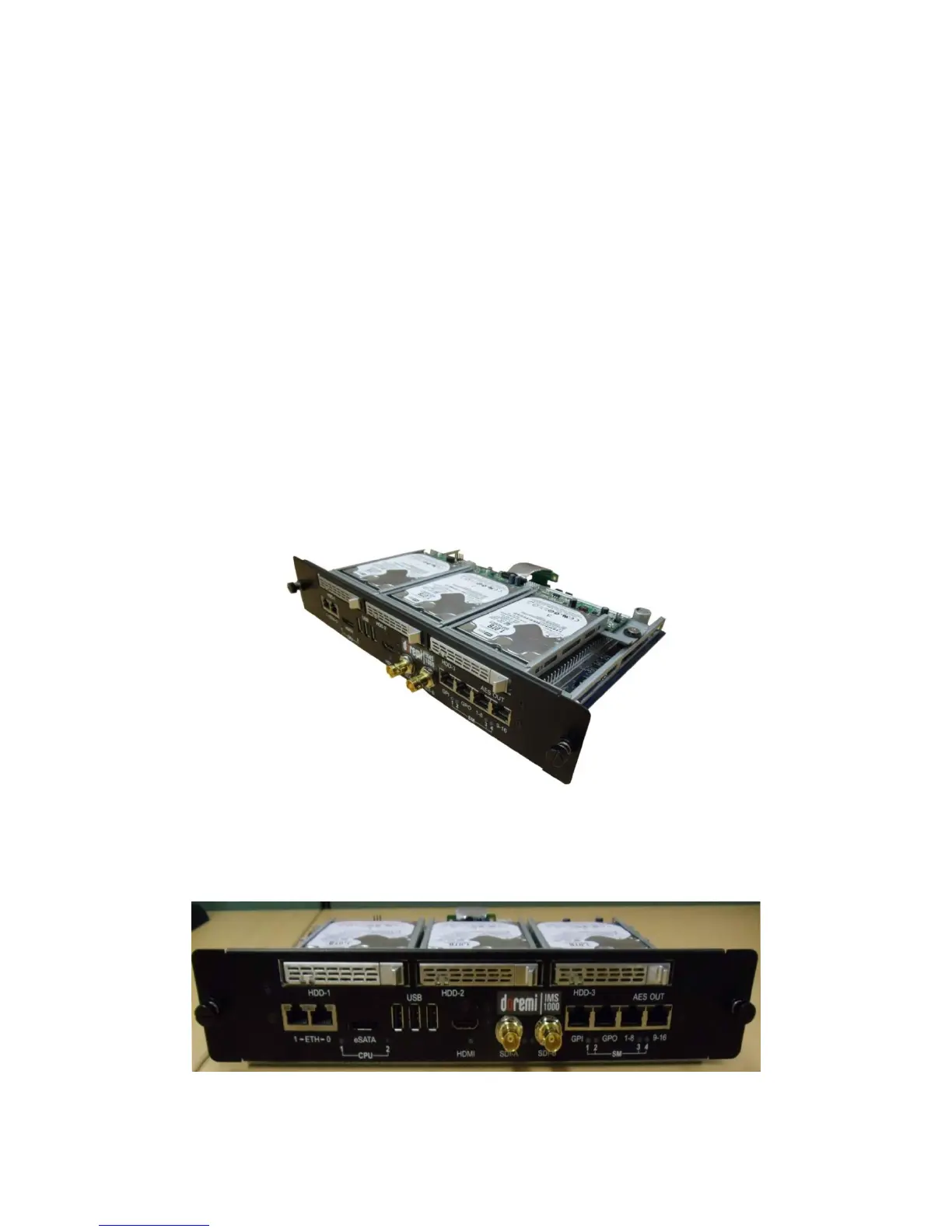

● An IMS1000 is shown below (Figure 1):
Figure 1: IMS1000
3.6 IMS1000 Faceplate Overview
Figure 2: IMS1000 with NEC Faceplate
