13.11.2 Registered Tab
If the device was previously created/registered in the Device Manager GUI, then it will
automatically appear in the "Registered" tab of the Device Controller GUI.
An IMB or Sony SRX Projector will be automatically detected by the Device Controller
application when added to the network.
The following parameters are shown in the Registered tab for the device:
o Name
o Type
o IP
o Port
The "Port" number is automatically populated. Please do not alter this field.
Select the device to control and then click on it. The Device Controller window will
display four tabs that will allow the user to configure, control, and manage the device
(Figure 306).

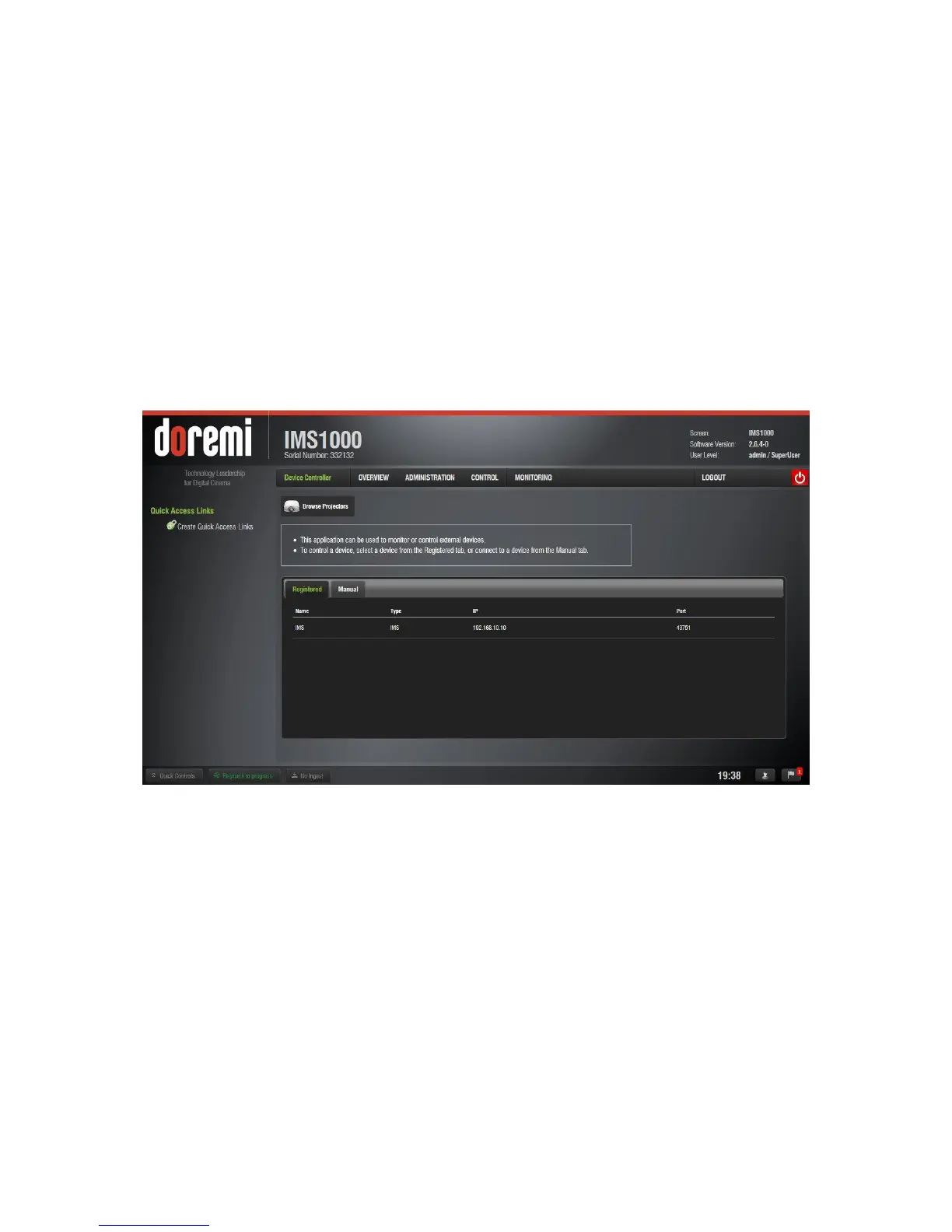

Figure 306: Registered Tab
13.11.2.1 General Tab
The first tab displays and controls the input source and scaling (Figure 307).
