12.2.2.5 Nine Channels
This configuration is defined as follows (Figure 115):
● Ch. 01 is Left (L): Output ch.01 will be playing the CPL's Left (L) audio channel.
● Ch. 02 is Right (R): Output ch.02 will be playing the CPL's Right (R) audio channel.
● Ch. 03 is Center (C): Output ch.03 will be playing the CPL's Center (C) audio channel.
● Ch. 04 is LFE/Screen (Sub-Woofer): Output ch.04 will be playing the CPL's
LFE/Screen (Sub-Woofer) audio channel.
● Ch. 05 is Left Surround (Ls): Output ch.05 will be playing the CPL's Left Surround (Ls)
audio channel.
● Ch. 06 is Right Surround (Rs): Output ch.06 will be playing the CPL's Right Surround
(Rs) audio channel.
● Ch. 07 is Left Center (Lc): Output ch.07 will be playing the CPL's Left Center (Lc) audio
channel.
● Ch. 08 is Right Center (Rc): Output ch.08 will be playing the CPL's Right Center (Rc)
audio channel.
● Ch. 09 is Center Surround (Cs): Output ch.09 will be playing the CPL's Center
Surround (Cs) audio channel.
● Ch. 10 – Ch.14: These channels are pass-through, meaning the output channel X will be
playing the CPL's audio channel X. X will be a value between 10 and 14.
● Ch. 15 is HI: Output ch.15 will be playing the CPL's Hearing Impaired (HI) audio
channel.
● Ch. 16 is VI: Output ch.16 will be playing the CPL's Narration (VI) audio channel.

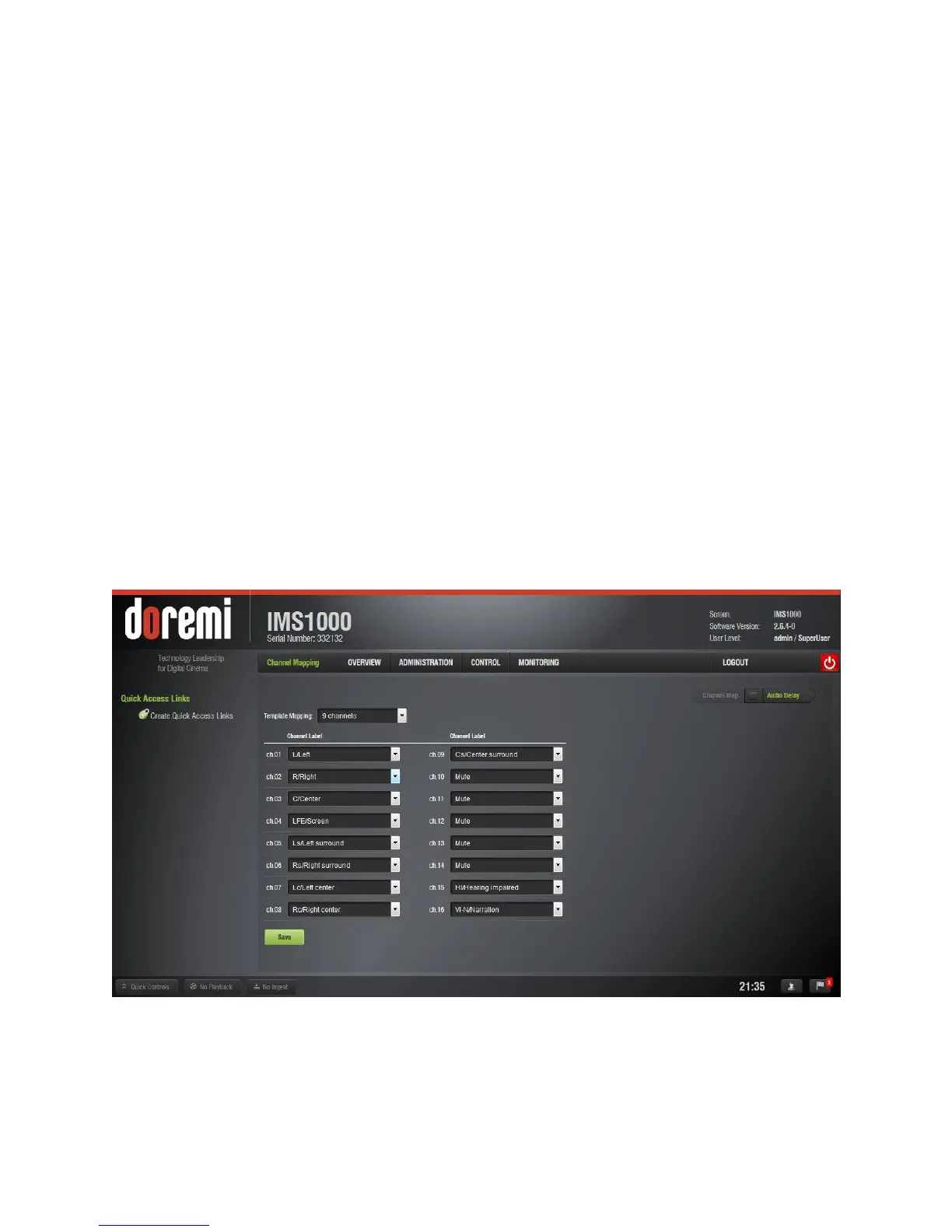

Figure 115: Audio Mapping Set to Nine Channels
