IMS.OM.002949.DRM Page 70 of 310 Version 1.4
Doremi Labs
● Take another shielded CAT5 or CAT6 cable and plug the end into the IMS1000
connector labeled GPO (Figure 71). Install a ferrite core clamp near the connector
closest to the IMS1000. Refer to Section 25 for more information on ferrite core clamp
installation.
● Plug the other end of the shielded CAT5 or CAT6 cable into whichever automation
controller is available or required.

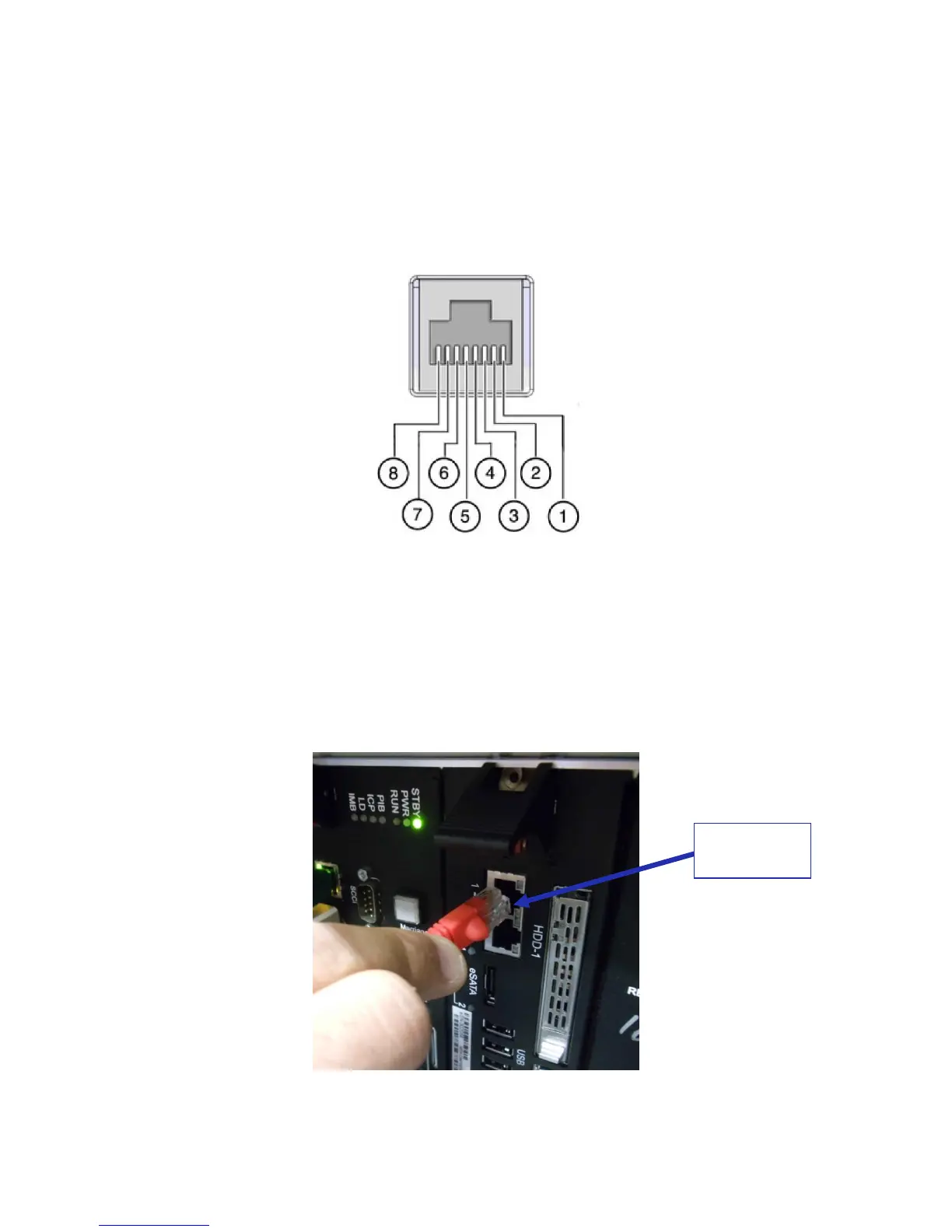

6.4.1 GPI/GPO Pin-Out Information
Figure 72: RJ45 Socket Pin-Out
6.5 Ethernet Cables
Connect an Ethernet cable to the Ethernet connector on the IMS1000 and the other end
of the cable to either a laptop or network switch (Figure 73). Install a ferrite core clamp
near the connector closest to the IMS1000. Refer to Section 25 for more information on
ferrite core clamp installation.
Figure 73: Ethernet Connection
