12.2.2.6 ISDCF
This configuration is defined as follows (Figure 116):
● Ch. 01 is Left (L): Output ch.01 will be playing the CPL's Left (L) audio channel.
● Ch. 02 is Right (R): Output ch.02 will be playing the CPL's Right (R) audio channel.
● Ch. 03 is Center (C): Output ch.03 will be playing the CPL's Center (C) audio channel.
● Ch. 04 is LFE/Screen (Sub-Woofer): Output ch.04 will be playing the CPL's
LFE/Screen (Sub-Woofer) audio channel.
● Ch. 05 is Left Surround (Ls): Output ch.05 will be playing the CPL's Left Surround (Ls)
audio channel.
● Ch. 06 is Right Surround (Rs): Output ch.06 will be playing the CPL's Right Surround
(Rs) audio channel.
● Ch. 07 is HI: Output ch.07 will be playing the CPL's Hearing Impaired (HI) audio
channel.
● Ch. 08 is VI: Output ch.08 will be playing the CPL's Narration (VI) audio channel.
● Ch. 09 is Left Center (Lc): Output ch.09 will be playing the CPL's Left Center (Lc) audio
channel.
● Ch. 10 is Right Center (Rc): Output ch.10 will be playing the CPL's Right Center (Rc)
audio channel.
● Ch. 11 is Left Rear Surround (Lrs): Output ch.11 will be playing the CPL's Left Rear
Surround (Lrs) audio channel.
● Ch. 12 is Right Rear Surround (Rrs): Output ch.12 will be playing the CPL's Right
Rear Surround (Rrs) audio channel.
● Ch.13: Ch.13 is set to D-BOX Primary.
● Ch.14: Ch.14 is set to D-BOX Secondary.
● Ch.15 is Input: Ch.15 is mute, meaning there is no audio output on this channel.
● Ch.16 is Input: Ch.16 is mute, meaning there is no audio output on this channel.

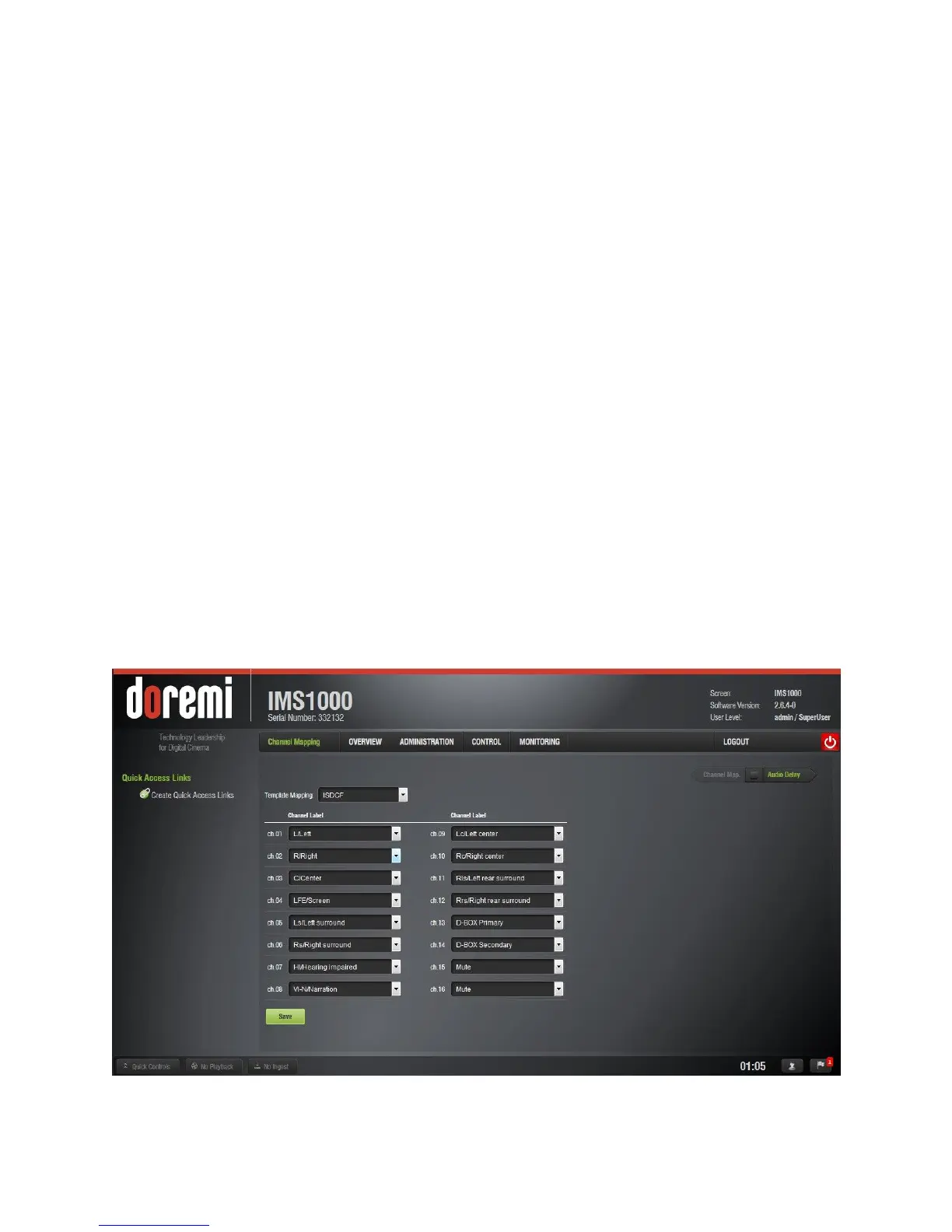

Figure 116: Audio Mapping Set to ISDCF
