Doremi IMS1000 - Page 37

IMS.OM.002949.DRM Page 37 of 310 Version 1.4
Doremi Labs

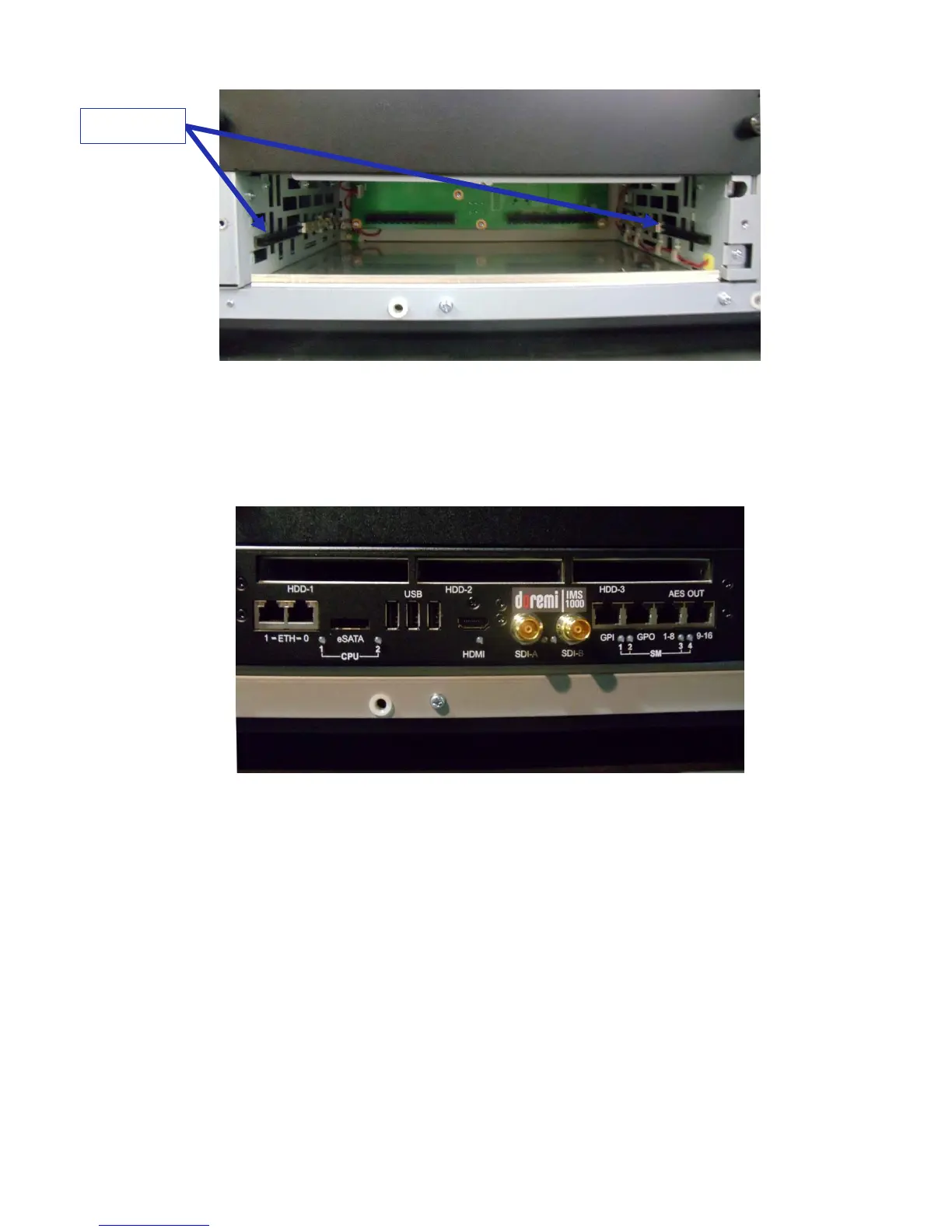

Figure 12: Empty Slot
 Carefully remove IMS1000 from its carton and antistatic bag.
 Gently place the IMS1000 board into the projectors media block slot guiderails on the
inside of the slot (Figure 12 and Figure 13).
Figure 13: Missing HDDs
 Screw in the handles on the side of the IMS1000 board to secure it in the projector
(Figure 14).
Guiderails
