C 11 15

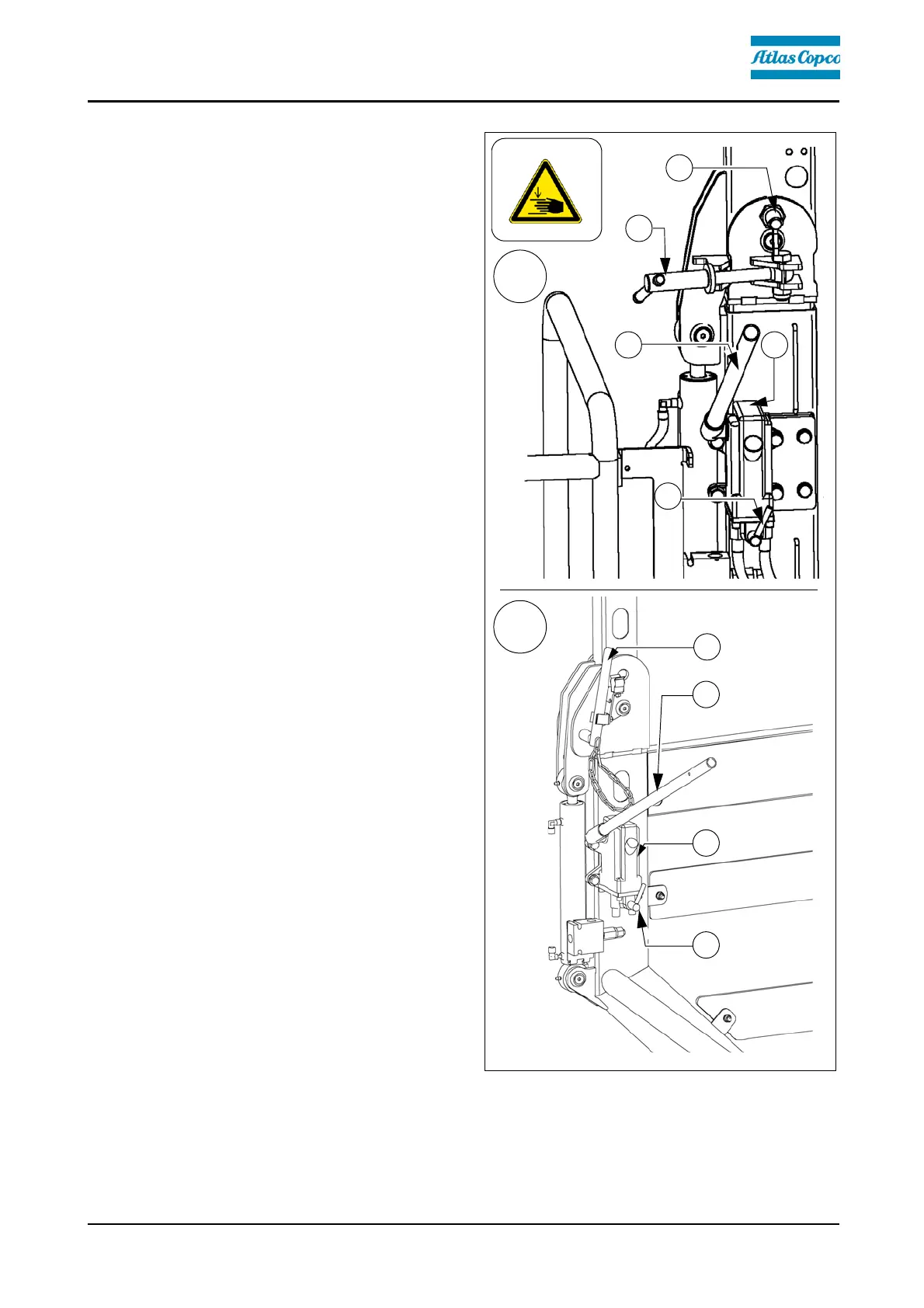

The protective roof can be raised and
lowered with a manual hydraulic pump.
A
The exhaust pipe is lowered or raised to-
gether with the roof.
"Screw lock" version (A)
- Connect the pump lever (1) to the
pump (2).
- Lower the roof: The locks (3) on both
sides of the roof must be released.
- Raise the roof: The locks (4) on both
sides of the roof must be released.
- Set the adjustment lever (5) to the
"Raise" or "Lower" position.
- Raise the roof: The lever points for-
wards.
- Lower the roof: The lever points
backwards.
- Operate the pump lever (1) until the
roof has reached the upper or lower
limit position.
- Roof in uppermost position: Set the
locks (3) on both sides of the roof.
- Roof lowered: Set the lock (4) on
both sides of the roof.
"Pin lock" version (B)
- Connect the pump lever (1) to the
pump (2).
- Draw out pin (3) on both sides of the
roof.
- Operate the pump lever (1) until the
roof has reached the upper or lower
limit position.
- Set bolts (3) in the respective posi-
tion on both sides of the roof.
3
2
4
1
5
5
1
2
3
A
B
