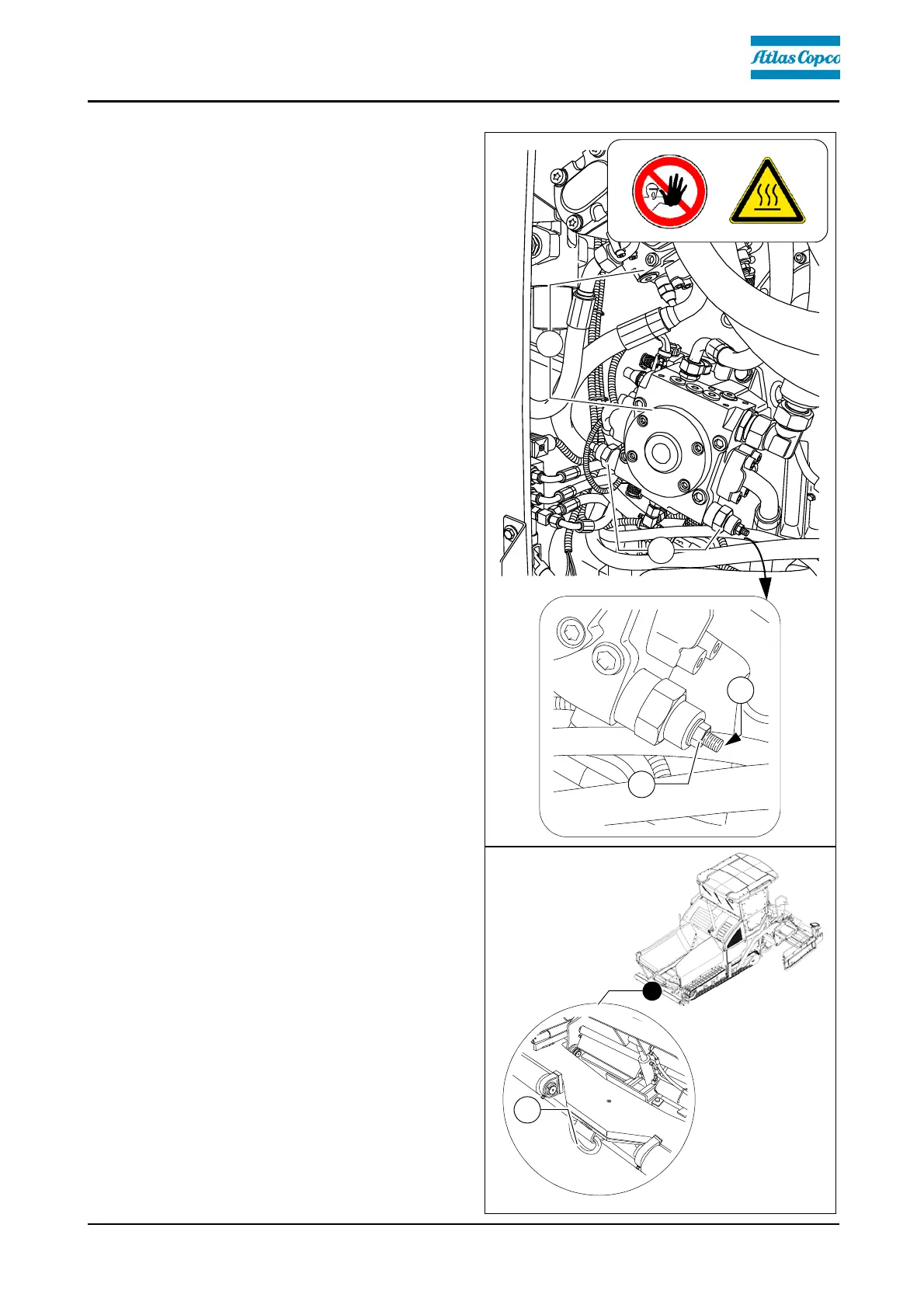

Two high-pressure cartridges (6) are
located on both of the travel drive
pumps (5).
The following activities must be carried
out to activate the towing function:
- Loosen lock nut (7) half a turn.
- Screw in the bolt (8) until increased re-
sistance occurs. Then screw the bolt a
further half turn into the high-pressure
cartridge.
- Tighten the lock nut (7) to a torque
of 22 Nm.
m
On completion of the towing process, re-
store the initial status.
- Attach the tow bar to the coupling (9)
located in the bumper.
A
Now carefully and slowly tow the paver
finisher out of
the construction area.
m
Only ever tow the shortest distance to
the means of transport or the next park-
ing possibility.
m
The max. permissible towing speed
is 10 m/min!
In hazardous situations, a towing speed
of 15 m/min is only permitted temporari-
ly.
m
The max. permissible towing eye (9)
load is: 200 kN
5
6
7
8
9
