160 Upgrade and Maintenance Manual
RX100 S8
Expansion cards and backup units
Example network adapter D2735

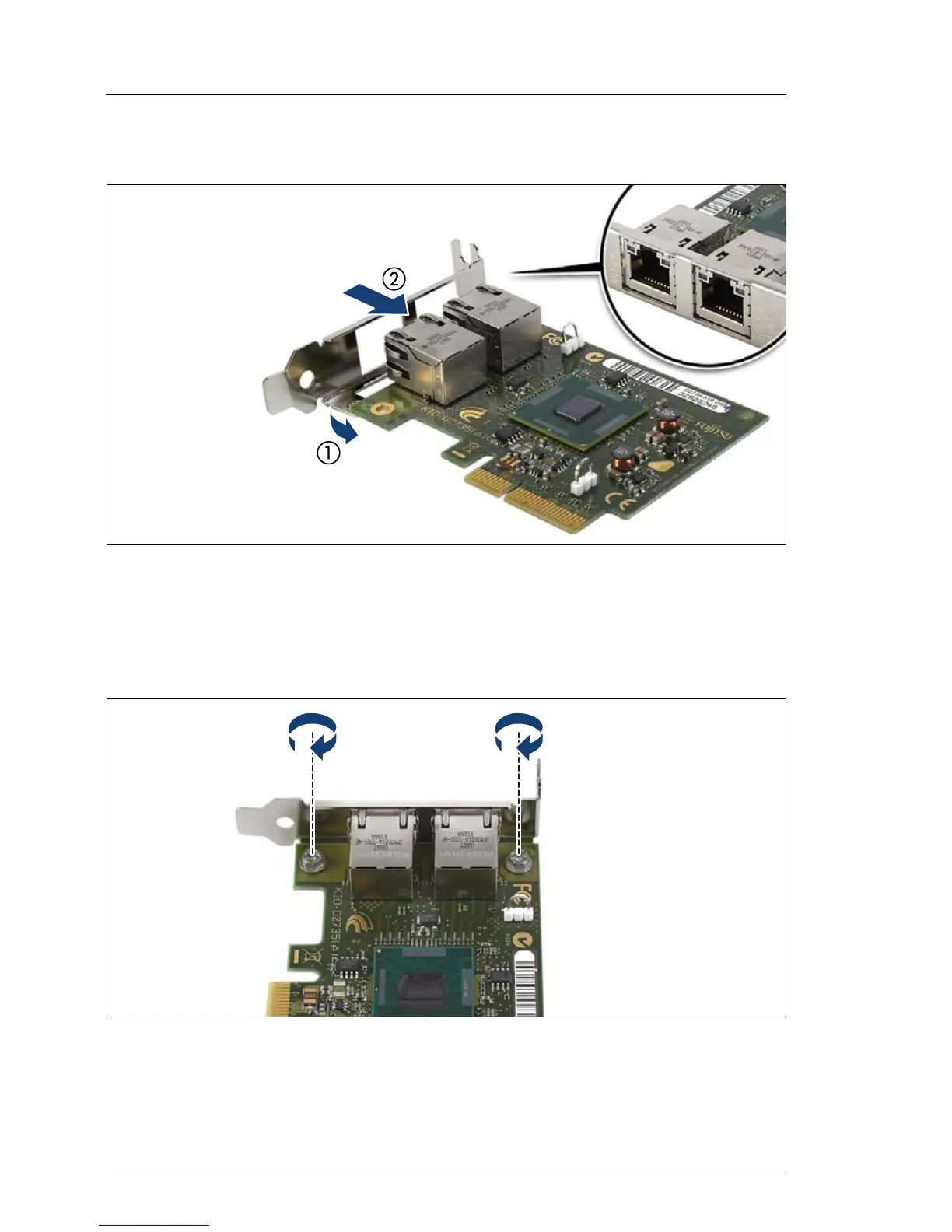

Figure 89: Placing the slot bracket - D2735
Ê Place the controller on the mounting tabs on the slot bracket (1).
Ê Carefully shift the slot bracket towards the controller (2) until the plug shells
engage with the cut-outs in the slot bracket connector panel (see circle).
Figure 90: Fastening the slot bracket - D2735
Ê Fasten the slot bracket to the controller with two M3 x 4.5 mm screws.
